Product Overview

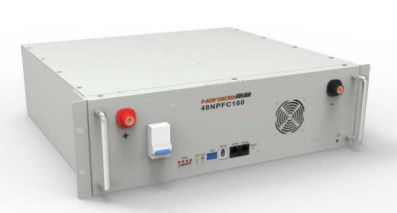

The Narada HELiION NPFC Series is professional rack-mounted LiFePO4 lithium battery developed by Narada Power specially for global telecom, data center and off-grid energy storage industry. Full range covers 48V 50Ah/100Ah/150Ah/200Ah mainstream specifications, standard 19-inch rack dimension for seamless installation inside existing communication power cabinet, direct drop-in replacement of traditional VRLA lead-acid battery without cabinet modification. Equipped full-set intelligent BMS management system supporting RS485/SNMP remote communication, ultra-long cycle life over 6000 times@80%DOD, lightweight design 40%-60% lighter than equivalent lead acid, widely applied in indoor/outdoor 4G/5G base station, FTTx pole cabinet, edge IDC and rural off-grid solar power projects.
Key Features
Standard 19-inch 2U/3U rack layout, multi-capacity optional(50/100/150/200Ah@48V), compatible all mainstream Vertiv/Huawei/ZTE telecom power shelves
Advanced LiFePO4 cathode material, ≥6000 deep cycles at 80% DOD, service lifespan over 8~10 years, far superior to conventional lead-acid battery
Integrated intelligent BMS: full protection of OVP/UVP/OTP/OCP/short circuit, cell active balance, RS485 dry contact remote alarm functionMPINarada
Ultra-lightweight, 40~60% weight reduction vs same-capacity AGM lead acid, reduce cabinet load and transportation cost
Wide temperature adaptability: Discharge -20℃~+60℃, Charge 0℃~+60℃, stable running for high-temperature outdoor unmanned cabinet
Plug & play design, directly replace original lead acid, no cabinet or rectifier parameter adjustment required
Full international certifications: UL1973, UL9540A, NEBS GR-1089, UN38.3, CE, comply global telecom safety standardMPINarada
Zero floating maintenance design, no regular water adding or acid inspection, cut later-period operation expense greatly南都蓄电池
Technical Specifications
| Item | Details |
| Model | NPFC Series(48NPFC50/100/150/200) |
| Brand | Narada Power HELiION |
| Nominal Voltage | 48VDC(54V floating charge) |
| Rated Capacity | 50/100/150/200Ah Optional |
| Cell Type | LiFePO4 Lithium Iron Phosphate |
| Max Charge/Discharge Current | 0.5C~1C |
| Cycle Life | ≥6000 Cycles @80% DOD,25℃ |
| Communication | RS485, Dry Contact Alarm |
| BMS Function | Cell balance, multi-layer electrical protection |
| Mount Size | Standard 19 Inch Rack |
| Working Temp | Discharge:-20~+60℃ / Charge:0~+60℃ |
| Certifications | UL1973,UL9540A,NEBS,UN38.3,CE |
| MOQ | 50 PCS |
| Monthly Supply | Customizable Bulk Output |
| Lead Time | 5~6 Weeks |
| Packing | Export Standard Carton |
| Warranty | 12 Months |
Applications
Indoor & Outdoor 4G/5G Macro & Micro Base Station DC Backup Power
FTTx Pole-mounted OLT Outdoor Cabinet Emergency Storage Battery
Edge Data Center & Small IDC Server Room UPS Backup System
Off-grid Solar/Wind Hybrid Energy Storage Power Supply
Railway & Security Monitoring Centralized Uninterrupted Power
Rural Remote Unmanned Communication Site Energy Transformation
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
