Product Overview

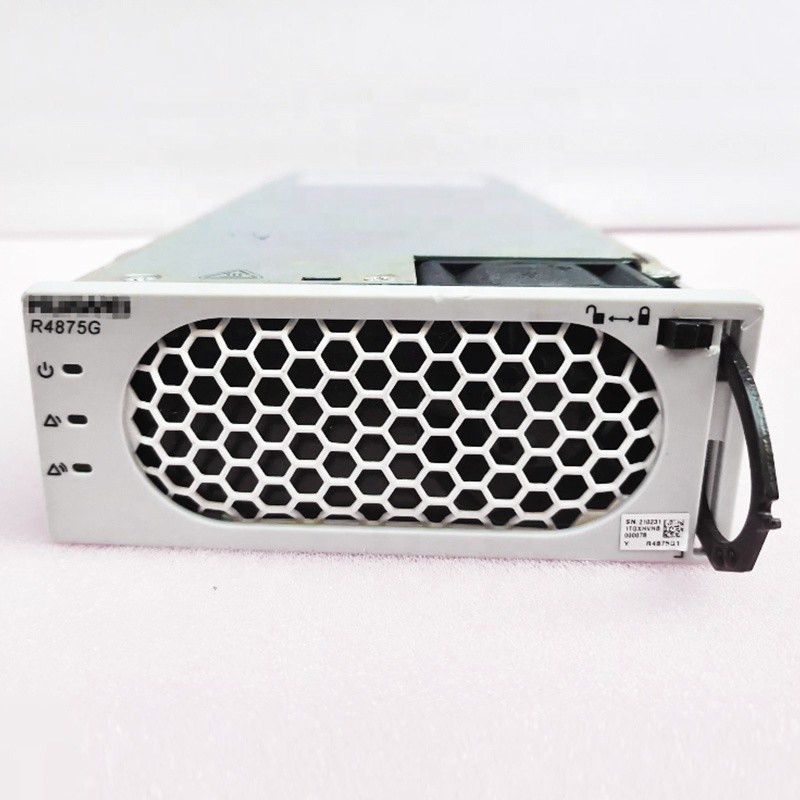

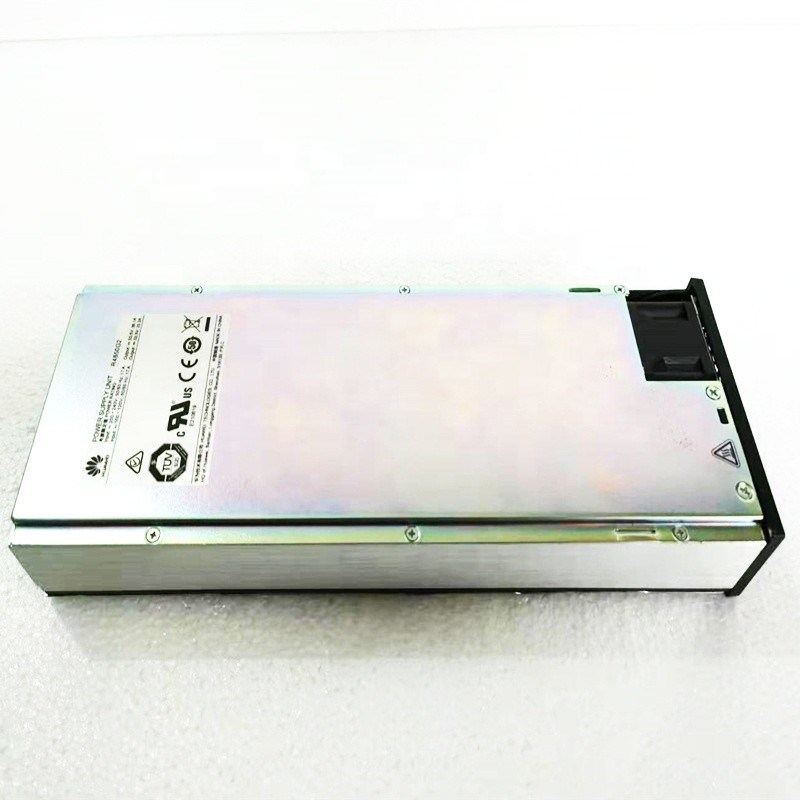

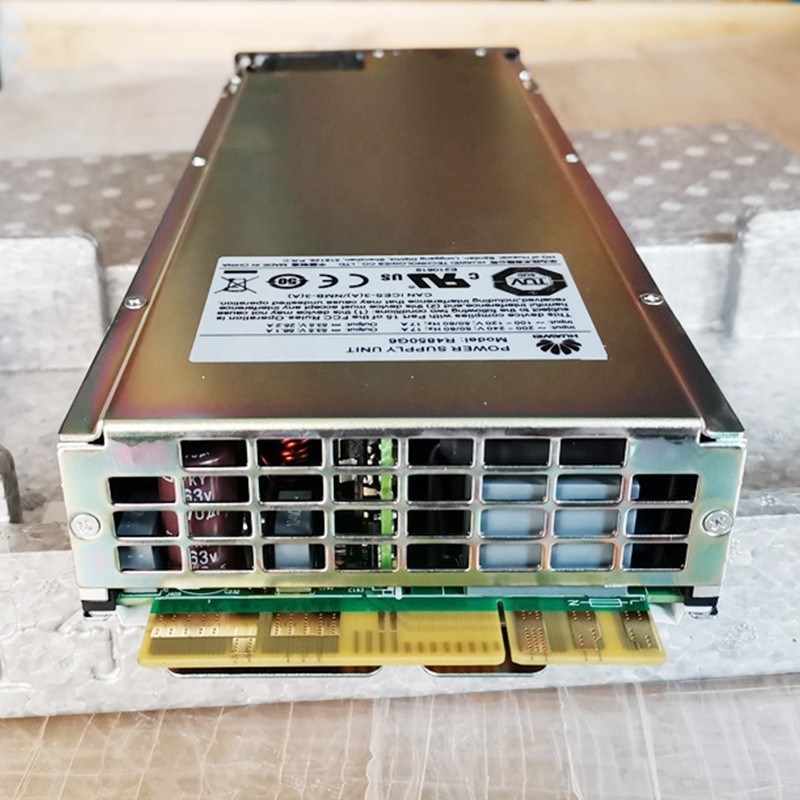

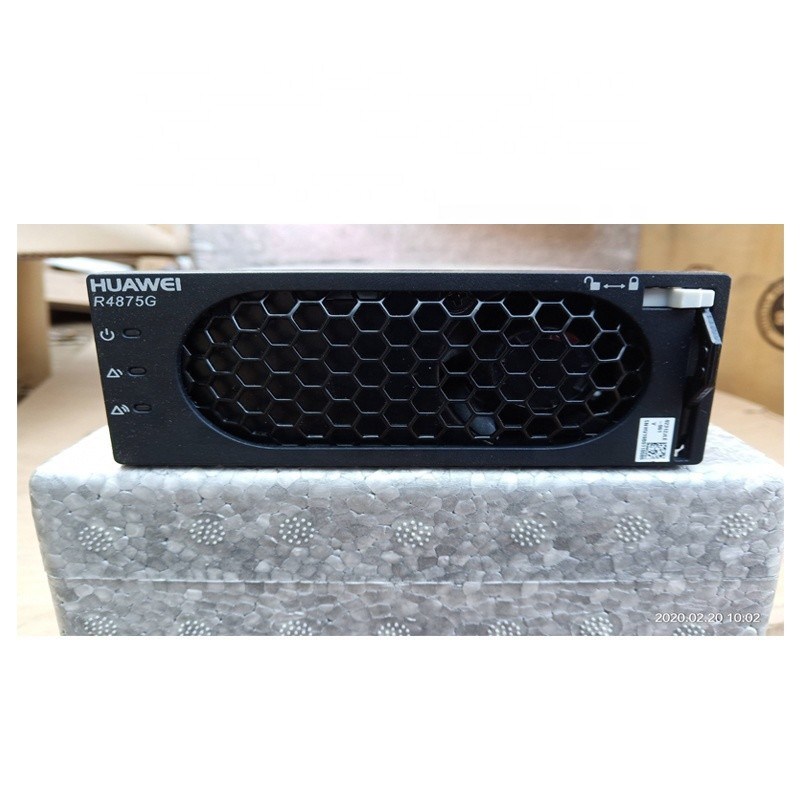

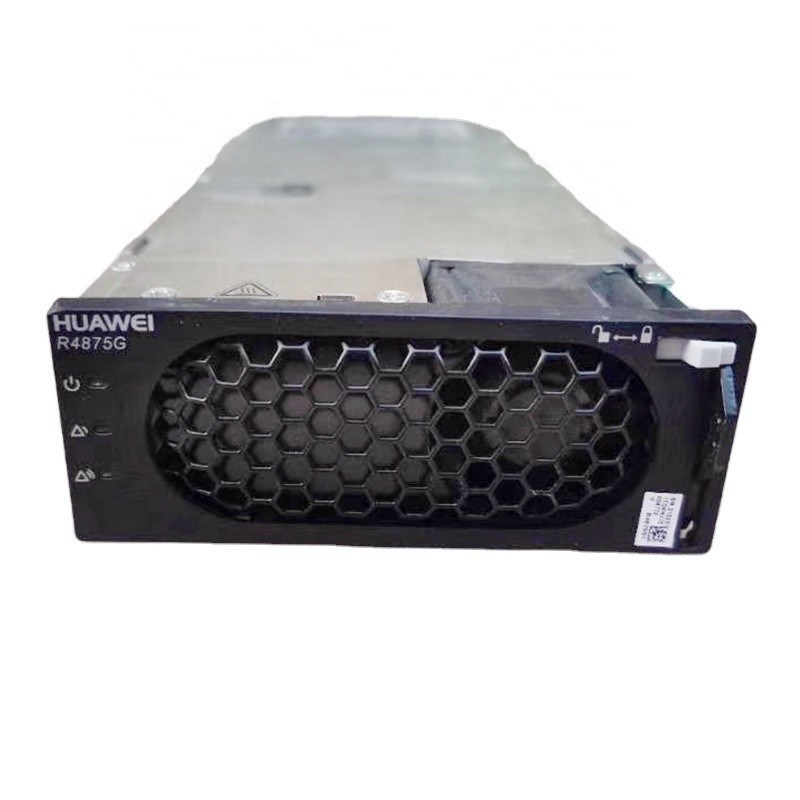

The Huawei R4875G1, R4875G and R4875G5 are 1U high-density full digital rectifier modules, specially developed for Huawei ETP series embedded power systems. With rated output of 4000W/75A at default 53.5VDC, they convert 85~300VAC wide-range single-phase AC into adjustable 42~58VDC standard telecom DC voltage. Adopts advanced LLC soft-switch topology and full digital control technology, the peak efficiency reaches 97%, full-load power factor ≥0.99 and THD≤5, delivering outstanding energy-saving performance. All models support front pull-out hot-swap design for maintenance without system shutdown. Equipped with CAN and RS485 dual communication interfaces, they realize real-time data monitoring, remote parameter setting and fault alarm with cabinet monitoring units. These high-power modules are widely applied in 4G/5G macro base stations, large FTTx OLT cabinets, data center DC power systems and old high-capacity telecom cabinet renovation projects.
Key Features
Ultra-wide AC input: 85~300VAC, 45~65Hz, compatible with global civil power grids and diesel generators, automatic power derating under low voltage
Adjustable DC output: 42~58VDC (default 53.5V), max 75A constant current, precise voltage regulation within ±0.5%
Excellent energy efficiency: Peak efficiency up to 97%, efficiency over 96% under 30%~80% load; full-load PF≥0.99, THD≤5% to cut long-term power consumption
1U compact structure & hot-swap design: Standard rack size, front pull-out plug-and-play, no need to power off during module replacement
Intelligent cooling: Built-in thermostatic variable speed fan, automatically adjust speed according to internal temperature, low noise and long service life
Comprehensive protection: Integrated OVP, UVP, OCP, SCP, OTP and lightning surge protection for full operational safety
Multiple communication: Support CAN bus and RS485 interfaces, compatible with Huawei monitoring platforms for remote management and multi-module automatic current sharing
Wide environment adaption: Working temperature -40℃ ~ +75℃, full power output below 55℃; max 500m full-power altitude, certified by CE, UL, TUV, FCC and RoHS
Technical Specifications
| Item | Details |
| Model | R4875G1 / R4875G / R4875G5 |
| Brand | Huawei |
| AC Input | 85~300VAC, 45~65Hz, Max 20A |
| DC Output | Adjustable 42~58VDC(Nom53.5V), Max75A/4000W |
| Peak Efficiency | Up to 97% |
| Full Load PF | ≥0.99 |
| THD | ≤5% |
| Dimension | 35×105×280mm |
| Net Weight | 3.3kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus + RS485 |
| Working Temp | -40℃ ~ +75℃(Full power below 55℃) |
| Max Full-power Altitude | ≤5000m |
| Certifications | CE, UL, TUV, FCC, RoHS |
| MOQ | 1 PCS |
| Unit Price | $109/PCS(1~199pcs) |
| Weekly Supply | 100PCS |
| Packing | Export Standard Carton |
| Warranty | 1-3 Years |
Applications
Huawei ETP Series High-density Telecom Cabinet Main Power Module
4G/5G Macro Base Station & Large Micro Cell DC Backup Power
Large-scale FTTx OLT and DSLAM Cabinet Embedded Power Supply
Data Center 48V DC Auxiliary Power System Configuration
Old High-capacity Communication Cabinet Capacity Expansion & Replacement
Industrial High-power 48V DC Power Matching Equipment
