Product Overview

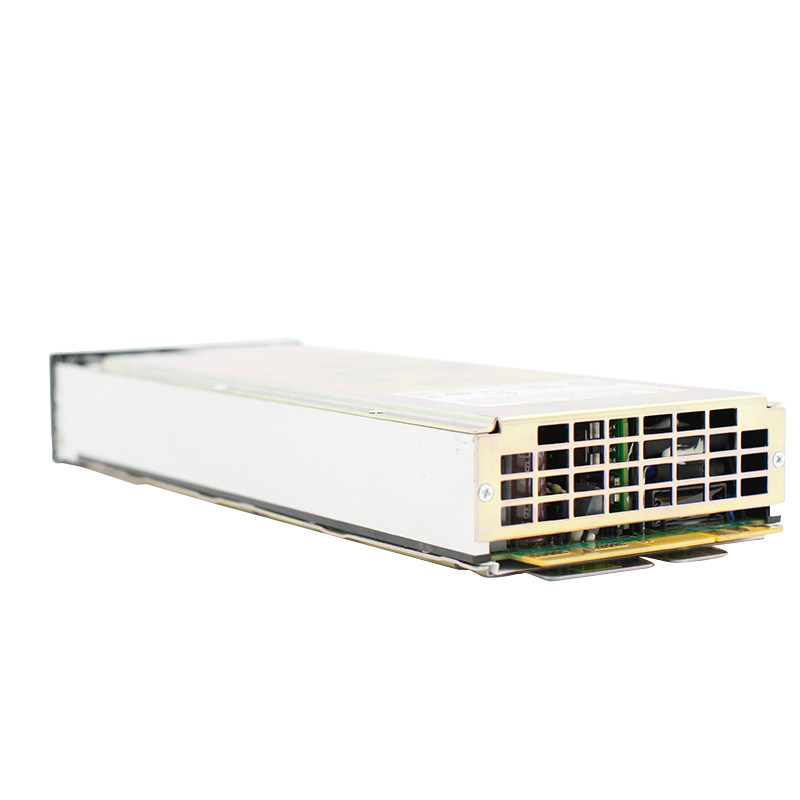

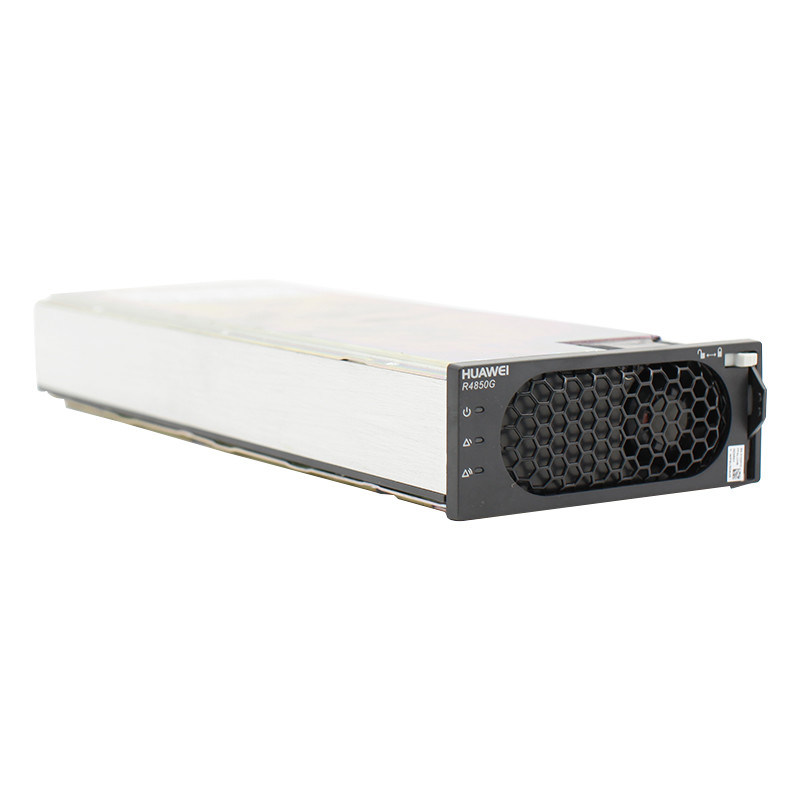

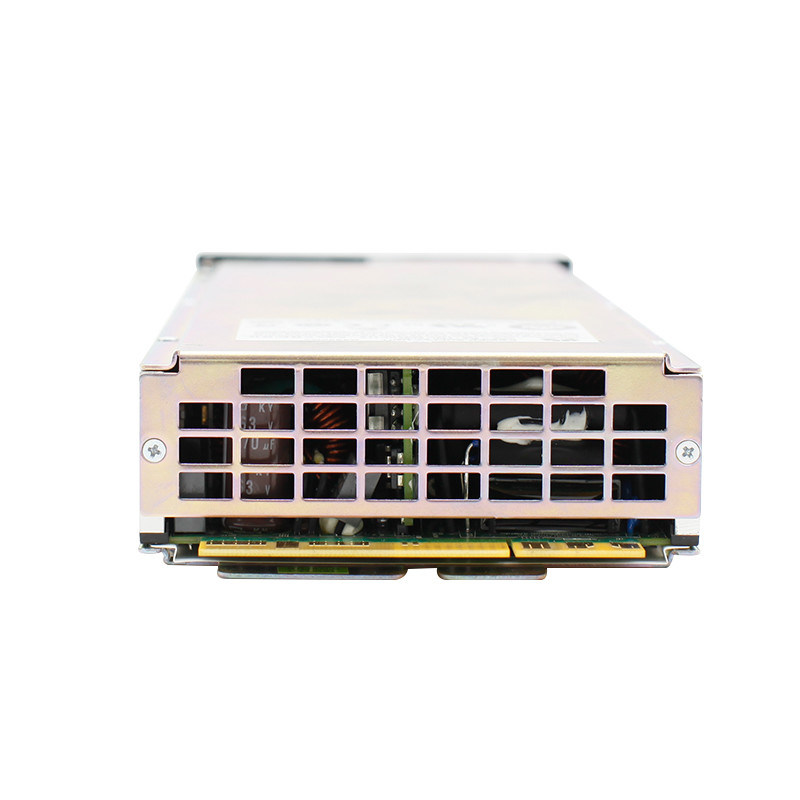

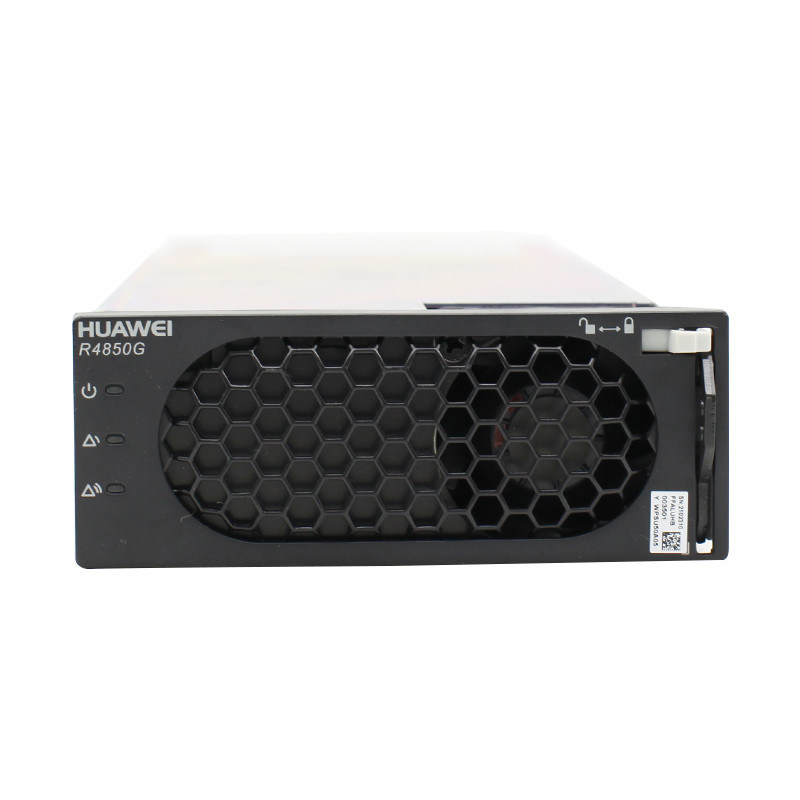

The Huawei R4850G2 (R4850G series) is digital high-frequency hot-swap rectifier specially engineered for Huawei ETP48200 embedded telecom power cabinet. Rated max 56.1A/3000W@53.5VDC, it converts wide-range single-phase 85~300VAC mains into adjustable 42~58VDC standard telecom voltage. Equipped mature active PFC and soft-switch technology, peak conversion efficiency ≥96%, full-load power factor ≥0.99 and low THD≤5%. Standard drawer hot-plug design allows online replacement without shutting down the whole power system; built-in CAN bus connects with cabinet monitoring unit for remote parameter setup and real fault reporting, widely used for FTTx OLT, DSLAM and indoor/outdoor 4G/5G micro base station power configuration and old cabinet renovation projects.
Key Features
Ultra-wide AC input:85~300VAC(45~66Hz, dual 110V/220V rated), adapt global unstable municipal grid and diesel generator power supply
Adjustable DC output:42~58VDC(default53.5VDC), max56.1A constant power, automatic power derating below 176VAC input
Active PFC design, full-load PF≥0.99, THD≤5%, peak efficiency ≥96% to lower long-term operating electricity cost
Full hot-swap plug-and-play structure, front pull-out design for rapid maintenance without system power cut-off
Intelligent thermostatic variable speed fan, auto fan speed based on inner temperature to reduce running noise and extend service life
Complete multi-protection:OVP/UVP/OCP/SCP/OTP plus AC input lightning surge protection for harsh sealed pole cabinet environment
CAN bus communication interface for real-time data upload, remote voltage/current adjustment via ETP48200 master monitor
Pass CE, TUV, UL, FCC, RoHS certification, stable -40℃~+75℃ operation, max 5000m full-power altitude
Technical Specifications
| Item | Details |
| Model | R4850G2 / R4850G |
| Brand | Huawei |
| AC Input | 85~300VAC,45~66Hz,Nominal110/220VAC,Max17A |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max56.1A/3000W |
| Peak Efficiency | ≥96% |
| Full Load PF | ≥0.99 |
| THD | ≤5% |
| Dimension | 90×250×390mm |
| Net Weight | 3.3kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -40℃ ~ +75℃ |
| Max Full-power Altitude | ≤5000m |
| Certifications | CE,TUV,UL,FCC,RoHS |
| MOQ | 1 PCS |
| Unit Price | $99.90/PCS(1~49pcs) |
| Weekly Supply | 100PCS |
| Packing | Export Standard Carton |
| Warranty | 3 Years |
Applications
Huawei ETP48200 Cabinet Matching FTTx OLT Embedded DC Power Supply
Indoor & Outdoor 4G/5G Micro Small Cell Backup Power Module
DSLAM Fiber Access Network Cabinet Rectifier Replacement
Pole-mounted Unmanned Outdoor Communication Cabinet Power Upgrade
Old ETP Series Power Cabinet Capacity Expansion Project
Mini Edge Data Room Auxiliary Uninterrupted DC Power
