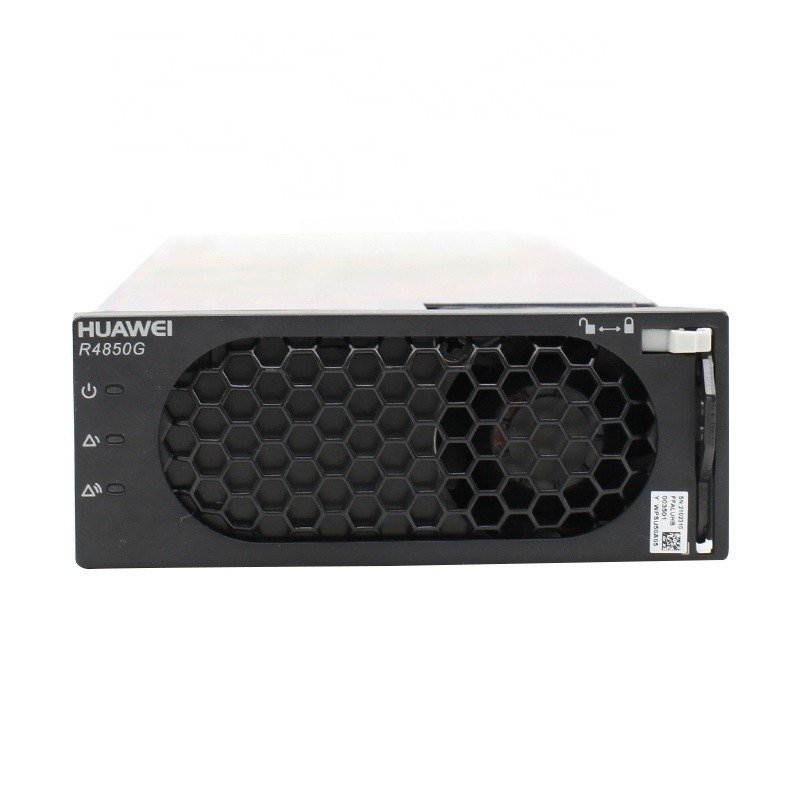

Product Overview
The Huawei R4850G1/R4850G2 is full digital high-frequency switching rectifier module specially developed for Huawei ETP4820 embedded telecom power system. Rated 3000W/56A max output @48VDC, it converts wide-range single-phase AC to adjustable 42~58VDC standard communication voltage(default53.5VDC). Adopts advanced LLC soft-switch + active PFC topology, peak conversion efficiency reaches over 96% with full-load PF≥0.99 and ultra-low THD≤5%. Standard drawer hot-swap pluggable design enables online replacement without powering off the whole cabinet, multiple modules parallel current sharing for flexible capacity expansion. Widely used in FTTx OLT, DSLAM cabinet and indoor/outdoor 4G/5G micro base station power configuration and old cabinet spare replacement projects.
Key Features
Ultra-wide AC input:85~300VAC(45~66Hz), dual input specification 100~120V/200~240V for global different grid environments
Adjustable DC output:42~58VDC(default53.5VDC), max continuous 56A@3000W, automatic power derating under low AC input voltage
Active PFC design, full-load PF≥0.99, THD≤5%, peak efficiency≥96% to lower long-term running power cost

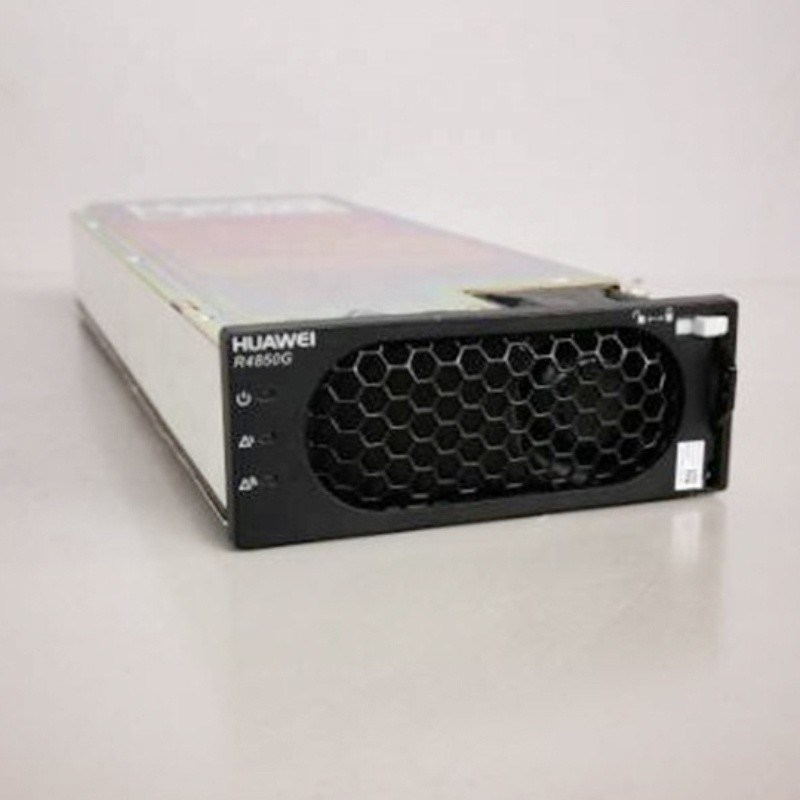

Full hot-swap plug-and-play construction, front pull-out structure for quick maintenance without system shutdown
Intelligent thermostatic variable speed fan, auto adjust rotating speed based internal temperature to reduce idle noise and extend fan service life
Built-in multi-layer safety protection: OVP/UVP/OCP/SCP/OTP plus input surge protection against unstable grid damage
CAN bus communication interface for real-time data linkage with ETP4820 monitoring unit, remote parameter setup & fault alarm upload
Pass CE, UL, TUV, RoHS international certifications, stable operation from -40℃ up to +75℃ wide ambient temperature
Technical Specifications
| Item | Details |
| Model | R4850G1 / R4850G2 |
| Brand | Huawei |

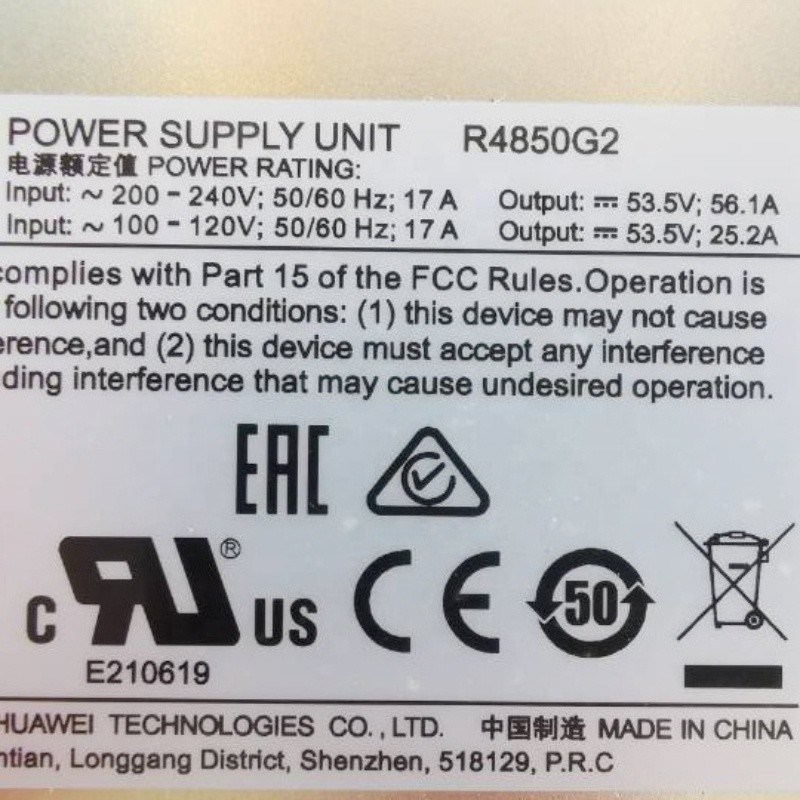

| AC Input | 85~300VAC,45~66Hz; Rated 100/220VAC,Max17A |
| DC Output | Adjustable42~58VDC(Nom53.5V),Max56A/3000W |
| Peak Efficiency | ≥96% |
| Full Load PF | ≥0.99 |
| THD | ≤5% |
| Dimension | 90×250×390mm |
| Net Weight | 3.3kg |
| Cooling | Intelligent Variable Speed Forced Air Cooling |
| Communication | CAN Bus |
| Working Temp | -40℃ ~ +75℃ |
| Certifications | CE,UL,TUV,RoHS |
| MOQ | 1 PCS |
| Unit Price | $100/PCS(1~49pcs) |
| Weekly Supply | 200PCS |
| Packing | Export Standard Carton |
| Warranty | 3 Years |
Applications
Huawei ETP4820 Matching FTTx OLT Cabinet Embedded DC Power
Indoor & Outdoor 4G/5G Micro Small Cell Base Station Backup Power
DSLAM Fiber Access Network Cabinet Rectifier Replacement
Pole-mounted Unmanned Outdoor Communication Cabinet Power Upgrade
Old Huawei ETP Series Power Cabinet Capacity Expansion Project
Mini Edge Data Room Auxiliary DC Power Source
