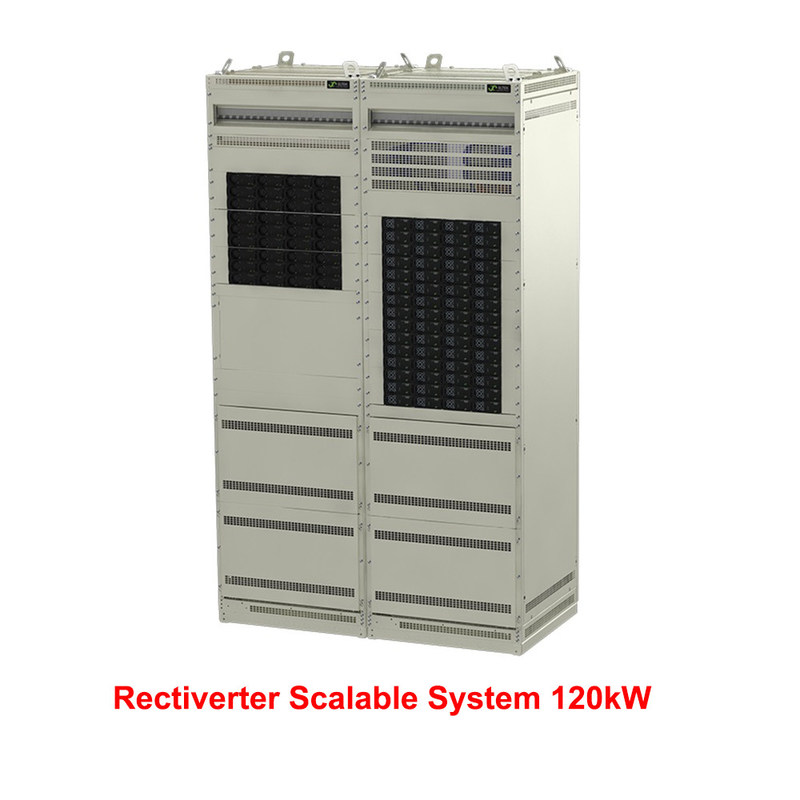

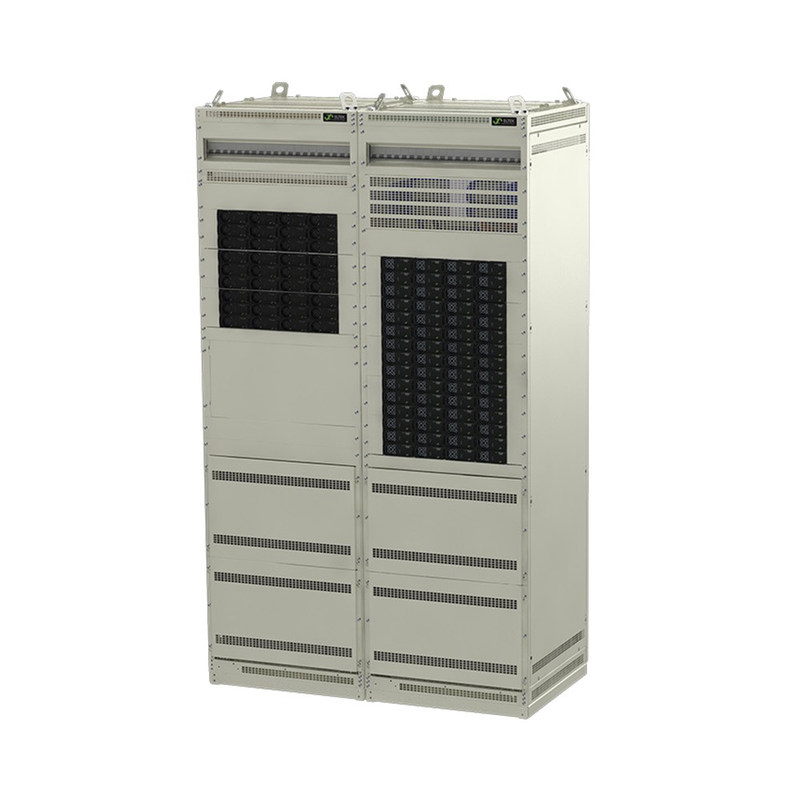

Eltek Rectiverter 120kW Scalable Integrated Power System (CDEJ6042)
Three-Port Integrated Design: Combines rectification and inversion functions, providing AC input, AC output and DC input/output ports to power AC loads, DC loads and charge batteries synchronously.

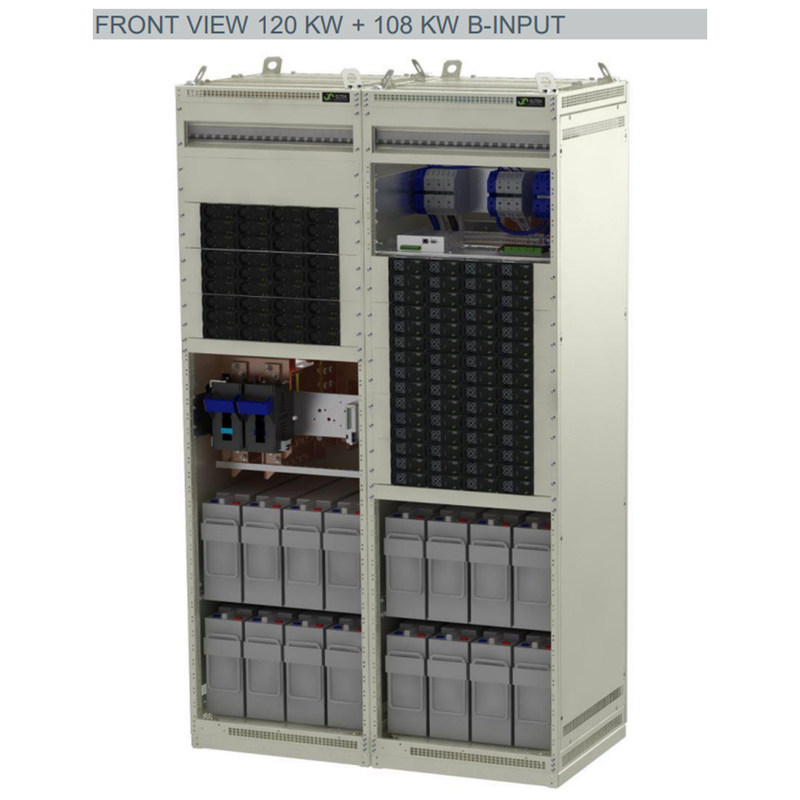

Optional Dual AC Input: A+B dual AC input configuration is available, eliminating traditional ATS equipment, improving power supply redundancy and system stability.
High Load Capacity: The overall system reaches 120kW, with maximum 90kVA (72kW) AC output and 72kW DC output to meet high-power load demands.
Excellent Overload & Short-Circuit Protection: Supports 150% overload for 15 seconds, and 600% quick trip current with a 20ms response for reliable fault protection.
Modular & Scalable: Modular architecture supports flexible capacity expansion, and works in parallel with Flatpack2 rectifiers to build large-scale power systems.
Hot-Plug Maintenance: Smartpack2 controller and core modules support hot plug, enabling non-stop replacement and reducing maintenance downtime.
Complete Distribution Configuration: Built-in AC and DC distribution circuits, compatible with up to 4 battery strings, and optional LVBD low-voltage disconnect function.
High Power Factor: Input power factor ≥0.99, effectively reducing reactive power loss and improving grid utilization.
Patented HE Technology: Adopts Eltek exclusive high-efficiency technology to lower energy consumption and heat generation during long-term operation.
Global Compliance: Compliant with international electrical and EMC standards, suitable for global project deployment.

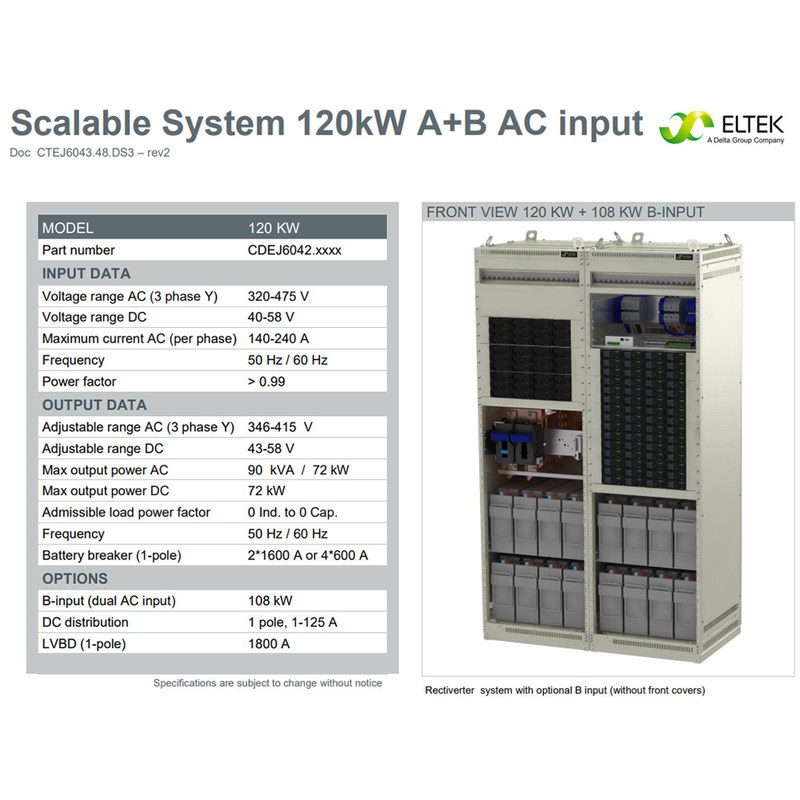

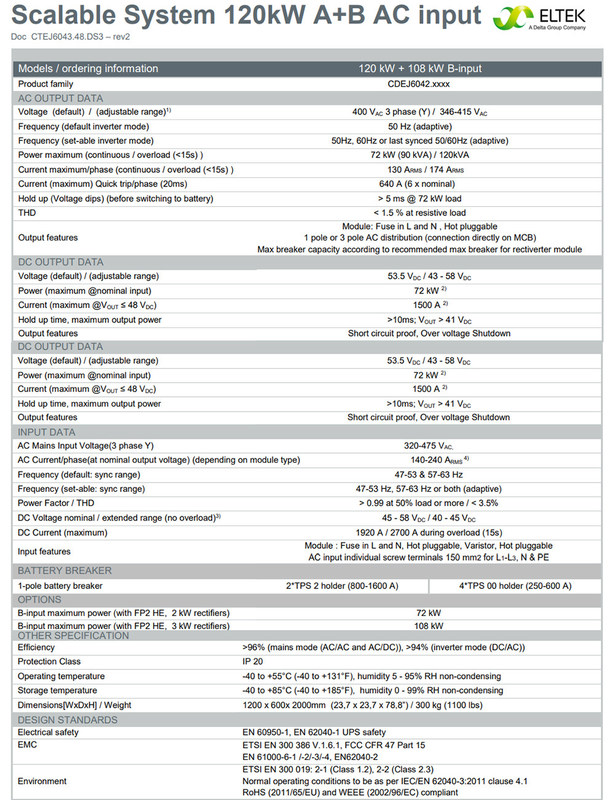

| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Integrated AC/DC Three-Port Power System |
| Model | Rectiverter Scalable System 120kW | |
| Part Number | CDEJ6042 | |
| Total System Power | 120kW | |
| AC Input | Input Type | 3-Phase Star Connection |
| Working Voltage | 320 ~ 475 VAC | |
| Max Voltage | 475 VAC | |
| Input Frequency | 45 ~ 60Hz | |
| Max Current (Per Phase) | 140 ~ 240A | |
| Power Factor | ≥ 0.99 | |
| Optional Configuration | A+B Dual AC Input (108kW) | |
| DC Input/Output | Working Voltage | 40 ~ 58 VDC |
| Adjustable Range | 43 ~ 58 VDC | |
| Max DC Input Current | 1920A | |
| Max DC Output Current | 1500A | |
| Max DC Output Power | 72kW | |
| AC Output | Adjustable Voltage | 346 ~ 415 VAC |
| Max Output Voltage | 415 VAC | |
| Max AC Power | 90kVA / 72kW | |
| Load Power Factor Range | Inductive 0 ~ Capacitive 0 | |
| Distribution & Protection | Battery Breaker | 2 × 1600A / 4 × 1600A |
| DC Distribution Breaker | 1-pole, 1 ~ 125A | |
| LVBD | Optional (1800A) | |
| Overload Capacity | 150% Load, 15s Duration | |
| Quick Trip Current | 600%, Response Time: 20ms | |
| Max Battery Strings | 4 sets | |
| Physical Parameters | Dimension (W×H×D) | 1200 × 2000 × 600 mm |
| Net Weight | 500kg | |
| Ingress Protection | IP20 | |
| Environment | Operating Temperature | -40℃ ~ +55℃ |
| Matching Devices | Controller | Smartpack2 (Hot Pluggable) |
| Compatible Modules | Flatpack2 Series Rectifiers | |
| Service | Warranty Period | 12 Months |
| Customization | OEM & ODM Supported |
Telecom Industry: 4G/5G base stations, distributed antenna systems, microwave communication, fiber broadband and telecommunication servers
Railway & Metro: Railway signal systems, GSM-R communication, track control and safety protection equipment
Power Utilities: Substation control systems, SCADA monitoring, emergency power and switchgear power supply
Industrial Fields: Large industrial UPS, factory central power distribution, unattended industrial stations
Large Data Centers: Centralized backup power, hybrid AC/DC power distribution systems
High Integration: Integrates rectifier, inverter and distribution units, simplifying system layout and reducing overall floor space.
Strong Redundancy: Optional dual AC input removes ATS costs, greatly improving power supply reliability for key loads.
Superior Protection Performance: Fast short-circuit trip and long-duration overload capability to cope with complex load changes.
Flexible Expansion: Modular design allows step-by-step capacity expansion, adapting to different power demands.
Easy O&M: Full hot-plug design lowers operation and maintenance risks and labor costs.
Energy Saving & High Efficiency: Patented HE technology and high power factor cut long-term operating costs.
Wide Compatibility: Perfectly matched with Flatpack2 rectifiers and Smartpack2 controllers for seamless system upgrade.
Customizable Service: Supports OEM and ODM to meet personalized project configuration requirements.
Q: What is the total power of this system? What are the AC and DC output ratings?
A: The total system power is 120kW. The maximum AC output is 90kVA (72kW), and the maximum DC output is 72kW.
Q: Does it support dual AC input?
A: Yes, A+B dual AC input is optional, which can replace traditional ATS to enhance power redundancy.
What are the input and voltage adjustment ranges?
A: AC input: 320~475VAC; AC output adjustable: 346~415VAC; DC input/output adjustable: 43~58VDC.
Q: What are the overload and short-circuit protection parameters?
A: It can withstand 150% overload for 15 seconds, and the 600% short-circuit current will trip within 20ms.
Q: Is the controller hot-pluggable?
A: Yes, the equipped Smartpack2 controller supports hot plug for convenient maintenance.
Q: What are the overall size and weight?
A: Dimensions: 1200 × 2000 × 600 mm, net weight: 500kg, IP20 protection grade.
Q: Can you provide customized services?
A: We support OEM and ODM customization to meet different project configuration needs.
