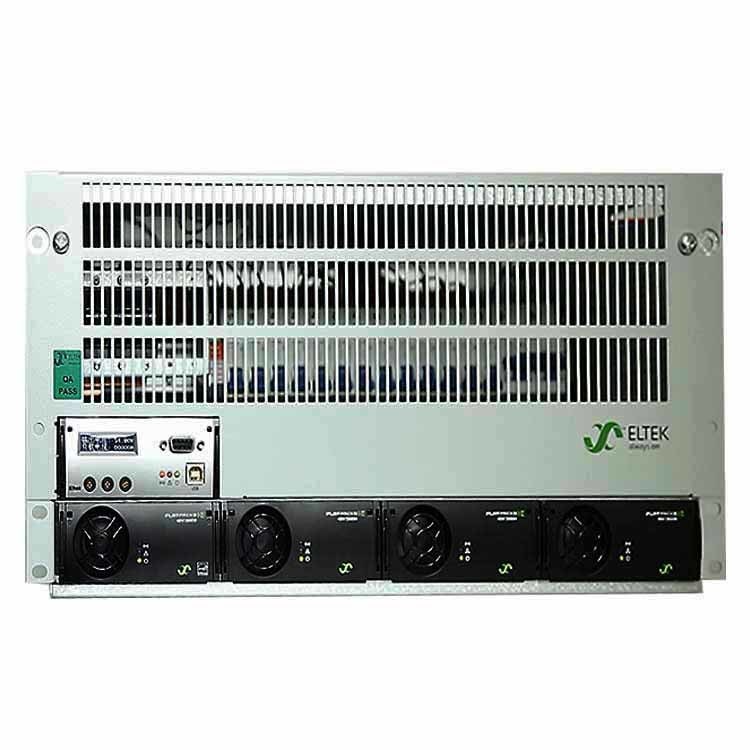

Eltek Flatpack2 PRS3000 48V 12KW Integrated Power Subrack (CTE30405.004)
High Power Output: 12KW total power, maximum 200A DC output current, fully meeting medium-to-high load power demands for telecom and industrial equipment.
Single-Phase Universal Input: Compatible with 230V single-phase AC, 45-66Hz wide frequency range, adapting to mainstream global power grids.
Complete Protection Configuration: Built-in LVD low-voltage disconnect function and multiple MCB breakers to prevent over-discharge and load faults.
Forced Cooling System: Equipped with high-efficiency built-in fan for forced convection, excellent heat dissipation to reduce overheating risks under continuous operation.
Integrated Design: Integrates rectifiers, controller and distribution units, simplifying on-site wiring and deployment.
Wide Environmental Adaptation: Operates normally at -33℃ to 55℃, storage temperature ranges from -40℃ to 70℃, suitable for indoor and semi-outdoor environments.
Altitude Adaptability: Stable performance at altitudes up to 3000m, applicable to plateau areas.
Standard Compatibility: Matches full series Flatpack2 rectifier modules for flexible capacity expansion.
Authoritative Certifications: Passes CE and ISO certifications, compliant with international quality and safety standards.
Customizable Service: Supports OEM logo customization to meet personalized brand demands.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Embedded Power Subrack |

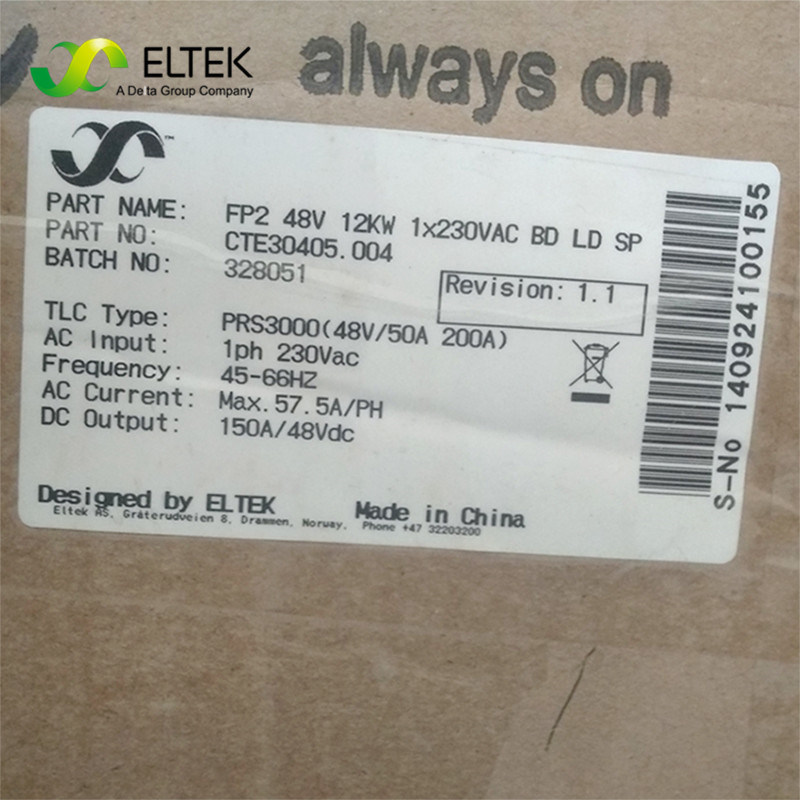

| Model | PRS3000 (48V/50A 200A) | |
| Part Number | CTE30405.004 | |
| Total Rated Power | 12KW | |
| AC Input | Input Phase | Single Phase |
| Nominal Voltage | 230VAC | |
| Input Frequency | 45 ~ 66Hz | |
| Max Input Current | 57.5A/Per Phase | |
| DC Output | Nominal Voltage | 48VDC |
| Max Output Current | 200A | |
| Standard Output Current | 150A | |
| Output Type | Multiple Output | |
| Protection & Cooling | Core Protection | LVD Low-Voltage Disconnect |
| Cooling Mode | Built-in Fan, Forced Convection | |

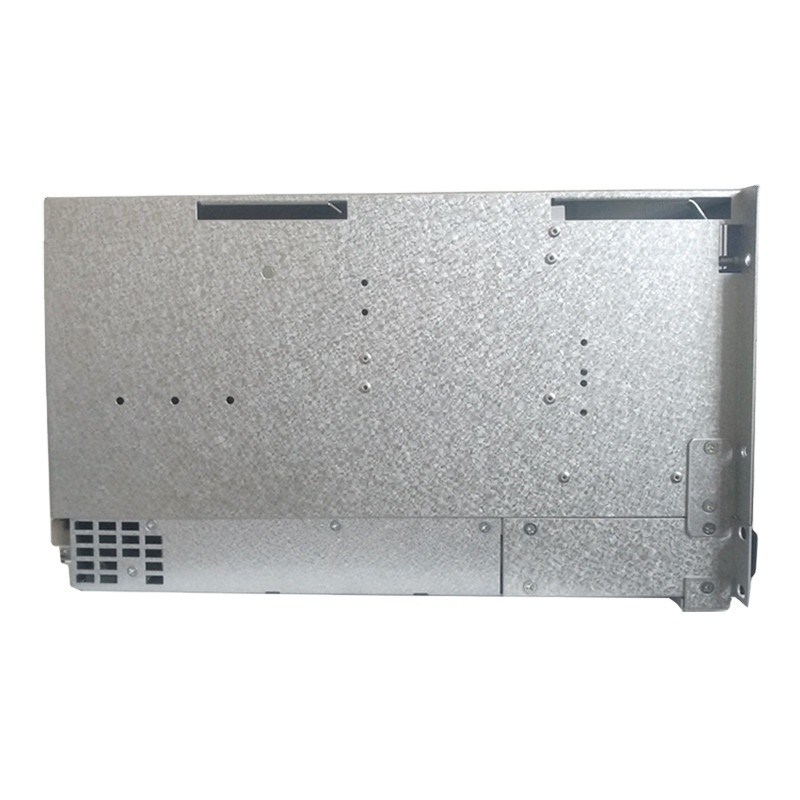

| Physical Parameters | Dimension (H×W×D) | 570 × 490 × 320 mm |
| Product Size (Internal) | 430 × 380 × 230 mm | |
| Net Weight | ＜25kg | |
| Environmental Parameters | Operating Temperature | -33℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Applicable Altitude | ＜3000m | |
| Trade Terms | MOQ | 2 pcs / 10 sets (bulk) |
| Certifications | CE, ISO | |
| Customization | OEM Logo Supported | |
| Warranty Period | 12 Months |
Telecom Industry: 4G/5G base stations, fiber access nodes, telecommunication server rooms, microwave communication equipment
Power Utilities: Substation control systems, SCADA monitoring devices, relay protection power supply
Industrial Fields: Factory automation equipment, unattended workshops, industrial monitoring power distribution
Data Facilities: Data center auxiliary power, rack-mounted DC power distribution units
Renovation Projects: Old telecom cabinets and legacy power system replacement & capacity expansion
High Integration: All-in-one design of rectifier, controller and distribution components saves cabinet space and short construction time.
Strong Load Capacity: 12KW high power and 200A large current output adapt to high-power equipment operation.
Reliable Heat Dissipation: Forced fan cooling ensures stable performance under 24-hour full-load operation.
Comprehensive Protection: LVD and multi-breaker configuration effectively protect batteries and loads from damage.
Excellent Environmental Resistance: Wide temperature range and altitude tolerance suit complex working conditions.
Easy Expansion: Compatible with Flatpack2 series modules for step-by-step capacity upgrade.
Cost-Effective: Original quality with competitive price, ideal for large-scale engineering procurement.
Flexible Customization: OEM service supports brand personalized configuration.
Q: What is the input and output specification?
A: Single-phase 230V AC input (45-66Hz), nominal 48VDC output, max current 200A and total power 12KW.
Q: What cooling method does this subrack adopt?
A: It uses built-in fan forced convection cooling for efficient heat dissipation.
Q: What is the operating temperature range?
A: Operating temperature: -33℃ ~ +55℃; Storage temperature: -40℃ ~ +70℃.
Q: What is the applicable altitude?
A: It can work normally in areas with altitude below 3000m.
Q: Does it support OEM customization?
A: Yes, we provide OEM logo customization service.
Q: What are the overall dimensions and weight?
A: External size: 570 × 490 × 320 mm, weight less than 25kg.
Q: What certifications does the product have?
A: It has passed CE and ISO international certifications.
