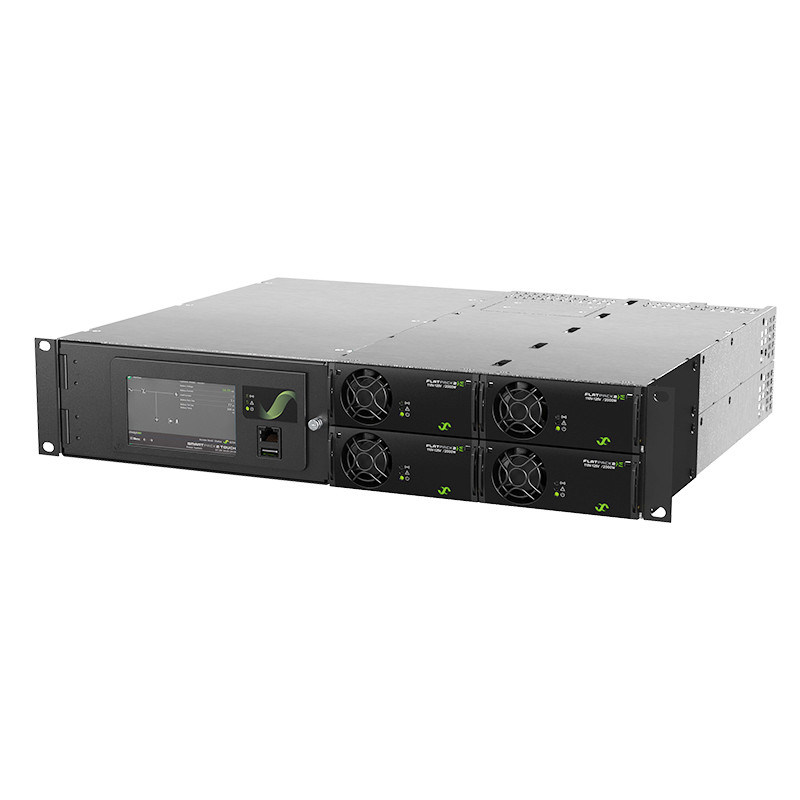

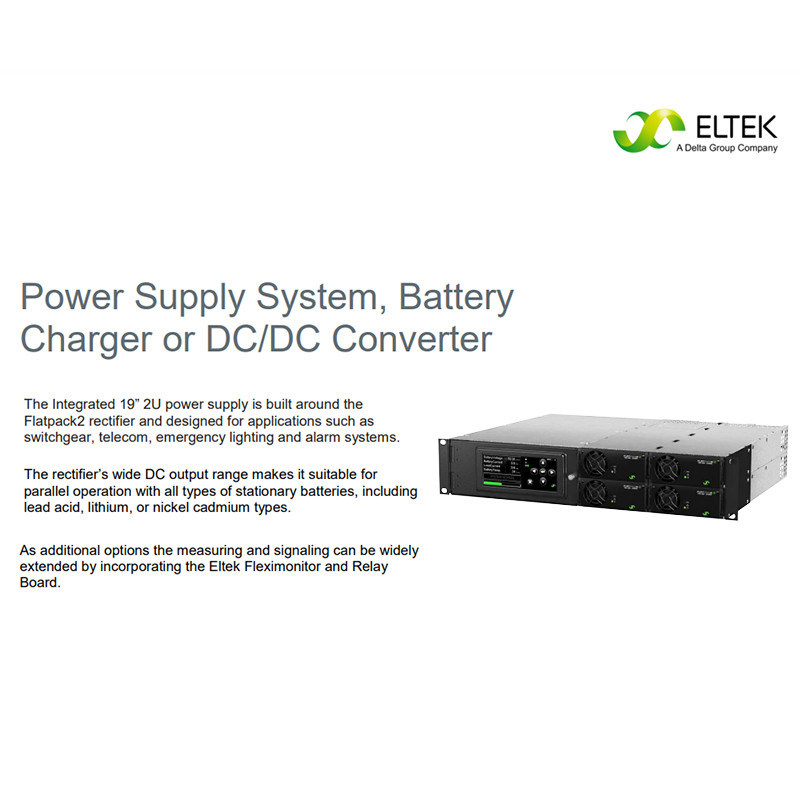

Eltek Flatpack2 Integrated 19" 2U Telecom Hybrid Power System
| Rectifier Model | Nominal Voltage | Output Voltage Range | Max Power | Max Current | Typical Efficiency | Output Protection |
|---|---|---|---|---|---|---|
| FP2 24/1800HE | 24VDC | 21.7-28.8VDC | 1800W | 75A | 95.4% | Fuse |
| FP2 48/2000SHE | 48VDC | 43.2-57.6VDC | 2000W | 41.7A | 98% | Blocking Diode |
| FP2 48/3000SHE | 48VDC | 43.2-57.6VDC | 3000W | 42.5A | 95% | Blocking Diode |
| FP 48/2000HE | 48VDC | 43.5-57.6VDC | 2000W | 41.7A | 96.2% | Blocking Diode |
| FP 48/3000HE | 48VDC | 43.5-57.6VDC | 3000W | 42.5A | 91% | Blocking Diode |
| FP 60/2000HE | 60VDC | 39.9-72VDC | 2000W | 35A | 94.4% | Fuse |
| FP 110/2000HE | 110VDC | 89.2-171.6VDC | 2000W | 16.7A | 94% | Fuse |
AC/DC Universal Input: 85~300V wide voltage range, compatible with 45-66Hz global grid frequency, strong adaptability to complex power environments.
Dual Voltage Series: Two main series (24-125V / 110-220V) for selection, covering multiple mainstream DC voltage requirements.
High Power Capacity: The 24-125V series supports up to 12kW output, and the 110-220V series reaches 8kW, meeting high-load application needs.
Modular Expansion: The cabinet holds maximum 4 FP2 rectifier modules, allowing flexible capacity expansion and on-site configuration.
Intelligent Touch Control: Built-in Smartpack2 touch controller with 3.2-inch high-resolution color screen for intuitive menu operation and parameter viewing.
Full Remote Management: Supports Ethernet, SNMP protocol and email alarm; realizes remote access, parameter setting and fault alert via web browser.
Rich Interfaces: Configurable digital relay outputs, multi-purpose analog/digital inputs, facilitating signal expansion and linkage.
High Efficiency & Low Loss: Matched with high-efficiency rectifiers, the overall efficiency is up to 98%, effectively reducing operating costs and heat generation.
Broad Battery Compatibility: Works with lead-acid, lithium, Ni-Cd and other stationary batteries for charging and parallel operation.
Standard Structure: 19-inch 2U rack design, easy installation, and IP20 protection for indoor use.

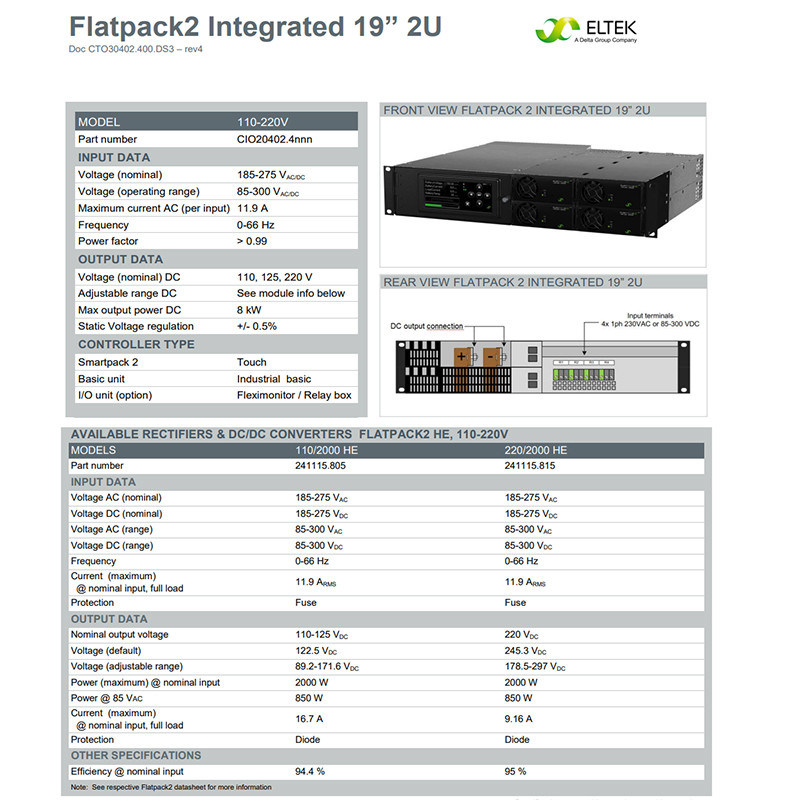

| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Integrated DC Power System (Rectifier & DC/DC Hybrid) |
| Model Series | 24-125V / 110-220V | |
| Part Number | CIO30402 (24-125V) / CIO20402 (110-220V) | |
| Matching Controller | Smartpack2 Touch / Smartpack2 Basic | |
| Input Parameters | Input Mode | AC / DC Dual Input |
| Input Voltage | 85 ~ 300 V | |
| Input Frequency | 45 ~ 66 Hz | |
| Power Factor | ＞0.99 | |
| Max Input Current (Per Phase) | 11.6 ~ 19.2A | |
| Output Parameters | 24-125V Series | Adjustable: 24~125VDC, Max Power: 12kW |
| 110-220V Series | Adjustable: 110~220VDC, Max Power: 8kW | |
| Static Voltage Regulation | ±0.5% | |
| Output Type | Single / Dual / Triple / Quad Multiple Output | |
| Max Output Current | 300A / 500A | |
| Communication & Function | Network Protocol | SNMP, Ethernet, SDK |
| Alarm Mode | Email Alarm, Relay Alarm | |
| Extended Module | Support Fleximonitor & Relay Board | |
| Physical Data | Dimension (24-125V) | 482 × 432 × 89 mm |
| Dimension (110-220V) | 482 × 470 × 89 mm | |
| Weight | 10kg (1 module) / 16kg (4 modules) | |
| Protection Class | IP20 | |
| Environment | Operating Temperature | -40℃ ~ +55℃ |
| Humidity | 5% ~ 95% (Non-condensing) | |
| Certifications | CE, ETSI, FCC, EN 60950-1 | |
| Trade Terms | Warranty | 12 Months |
| Customization | Software reengineering, OEM & ODM supported |

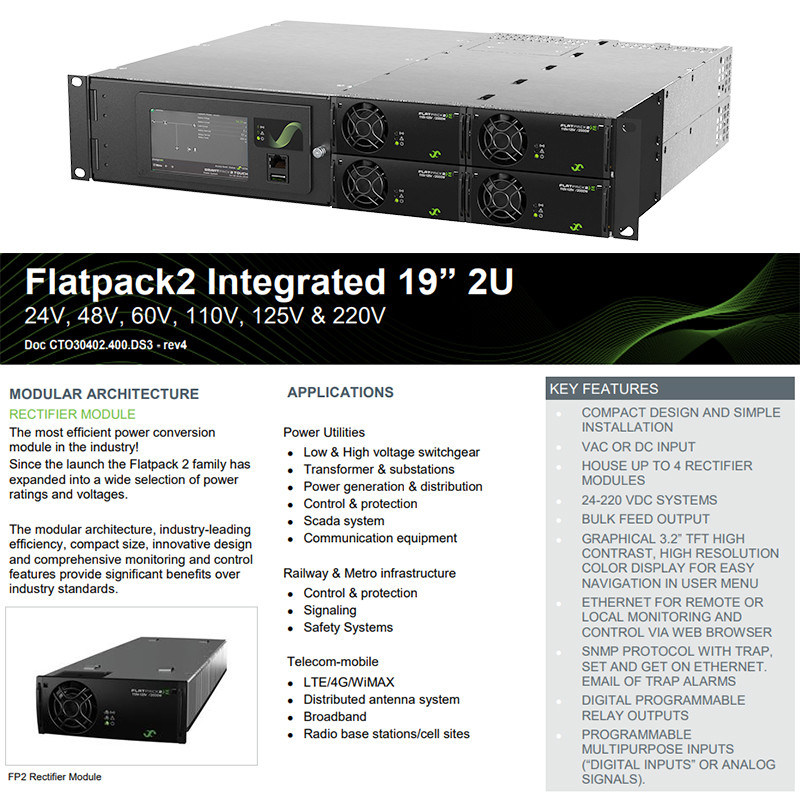

Telecom Industry: 4G/5G base stations, distributed antenna systems, microwave communication, broadband and telephony server rooms
Power Utilities: High/low voltage switchgears, transformers, substations, SCADA control and protection systems
Railway & Metro: Railway signal systems, safety protection equipment, track communication facilities
Public Facilities: Emergency lighting, fire alarm systems, public security monitoring power supply
Industrial Fields: Factory centralized power distribution, industrial control cabinets, unattended workshop power systems
High Integration: Integrates rectifier, DC-DC converter and monitoring unit, saving cabinet space and simplifying wiring.
Strong Compatibility: Matches full range of Flatpack2 rectifiers and various battery types, flexible for different projects.
Intelligent Management: Color touch screen plus multiple remote protocols, realizing all-round unattended monitoring.
Energy Saving: Ultra-high overall efficiency cuts long-term power consumption and equipment heat.
Flexible Expansion: Modular design supports step-by-step capacity increase, adapting to later capacity upgrade.
Stable Operation: Strict EMC and safety certifications, reliable for 24-hour continuous work.
Easy Maintenance: Standard rack structure and modular components, convenient for inspection and part replacement.
Customizable: Supports software modification and personalized configuration to meet special project demands.
Q: What input voltage does this system support?
A: It supports 85~300V AC and DC dual input, and adapts to 45-66Hz frequency.
Q: What are the two voltage series?
A: One is 24-125VDC series with max 12kW power; the other is 110-220VDC series with max 8kW power.
Q: Does it support remote monitoring?
A: Yes, it is equipped with Ethernet and SNMP protocols, supporting web access, remote setting and email alarm.
Q: How many rectifier modules can be installed?
A: The cabinet can hold up to 4 Flatpack2 series rectifier modules for combined use.
What controller is equipped?
A: Standard Smartpack2 Touch color touch controller, and Smartpack2 Basic is optional.
Q: What certifications does it have?
A: It has passed CE, FCC, ETSI and EN 60950-1 safety certifications.
Q: Can software functions be customized?
A: Yes, we support software reengineering and personalized function customization.
