Eltek Flatpack2 380V/3000W HE UI Rectifier Module (241119.825)

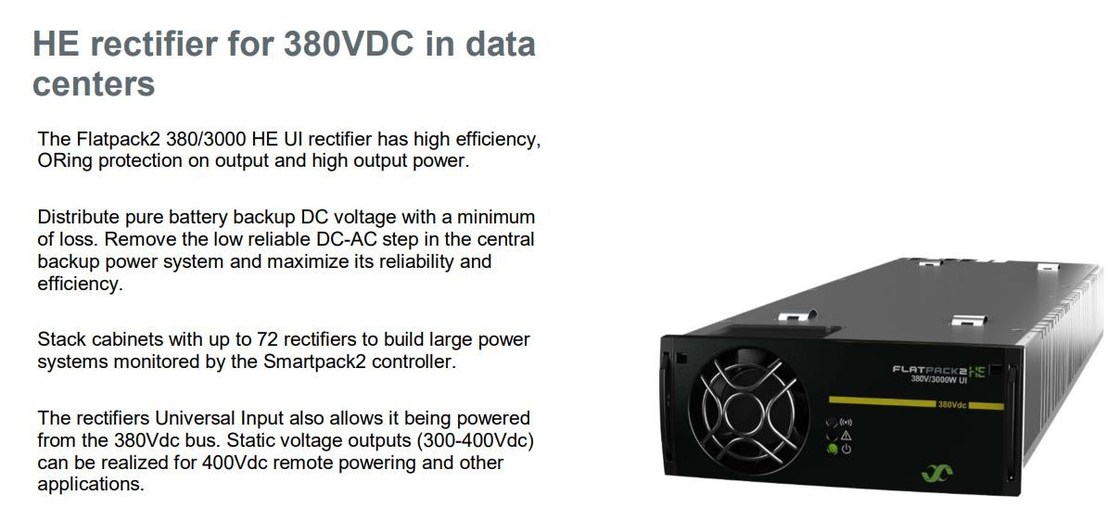

Ultra High Efficiency & Power Density: 96.2% peak conversion efficiency and 33 W/inch³ high power density, low heat generation and energy-saving operation.
Universal Wide Input: Compatible with 85~305V AC input, adapting to various regional power grids and voltage fluctuations.
Adjustable DC Output: DC output ranges from 300VDC to 400VDC, meeting the requirements of 380VDC remote power supply and different load devices.
Output OR-ing Protection: Prevents reverse current damage and ensures safe parallel operation of multiple modules.
Hot Plug Support: Realizes non-stop maintenance, MTTR less than 5 minutes, effectively reducing equipment downtime.
Large-Scale Expansion: A single cabinet can accommodate up to 72 rectifiers, supporting the construction of high-capacity centralized power systems.
Intelligent Monitoring Matching: Perfectly works with Smartpack2 controller to realize unified monitoring, parameter configuration and fault alarm.
Wide Temperature Resistance: Stable operation at -40°F ~ 167°F (-40℃ ~ +75℃), suitable for indoor machine rooms and semi-outdoor environments.
Compact Structure: Standard modular size, easy for cabinet installation and layout.

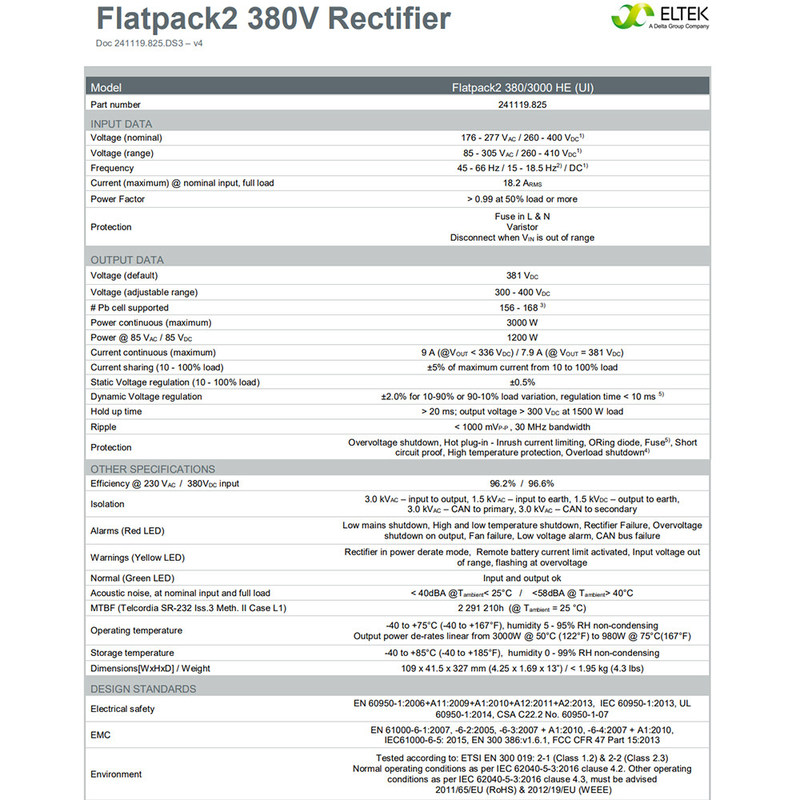

| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Switching Rectifier Module |
| Model | Flatpack2 380V/3000W HE UI | |
| Part Number | 241119.825 | |
| AC Input | Input Voltage | 85 ~ 305 VAC |
| DC Output | Rated Power | 3000W |
| Max Output Current | 9A DC | |
| Adjustable Output Voltage | 300 ~ 400 VDC | |
| Conversion Efficiency | 96.2% | |
| Physical Parameters | Dimension (W×H×D) | 109 × 41.5 × 327 mm |
| Weight | 4.3 lbs | |
| Environment | Operating Temperature | -40 ~ 167 °F (-40℃ ~ +75℃) |
| Core Functions | Protection | Output OR-ing Protection |
| Maintenance | Hot Plug, MTTR ＜ 5 Minutes | |
| Expansion | Max 72 modules per cabinet | |
| Matching Controller | Smartpack2 |
Data Centers: Central battery backup systems, HVDC power distribution, front-end power conversion equipment
Telecommunications: Telecom central offices, large switching equipment, remote power feeding systems
Industrial Fields: HVDC UPS, industrial centralized power supply, power distribution stations
Other Industries: Large-scale equipment backup power, remote power supply projects
High Energy Saving Performance: 96.2% high efficiency cuts long-term power consumption and operating costs.
Simplified Power Architecture: Eliminates intermediate DC-AC conversion links and enhances system reliability.
Flexible Expansion: Supports large-scale module combination to meet high-capacity power demands.
Easy Maintenance: Hot plug design allows quick replacement without powering off the whole system.
Strong Adaptability: Wide input voltage and wide temperature range suit diverse application environments.
Complete Protection: Output OR-ing protection avoids reverse current risks for parallel modules.
Intelligent Management: Matches dedicated controller to realize centralized monitoring and remote management.
Q: What is the efficiency of this rectifier module?
A: The conversion efficiency reaches up to 96.2%.
Q: What is the input and output voltage range?
A: AC input: 85~305V; DC output is adjustable from 300VDC to 400VDC.
Q: Does it support hot plug?
A: Yes, it is hot pluggable, and the maintenance time is less than 5 minutes.
Q: How many modules can be installed in one cabinet at most?
A: A single cabinet can hold up to 72 modules for large power system construction.
Q: What controller does it match?
A: It is compatible with Smartpack2 controller for unified monitoring.
Q: What are the size and weight of the module?
A: Dimension: 109 × 41.5 × 327 mm, weight: 4.3 lbs.
Q: What main scenarios is this product used for?
A: It is mainly applied to data centers, telecom central offices and industrial HVDC power systems.
