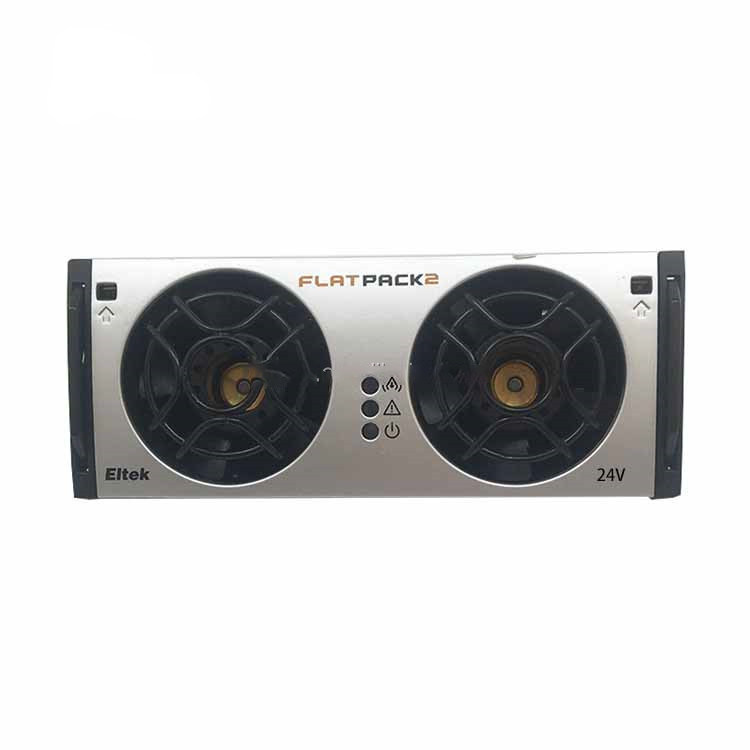

Eltek Flatpack2 24/2000 Rectifier Module (241115.200)
Wide Grid Adaptability: 100-250VAC wide input range and 45-65Hz universal frequency, stable operation under normal voltage fluctuations.
Adjustable DC Output: Output voltage ranges from 24V to 26.7V, which can be flexibly adjusted to match different battery packs and load requirements.
High Power Output: Rated power reaches 2000W and maximum output current is 50A, meeting medium and high load power demands.
Dual Output Design: Dual output terminals expand the power supply capacity and support multiple devices to work at the same time.
Built-in Safety Protection: Equipped with AC fuse, varistor transient protection, overvoltage, overcurrent and over-temperature protection to effectively avoid equipment damage.
High Power Factor: Optimized circuit design ensures high power factor, reducing reactive power loss and improving power utilization.
Standard Specification: Standard module size, compatible with most Flatpack2 series power cabinets, convenient for equipment replacement and system expansion.
Authoritative Certifications: Passed CE and RoHS certifications, compliant with international electrical and environmental standards for global delivery.
Stable & Durable: Strict production and testing procedures, low failure rate, suitable for 24-hour uninterrupted operation.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | AC-DC Rectifier Module |
| Model | Flatpack2 24/2000 | |
| Part Number | 241115.200 | |
| Brand | ELTEK | |
| AC Input | Nominal Voltage | 220VAC |
| Operating Range | 100 ~ 250 VAC | |
| Input Frequency | 45 ~ 65 Hz | |
| Max Input Current | 13.5A | |
| AC Fuse | 15A | |
| DC Output | Adjustable Voltage | 24 ~ 26.7 VDC |
| Rated Power | 2000W | |
| Max Output Current | 50A | |
| Output Type | Dual | |
| Physical Parameters | Dimension (W×H×D) | 40 × 105 × 325 mm |
| Net Weight | 2.8kg / 3kg | |
| Certifications | CE, RoHS | |
| Trade Terms | MOQ | 1 piece |
| Warranty Period | 12 Months |
Telecom Industry: 24V communication base stations, signal transmission equipment, remote communication nodes
Power Utilities: Substation control cabinets, relay protection devices, emergency lighting systems
Industrial Fields: Industrial control equipment, automation systems, factory DC power distribution
Marine & Offshore: Onboard auxiliary power, offshore platform control equipment
General DC Systems: 24V battery charging racks, rack-mounted backup power, integrated power cabinets
Wide Compatibility: Matches global mainstream AC power grids, applicable to projects in different countries and regions.
Flexible Voltage Regulation: 24-26.7V adjustable output, perfectly compatible with various 24V lead-acid and lithium batteries.
Multi-Load Support: Dual output design improves equipment utilization and saves cabinet space.
Complete Protection: Multiple protection functions enhance the safety of the whole system and extend service life.
Easy Maintenance: Standard modular design, simple disassembly and replacement, reducing maintenance difficulty.
Global Compliance: CE and RoHS certifications ensure compliance with international access requirements.
Cost-Effective: Original quality with reasonable price, ideal for bulk procurement and project renovation.
Q: What is the AC input range of this module?
A: The AC input voltage is 100~250V, and the applicable frequency is 45-65Hz.
Q: Can the DC output voltage be adjusted?
A: Yes, the DC output voltage can be adjusted from 24V to 26.7V.
Q: What is the rated power and maximum current?
A: The rated power is 2000W, and the maximum output current is 50A.
Q: What certifications does the product have?
A: It has passed CE and RoHS certifications.
Q: What are the size and weight?
A: Dimensions: 40 × 105 × 325 mm, net weight: 2.8kg / 3kg.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece, supporting sample and small-batch orders.
Q: What scenarios is it mainly used for?
A: It is widely used in telecom equipment, power utilities, industrial control and other 24V DC power supply systems.
