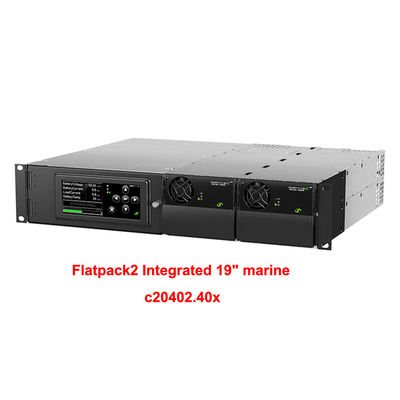

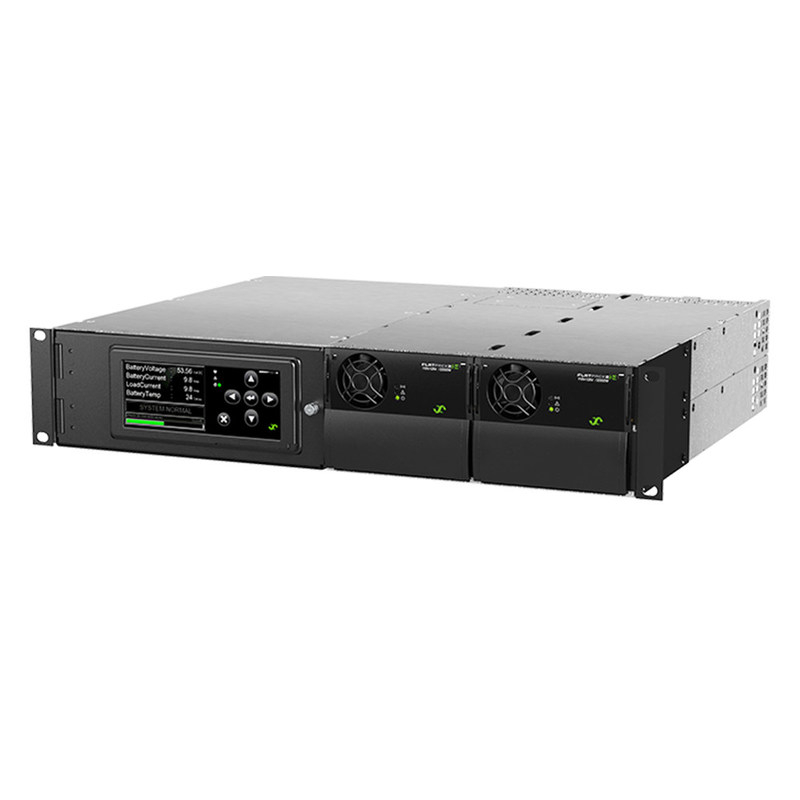

Eltek Flatpack2 19-inch 2U Marine Integrated DC Power System
| Model | Voltage Range | Efficiency | Max Current | Output Protection |
|---|---|---|---|---|
| FP2 24/1800HE (241115.205m) | 21.7-28.8VDC | ＞95% | 75A | Fuse Protection |
| FP2 24/2000HE (241115.200m) | 21-29VDC | ＞89% | 84A | Blocking Diode Protection |
| FP2 24/2000 WOR (241115.250m) | 21.5-36VDC | ＞91% | 70A | Fuse Protection |
AC/DC Dual Input: 85~300V wide-range AC and DC compatible input, adapting to complex power supply environments on ships and offshore platforms.
High Power Density: 2U compact design with maximum 8kW output, saving cabinet space and meeting high-load power demands.
Multiple Output Options: Triple output design, compatible with three types of mainstream Flatpack2 rectifiers, flexible for different load configurations.
High Conversion Efficiency: Up to 94% overall efficiency, effectively reducing heat generation and long-term operating costs.
Digital Intelligent Control: Matched with Smartpack2 controller, supporting comprehensive monitoring, parameter configuration and fault alarm.
Rich Communication Functions: Built-in SDK and NFC interfaces, facilitating data interaction and remote management.
Strong Environmental Resistance: Works reliably at -40℃ ~ +75℃, resistant to damp and salt fog in marine environments.
Complete Protection Mechanism: Equipped with fuse, blocking diode and multiple protection modes to ensure system operational safety.
Global Certification: Complies with UL 60950-1 standard, meeting international marine and electrical safety requirements.
Customizable Service: Supports software reengineering to realize personalized function development according to project needs.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | 19-inch 2U Rack-mounted Integrated DC Power System |
| Application Scenario | Marine / Offshore | |
| Mounting Standard | 19-inch Rack (2U) | |
| Input | Input Mode | AC / DC Dual Input |
| Input Voltage Range | 85 ~ 300V | |
| Input Frequency | 55 ~ 65Hz | |
| Output | Max Output Power | 8kW |
| Max Output Voltage | 122.5VDC | |
| Output Type | Triple | |
| Matching Output Current | 75A / 84A / 70A | |
| Overall Efficiency | 94% | |
| Communication & Customization | Communication Interface | SDK, NFC |
| Custom Function | Software Reengineering Supported | |
| Physical Parameters | Dimension (W×H×D) | 482 × 89 × 432 mm |
| Net Weight | 5kg | |
| Environment | Operating Temperature | -40℃ ~ +75℃ |
| Certification | Safety Standard | UL 60950-1 |
| Service | Warranty Period | 12 Months |
Marine Industry: Shipborne communication equipment, ship control systems, vessel auxiliary power distribution
Offshore Facilities: Offshore platform power supply, offshore monitoring and automation systems
Power Utilities: Substation control cabinets, high and medium voltage switchgear power supply
Industrial Fields: Coastal industrial equipment, unattended outdoor power stations
Telecom: Coastal communication base stations and remote signal nodes
Marine Specialized Design: Optimized for damp, salt fog and other harsh marine environments, with strong durability.
Wide Compatibility: Supports three classic Flatpack2 rectifier modules for free combination and flexible capacity expansion.
Dual Input Adaptability: AC/DC universal input suits various power access modes of offshore and marine sites.
Intelligent Management: Digital controller plus multi-communication interfaces realize centralized and remote monitoring.
Space-Saving Structure: 2U slim body is easy to deploy in standard marine cabinets.
Reliable Protection: Diversified protection configurations match different rectifiers to fully guarantee equipment safety.
Certified Quality: UL certified, compliant with international marine electrical specifications for global project use.
Personalized Customization: Software reengineering service meets differentiated project function demands.
Q: What is the input voltage range of this power system?
A: It supports 85~300V AC/DC dual input, and the applicable frequency is 55-65Hz.
Q: What is the maximum power and output voltage?
A: The maximum output power is 8kW, and the maximum output voltage is 122.5VDC.
Q: Which rectifier modules can be matched?
A: It is compatible with FP2 24/1800HE, FP2 24/2000HE and FP2 24/2000 WOR rectifier modules.
Q: Does it support communication and software customization?
A: Yes, it is equipped with SDK and NFC interfaces, and supports software reengineering and customization.
Q: What are the size and weight?
A: Dimensions: 482 × 89 × 432 mm, net weight: 5kg, standard 2U rack size.
Q: What certification does the product have?
A: It has passed UL 60950-1 safety certification.
Q: What is the working temperature range?
A: The operating temperature is -40℃ ~ +75℃, suitable for harsh marine environments.
