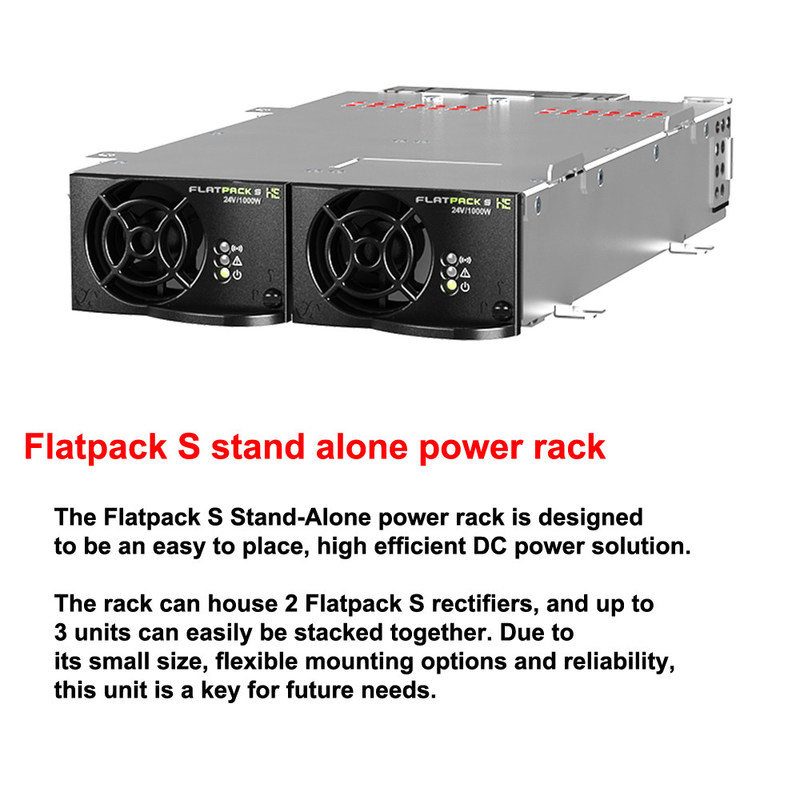

Eltek Flatpack S Stand-Alone Power Rack (P/N: 241122.902)
Module Compatibility: Specially customized for Flatpack S full-series rectifiers such as 24V/1000W, 36V/1000W and 48V/1000W HE modules, holding up to two rectifiers at the same time.
Stackable Expansion: Flexible stacking design allows up to three racks to be combined, easily expanding the overall power capacity according to project demands.
Dual Input Support: Compatible with 300VAC max single-phase AC input and 400VDC max DC input, adapting to diverse power supply environments.
Hot Plug Friendly: Fully matched with hot-pluggable Flatpack S rectifiers, realizing non-stop module replacement and reducing maintenance downtime.
External Controller Option: Supports external installation of Compack, Smartpack S and Smartpack2 controllers to realize intelligent monitoring and parameter management.
Convenient Wiring: Equipped with flying leads for simple and fast connection, simplifying on-site wiring work.
Compact & Lightweight: Small overall dimensions and only 0.91kg weight, easy to carry, install and relocate.
High Load Capacity: Max output power reaches 3.6kW with 85A output current, meeting medium-power load requirements.
Wide Frequency Adaptation: Works stably within 55-65Hz frequency range, matching global mainstream power grid standards.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | Stand-Alone Rectifier Power Rack |
| Model | Flatpack S Stand-Alone Power Rack | |
| Part Number | 241122.902 | |
| Applicable Modules | Flatpack S 24V/1000W, 36V/1000W, 48V/1000W HE Rectifiers | |
| Input Parameters | Max AC Input | 300VAC (230V Single Phase) |
| Max DC Input | 400VDC | |
| Input Frequency | 55 ~ 65Hz | |
| Output Parameters | Nominal Output Voltage | 60VDC |
| Max Output Current | 85A | |
| Max Output Power | 3.6kW (3600W) | |
| Output Type | Single | |
| Physical Data | Dimension (W×H×D) | 48.9 × 172 × 274 mm |
| Imperial Size | 1.93 × 6.77 × 10.79 inch | |
| Net Weight | 0.91 kg | |
| Structural Features | Module Quantity | Max 2 rectifiers per rack |
| Stacking Limit | Up to 3 racks stacked together | |
| Matching Controller | Compack, Smartpack S, Smartpack2 (External) | |
| Wiring Mode | Flying leads for easy connection | |
| Service | Warranty Period | 12 Months |
Telecom Industry: Outdoor communication nodes, remote base stations and auxiliary DC power distribution systems
Industrial Automation: Factory control systems, production line power supply and industrial monitoring equipment
Offshore & Marine: Offshore platforms, shipboard safety and automation systems
Power Utilities: Substation auxiliary power, signal and protection equipment power supply
Custom Power Systems: Combined DC power solutions for small and medium-sized equipment rooms
Strong Compatibility: Perfect match with multiple Flatpack S rectifier modules and mainstream controllers, convenient for existing system renovation.
Flexible Expansion: Stackable structure allows gradual capacity expansion, saving early investment costs.
Easy Installation & Use: Lightweight body and flying lead design simplify wiring and installation steps.
High Operational Efficiency: Cooperates with high-efficiency rectifiers to reduce overall heat generation and power consumption.
Low Maintenance Cost: Compatible with hot plug modules, no need to shut down during maintenance.
Wide Adaptability: AC/DC dual input and wide frequency range suit various regional power grids.
Space-Saving: Compact size and shallow depth, ideal for narrow installation spaces.
Q: How many rectifier modules can this rack hold?
A: It can install up to 2 pieces of Flatpack S series rectifier modules.
Q: Can multiple racks be stacked for use?
A: Yes, a maximum of 3 racks can be stacked together to expand power capacity.
Q: What are the input and output specifications?
A: Max AC input 300V, max DC input 400V; nominal output 60VDC, max power 3.6kW, max current 85A.
Q: What controllers is it compatible with?
A: It supports external Compack, Smartpack S and Smartpack2 controllers.
Q: What are the dimensions and weight?
A: Size: 48.9 × 172 × 274 mm, weight: 0.91kg, light and compact.
Q: Is it suitable for hot plug rectifiers?
A: Yes, it is fully adapted to hot-pluggable Flatpack S rectifiers.
Q: What is the warranty period?
A: The warranty is 12 months.
