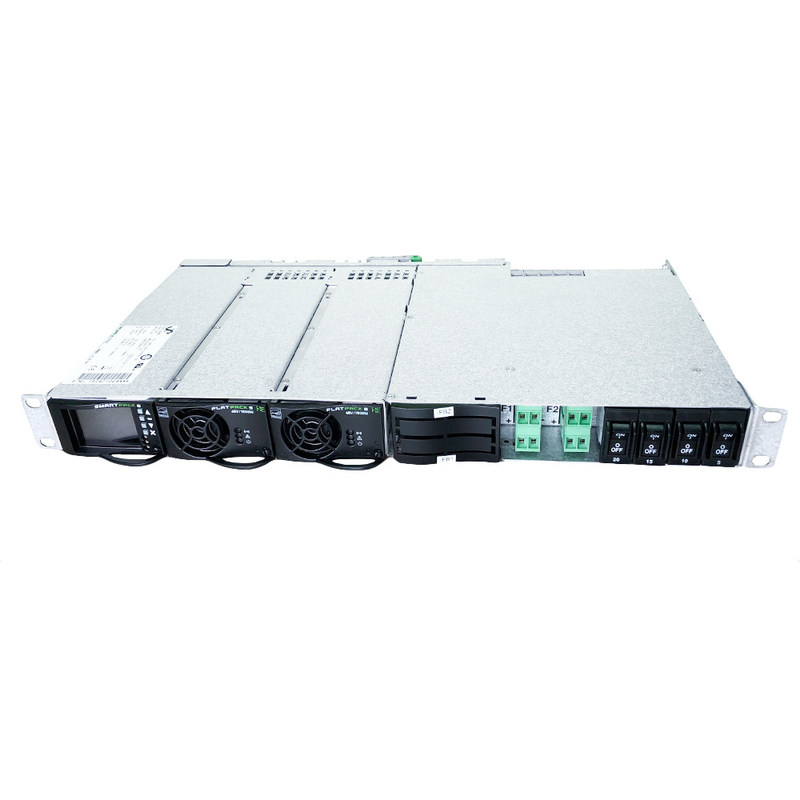

Eltek Flatpack S 1U Power Supply (MFGS0201.003)
1U Ultra-Compact Structure: Standard 19-inch 1U rack size (482.5×44.1×250mm), space-saving and compatible with all mainstream server and telecom cabinets.
Wide AC Input Range: Works with 100~250V AC, nominal 230V, 45-66Hz frequency, adapting to global power grid fluctuations.
Integrated All-in-One Design: Integrates rectifier, Smartpack S controller, battery and load distribution circuits for plug-and-play use.
Full Hot Plug Function: Hot-pluggable rectifier and controller modules, realizing non-stop replacement and low maintenance downtime.
Complete Protection Configuration: Equipped with default LVBD battery protection and 2×40A pluggable breakers to safeguard batteries and loads.
Intelligent Monitoring: Embedded Ethernet port supports remote data viewing, parameter setting and fault alarm for unattended management.
Reliable Wiring Design: Rear terminal block connection (2.5mm² wire specification), neat wiring and strong connection stability.
High Operational Stability: Mature circuit design, low heat generation and long service life for 24/7 continuous operation.
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | 1U Rack-mounted Telecom Power System |
| Model | Flatpack S 1U FPS 48V 2KW 230VAC BD | |
| Part Number | MFGS0201.003 | |
| Matched Controller | Smartpack S | |
| AC Input | Nominal Voltage | 230VAC |
| Operating Range | 100 ~ 250VAC | |
| Input Frequency | 45 ~ 66Hz | |
| Wiring Terminal | 2.5mm² Terminal Block (Rear Connection) | |
| DC Output | Nominal Voltage | -48VDC |
| Rated Power | 2KW | |
| Max Output Current | 40A | |
| Distribution & Protection | Battery Protection | Default LVBD |
| Main Breaker | 2 × 40A Pluggable Breakers | |
| Physical Parameters | Dimension (W×H×D) | 482.5 × 44.1 × 250 mm |
| Net Weight | 4.5kg | |
| Network Interface | Ethernet (Remote Monitoring Supported) | |
| Service | Warranty Period | 12 Months |
Telecom Industry: 4G/5G base stations, fiber access nodes, signal transmission equipment
Server Rooms: Rack servers, network switches, data center auxiliary power supply
Network Equipment: Enterprise communication cabinets, industrial network devices
Outdoor Cabinets: Integrated power for outdoor telecom cabinets
Industrial Sites: Unattended monitoring equipment, industrial control power supply
Space Efficient: 1U slim design maximizes cabinet space utilization, ideal for dense server racks.
Easy Deployment: All-in-one integrated structure requires no extra matching modules, simplifying on-site installation.
Low Maintenance: Hot plug design eliminates power cut during module replacement, reducing operation risks and labor costs.
Wide Grid Adaptation: 100-250V wide input fits power standards of different regions.
Full Protection: Multiple breakers and LV function effectively extend battery and equipment service life.
Remote Management: Ethernet port enables centralized remote monitoring, suitable for large-scale network projects.
Durable Performance: Strict factory testing ensures stable long-term operation under full load.
Q: What is the overall size and weight of this 1U power supply?
A: Dimensions: 482.5 × 44.1 × 250 mm, net weight: 4.5kg, standard 19-inch 1U rack mounting.
Q: What are the input and output parameters?
A: AC input 100-250V (nominal 230V), 45-66Hz; DC output -48V, rated power 2KW, max current 40A.
Q: Does it support hot plug?
A: Yes, both rectifier and Smartpack S controller support hot plug for non-stop maintenance.
Q: What protection features does it have?
A: It is equipped with default LVBD battery protection and 2×40A pluggable breakers.
Q: Can I monitor the device remotely?
A: Yes, the built-in Ethernet port supports remote monitoring and fault alerts.
Q: What is the warranty term?
A: 12 months official warranty.
