Product Overview

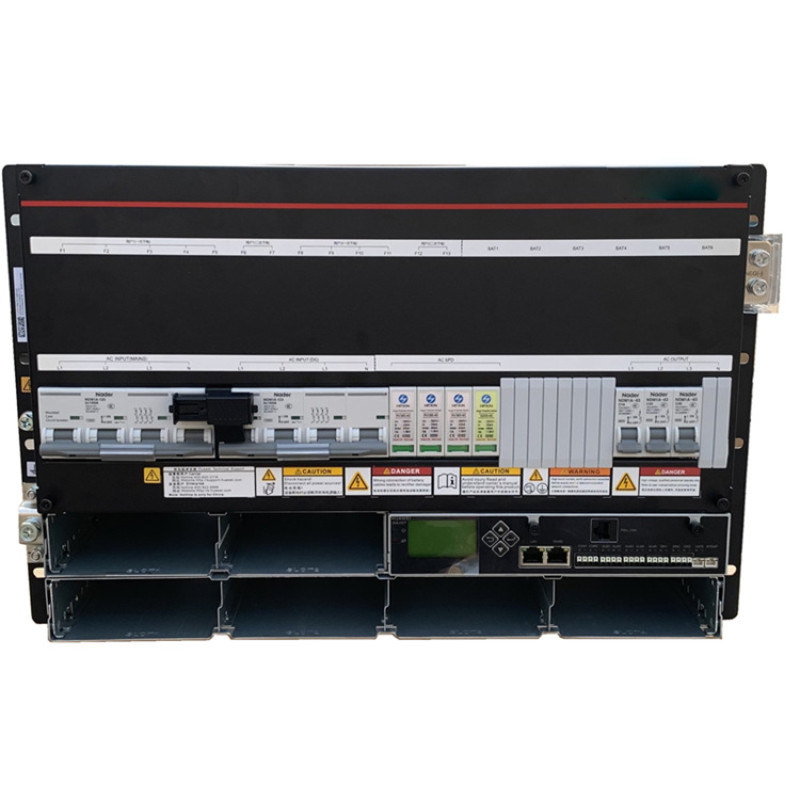

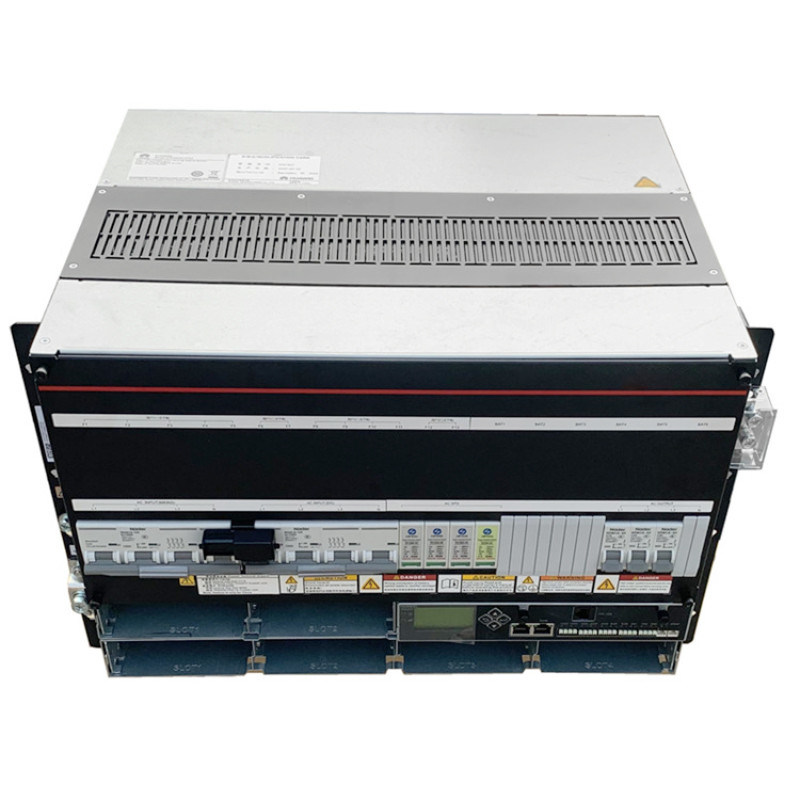

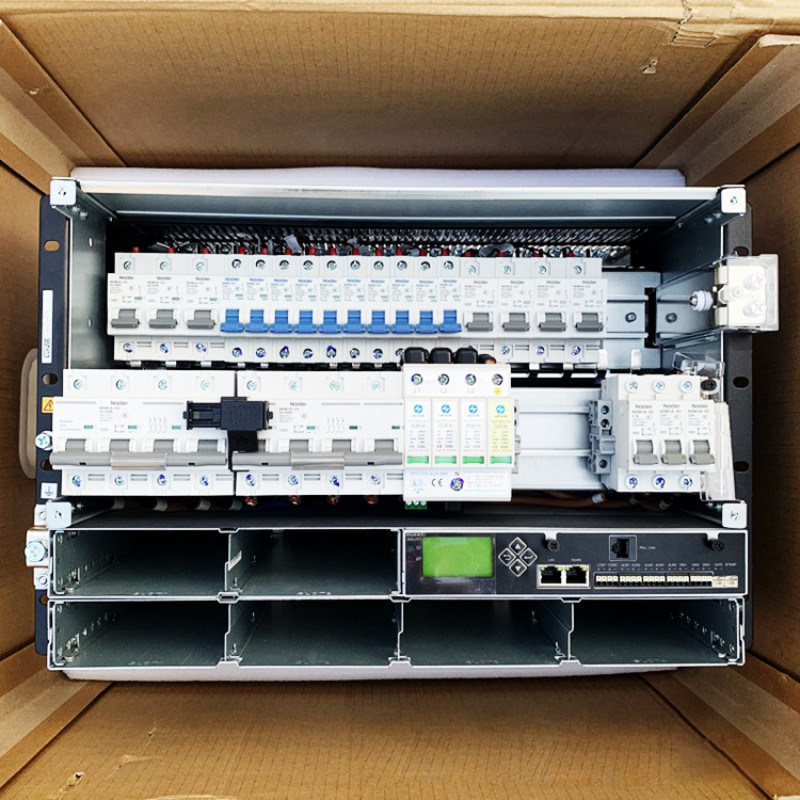

The ETP48400‑C7A3 is a high‑efficiency, compact embedded DC power system designed for telecom access networks, transmission equipment, 5G base stations, OLT devices and compact communication equipment rooms. It converts wide‑range AC input into stable adjustable –48V DC output with rated power 4000W, delivering reliable power for critical communication equipment in a standard 19‑inch 3U chassis.
Adopting a fully modular, hot‑swappable design, intelligent monitoring and comprehensive protection, this system ensures high efficiency, stable operation and easy maintenance. It is the ideal compact power solution for modern communication infrastructure requiring high reliability and space savings.
Key Features
Standard 19‑inch 3U rack/embedded design, compact structure and high space utilization
4000W high‑efficiency output, efficiency up to 96%, low energy consumption and heat generation
Wide AC input range 85–300VAC, 45–65Hz, strong adaptability to unstable grids and generator power
Stable adjustable DC output 42–58VDC (default 53.5VDC), matching various telecom equipment
Supports hot‑swappable rectifier modules, plug‑and‑play replacement without system shutdown
Full front maintenance & wiring, easy installation and later maintenance
Intelligent monitoring: real‑time data display, fault alarm, remote communication (RS485/FE/SNMP)
Intelligent battery management & protection, effectively extending battery service life
Wide operating temperature –40°C ~ +65°C, suitable for high‑altitude & harsh environments
Complete protection: OVP, OCP, SCP, OTP, LVBD, surge & lightning protection
High power factor ≥0.99, low THD, green and grid‑friendly
Protection class IP20, compliant with CE, RoHS and global telecom safety standards
Technical Specifications
| Item | Details |

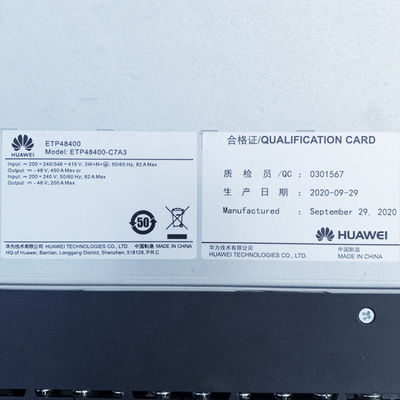

| Model | ETP48400‑C7A3 |
| System Type | 19‑inch 3U embedded DC power system |
| AC Input | 85–300VAC, 45–65Hz; 3‑phase / 1‑phase compatible |
| DC Output | 42–58VDC adjustable; Default 53.5VDC |
| Rated Output Power | 4000W |
| Matching Rectifiers | R4875G1 |
| Peak Efficiency | Up to 96% |
| Power Factor | ≥0.99 |
| Cooling | Intelligent fan cooling |
| Maintenance | Full front maintenance & front wiring |
| Protection Level | IP20 |
| Dimensions (W×D×H) | 482.6 × 600 × 133 mm |
| Weight | Approx. 20 kg (without rectifiers) |
| Operating Temp | –40°C ~ +65°C |
| Storage Temp | –40°C ~ +70°C |
| Humidity | 5%–95% RH (non‑condensing) |
| Altitude | Up to 4000 m |
| Certifications | CE, RoHS, UL |
| Warranty | 12 Months |
| Application | Telecom access, transmission, 5G base station, OLT |
Applications
Telecom access network & optical access equipment (OLT/ONU)
Transmission network & microwave communication systems
5G / 4G base stations and wireless access sites
Compact equipment rooms & cabinet‑embedded scenarios
Industrial control & critical communication DC power loads
Edge data centers & outdoor integrated communication cabinets
