Product Overview

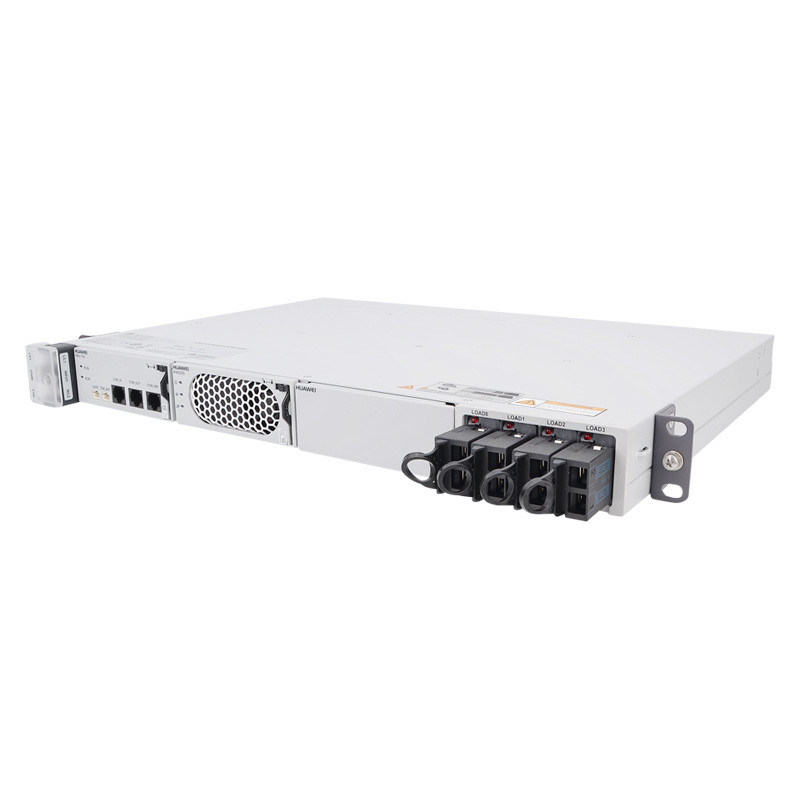

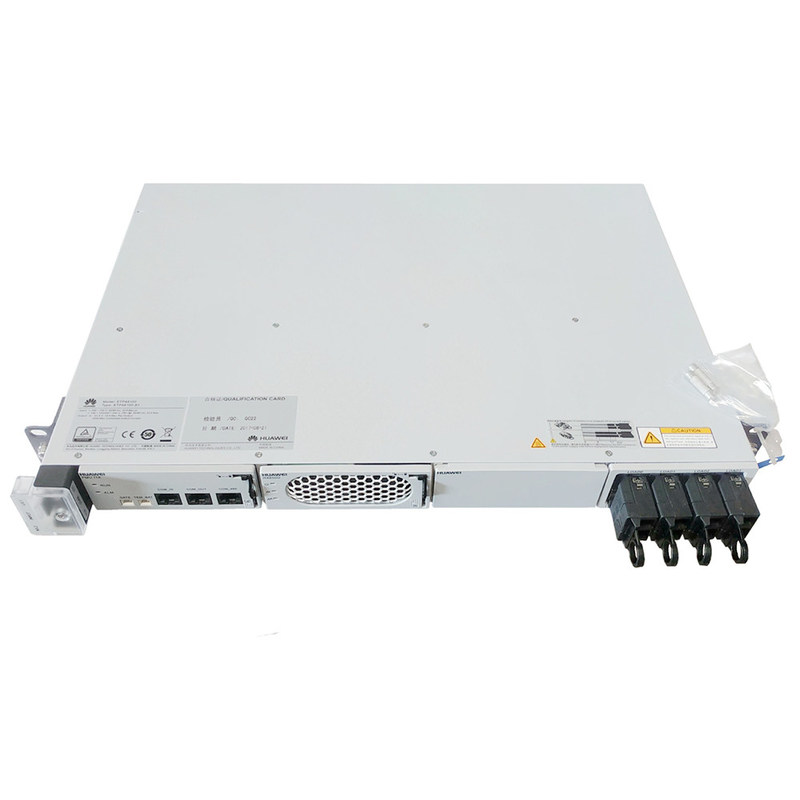

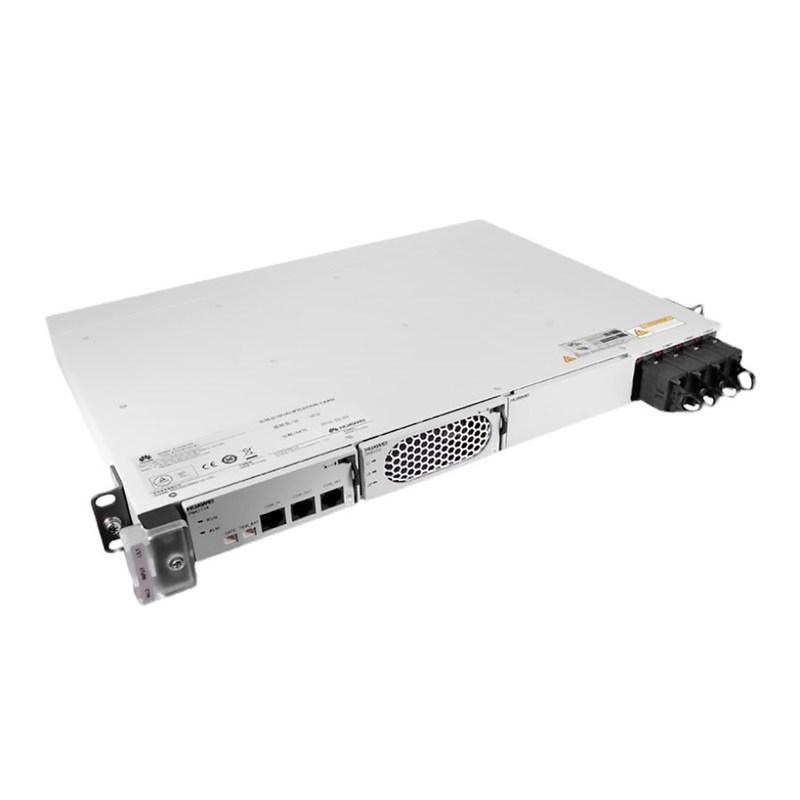

The ETP48100‑B1 is a highly integrated, carrier‑grade 1U 19‑inch rack embedded DC power system designed for telecom access networks, OLT equipment, BBU/RRU, small base stations, data rooms and edge computing scenarios. It converts wide‑range AC input into stable adjustable –48V DC output, with a maximum output current of 100A and rated power 3000W.
Adopting a compact 1U structure, front maintenance, intelligent monitoring and full protection design, this system ensures high efficiency, reliable operation and easy deployment. It is the preferred compact power solution for modern communication equipment and space‑limited equipment rooms.
Key Features
Standard 19‑inch 1U ultra‑slim design, perfect for 600mm deep cabinets and narrow spaces
Wide AC input range 110–240VAC, 50–65Hz, compatible with global single‑phase grids
Stable adjustable DC output –42V ~ –58VDC, max output current 100A, rated power 3000W
High efficiency >96%, low power consumption and heat generation
Modular rectifier & monitoring design, supports hot‑swap for easy maintenance
Intelligent monitoring with real‑time data display, fault alarm & remote communication

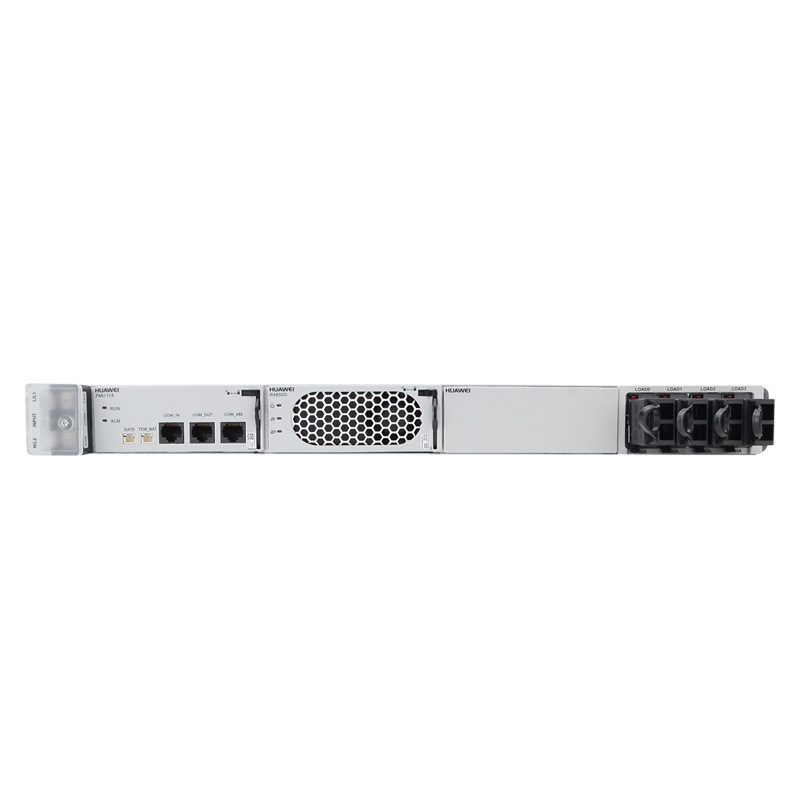

Full front wiring & front maintenance, saves installation space and labor
Multi‑channel output distribution (4×30A quick‑plug), flexible load configuration
Complete protection: OVP, OCP, SCP, OTP, LVBD, surge protection (2kV differential / 4kV common mode)
Wide operating temperature –40°C ~ +70°C, strong environmental adaptability
Natural cooling / fanless optional, quiet and reliable
Compliant with CE, telecom and global safety standards
Technical Specifications
| Item | Details |

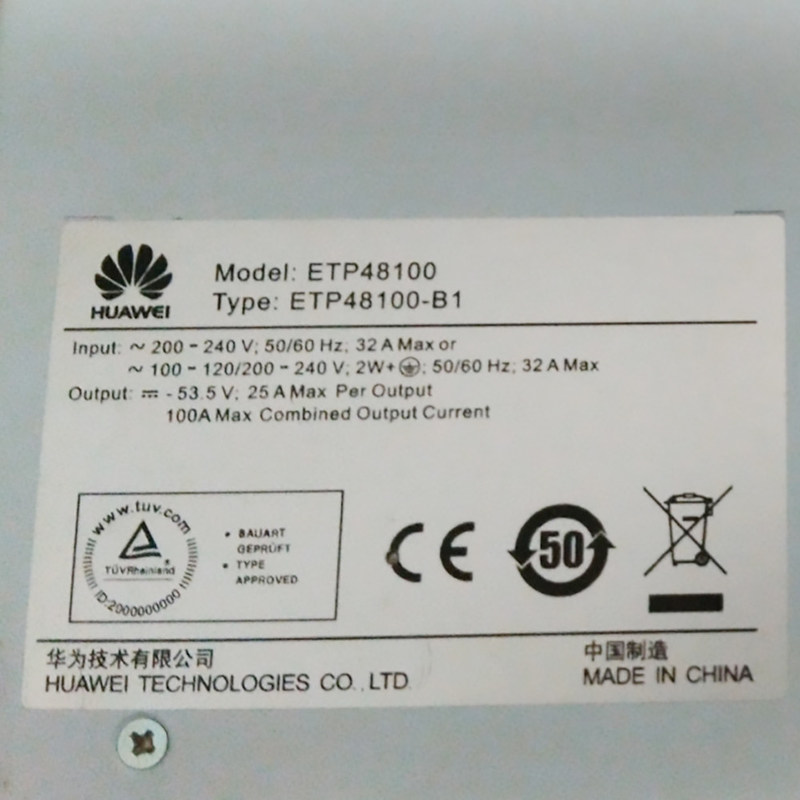

| Model | ETP48100‑B1 |
| System Type | 1U 19‑inch embedded DC power system |
| AC Input | 110–240VAC, 50–65Hz; single‑phase |
| DC Output | –42V ~ –58VDC adjustable; Nominal –48VDC |
| Max Output Current | 100A |
| Rated Output Power | 3000W |
| Rectifier Module | R4850G / R4850G2 |
| Monitoring Unit | PMU11A |
| Output Distribution | 4×30A quick‑plug outputs |
| Peak Efficiency | >96% |
| Protection | OVP, OCP, SCP, OTP, LVBD, SPD surge |
| Cooling | Natural convection / fanless |
| Maintenance | Full front maintenance & front wiring |
| Dimensions (W×D×H) | 482 × 315 × 44.5 mm |
| Weight | Approx. 4.5 kg |
| Operating Temp | –40°C ~ +70°C |
| Certifications | CE, Telecom Standard |
| Warranty | 12 Months |
| Application | OLT, BBU, RRU, base station, data room |
Applications
Telecom OLT, ONU and fiber optical access equipment
4G / 5G base stations, BBU and RRU equipment
Small cell, indoor coverage and wireless access sites
Data rooms, edge computing and IDC equipment
Industrial control, automation and critical DC power loads
Compact cabinets and space‑limited equipment rooms
