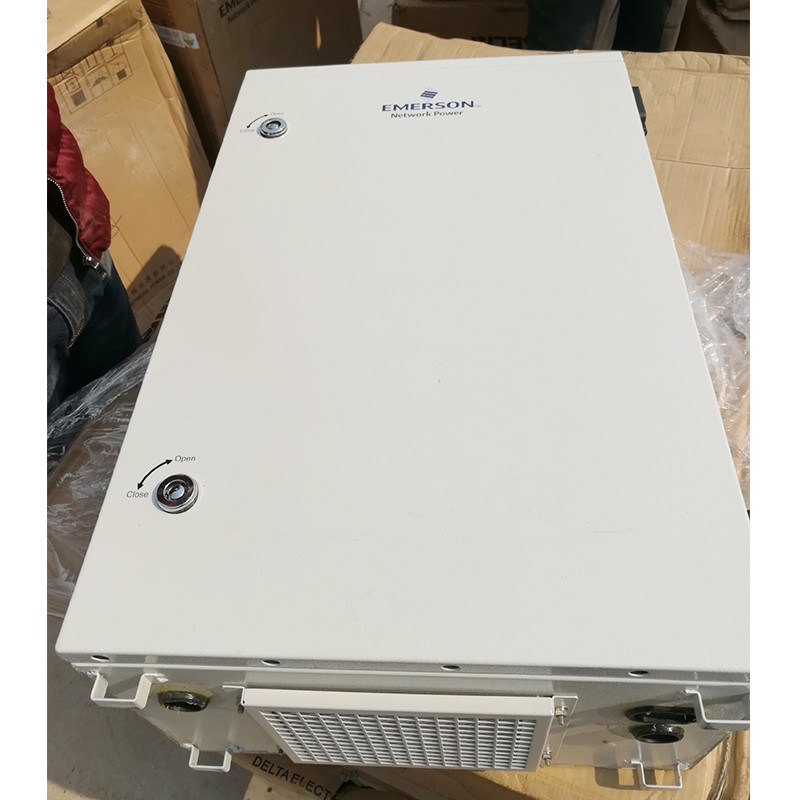

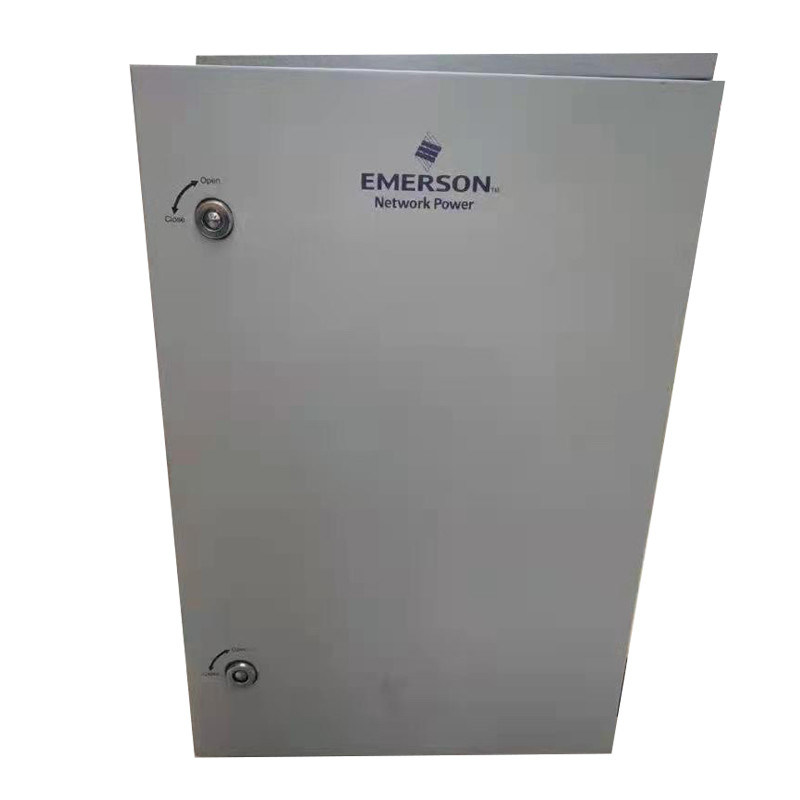

EPC4860/1800-FA31 Outdoor Telecom Battery Cabinet
IP55 High Protection Grade: Excellent dustproof and waterproof performance, effectively resisting rain, dust and moisture, suitable for long-term outdoor operation.
Multiple Installation Options: Supports wall mounting, pole mounting and floor installation, flexible to adapt to different site conditions.
Stable Power Performance: Rated 220V AC input, standard -48V DC 60A output, with stable voltage and low ripple.

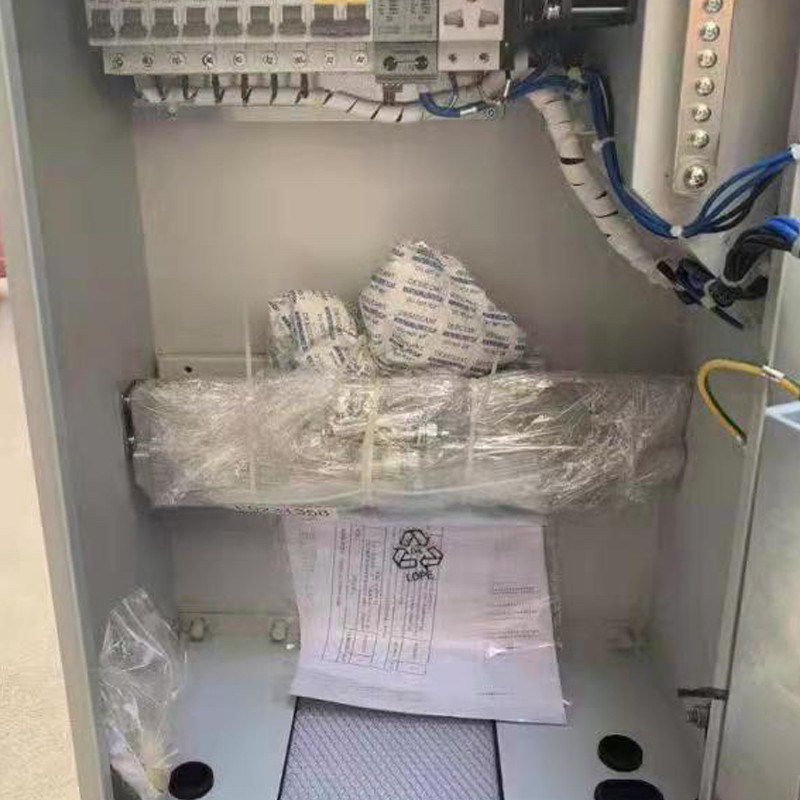

Integrated Design: Combines rectification, power distribution, battery storage and monitoring into one cabinet, simplifying on-site layout and construction.
Intelligent Temperature Control: Adopts temperature-controlled variable-speed fan for forced heat dissipation, automatically adjusting fan speed to reduce noise and energy consumption.
Multi-Level Lightning Protection: AC, DC and signal triple lightning protection design, effectively resisting outdoor lightning surge damage.
Professional Battery Management: Optimized charge and discharge control, temperature compensation and low-voltage protection to extend battery service life.

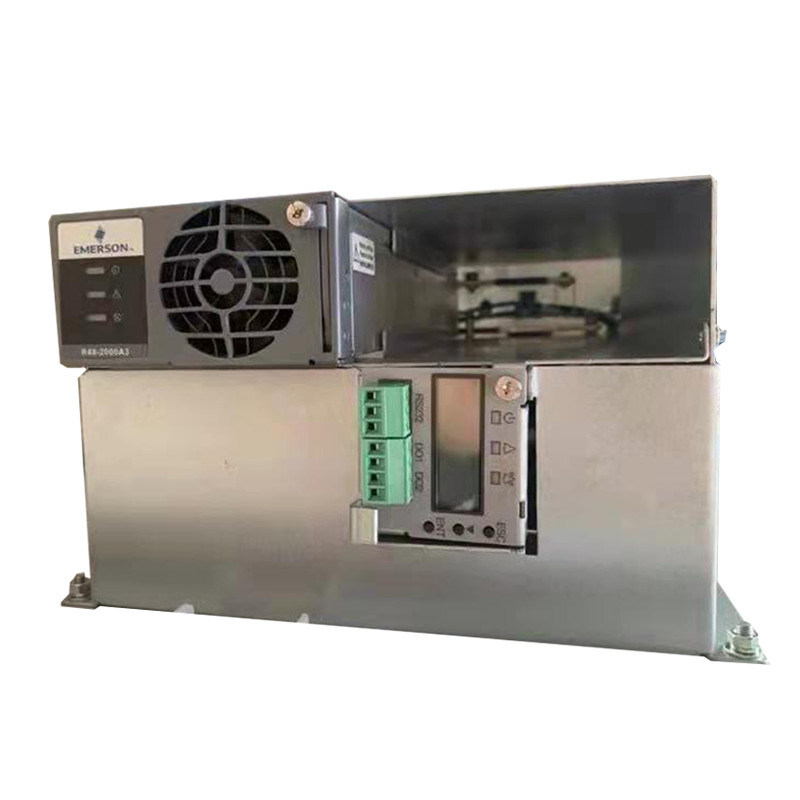

Hot-Swap Module: Internal rectifier and monitoring modules support hot swap, maintenance without shutting down the system.
Full-Range Safety Protection: Integrated overvoltage, overcurrent, short-circuit and overtemperature protection to ensure equipment safety.
Wide Environmental Adaptation: Works stably at -40℃ ~ +55℃, adapting to extreme cold and hot outdoor climates.
Outdoor 4G/5G communication base stations and pole-mounted sites
Remote unattended network equipment rooms
FTTX outdoor fiber access equipment
Microwave communication and outdoor transmission devices
Outdoor monitoring and industrial backup power systems
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | IP55 Outdoor Telecom Battery Cabinet |
| Model | EPC4860/1800-FA31 | |
| Brand | XINGDA (Vertiv/Emerson) | |
| Application | Telecom & Network Equipment | |

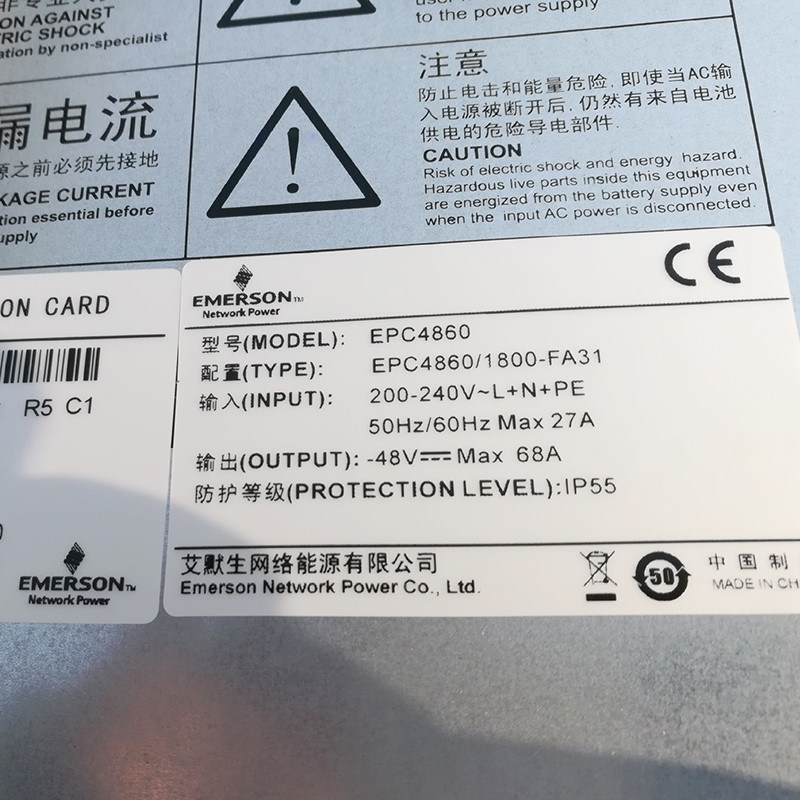

| Electrical Parameters | Rated AC Input | 220V AC, 50/60Hz |
| Max Input Current | 27A | |
| DC Output | -48V DC, Max 60A | |
| DC Surge Protection | 10kA | |
| Physical Size | External Dimension (Without Base) | 610 × 250 × 700 mm |
| Protection & Structure | Protection Grade | IP55 |
| Installation Type | Wall-mounted / Pole-mounted / Floor-standing | |
| Internal Layout | Reserved space for 48V lead-acid battery or 4U 19-inch equipment | |
| Cooling Mode | Temperature-controlled variable-speed fan, forced convection | |
| Environment | Operating Temperature | -40℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Relative Humidity | 5% ~ 100% (Non-condensing) | |
| Max Working Altitude | ≤ 2000m (Derate above 2000m) | |
| Service | Warranty Period | 12 Months |
| Customization | Cabinet enclosure, color & logo customizable |
Superior Outdoor Adaptation: IP55 waterproof and dustproof grade, stable operation in all kinds of harsh outdoor weather.
Flexible Installation: Diversified installation methods meet the layout requirements of different sites.
All-in-One Integration: Highly integrated design saves construction space and engineering costs.
Intelligent Control: Temperature-controlled fan + battery management system reduces operation and maintenance costs.
Complete Protection: Triple lightning protection and multi-safety protection guarantee long-term stable operation.
Easy Maintenance: Hot-swap modules and full-front maintenance design simplify daily overhaul.
Customizable Service: Supports cabinet appearance and structure customization for personalized project demands.
