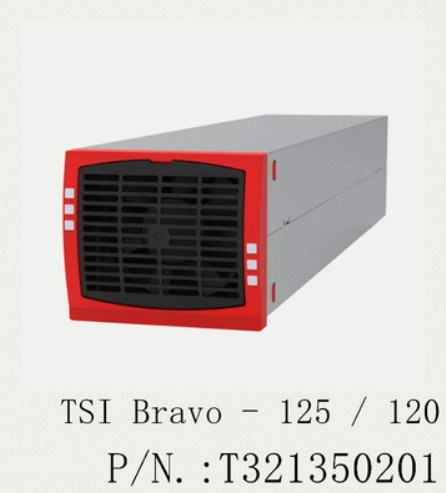

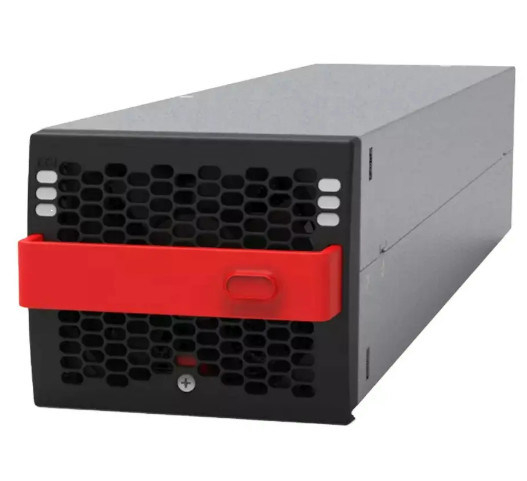

Product Overview
The CE+T T321350201 TSI Bravo125/120 is original European-designed modular pure sine wave inverter dedicated for North American standard 120Vac power applications, converting 125VDC battery power into stable 120Vac alternating current with rated capacity 2.5kVA/2kW. Unique dual AC+DC triple port design with extra auxiliary AC input improves overall conversion efficiency greatly, multiple modules can be paralleled flexibly to build single/2-phase/3-phase power systems from standalone 2.5kVA up to large-scale 80kVA total capacity. Adopt hot-swappable plug-in structure and low-ripple output technology to protect battery and DC loads from fluctuation damage, widely used in US/Canada telecom base station backup, industrial equipment UPS and off-grid solar energy storage projects.
Key Features
Standard compact module dimension for 19-inch 2U rack embedded installation, easy cabinet layout
Extra independent auxiliary AC input design, AC→AC efficiency up to 95%, DC→AC up to 91%, cut running power loss
Nominal 125VDC input (working range:90~160VDC), fixed 120Vac output matching North American grid standard
Pure sine wave output with ultra-low voltage ripple, no interference to battery and sensitive DC loads
Hot-swappable module design, single unit replacement without shutting down whole power system, reduce maintenance downtime
Flexible system expansion: single/2×120Vac two-phase /3×208Vac three-phase configurable, max system capacity up to 80kVA
150% short-time overload (15s), 110% permanent overload resistance under rated ambient temperature
Wide working environment: -20℃~+50℃ working, -40℃~+70℃ storage, ≤1500m altitude without power derating
Built-in intelligent temperature-controlled cooling fan with fault alarm function, comply CE & RoHS safety standards
Technical Specifications
| Item | Details |
| Model | TSI Bravo125/120 |
| Part Number | T321350201 |
| Brand | CE+T Power |
| Nominal DC Input | 125VDC (Working:90~160VDC) |
| Nominal AC In/Out | 120Vac (Working:100~138Vac,50/60Hz) |
| Rated Capacity | 2.5kVA / 2kW |
| AC→AC Efficiency | Up to 95% |
| DC→AC Efficiency | Up to 91% |
| Output Wave | Pure Sine Wave, Ultra-low Ripple |
| Overload | 150% for 15s; 110% continuous |
| Expandability | Parallel up to total 80kVA, Single/2P/3P optional |
| Mount | Standard 19-inch Rack Module |
| Working Temp | -20℃ ~ +50℃ |
| Storage Temp | -40℃ ~ +70℃ |
| Humidity | 5~95%RH non-condensing |
| Certifications | CE, RoHS |
| MOQ | 5 PCS |
| Unit Price | $705-$985/pc |
| Delivery Lead Time | 30 Working Days |
| Warranty | 12 Months |
Applications
North America 4G/5G Telecom Base Station AC Backup UPS
US Rural Off-grid Solar & Wind Energy Storage Inverter System
Industrial Automation & Precision Instrument 120Vac Emergency Power
Banking, Security Monitoring & Road Toll Cabinet Uninterrupted Supply
Remote Mountain Unmanned Equipment DC to AC Power Conversion
Marine On-board 125V Battery Backup AC Power System
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
