Product Overview

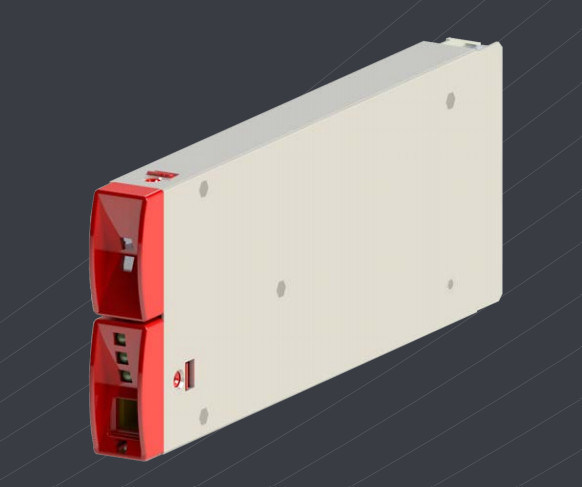

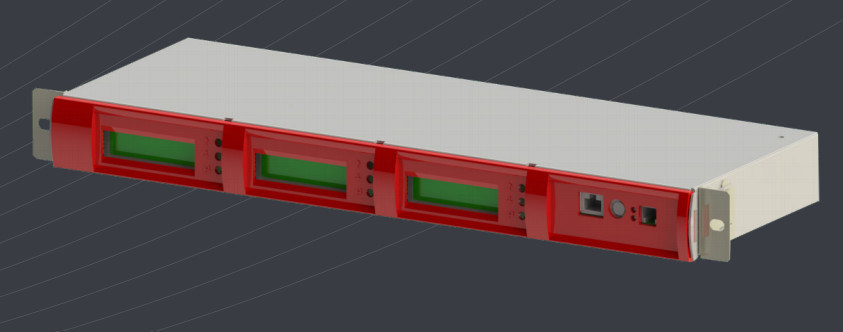

The CE+T CANDIS T302002000 is original 1U height 19-inch standard rack-mounted subrack developed by CE+T Power, specially designed for installing Bravo series modular DC/AC inverter modules (24V/48V/60VDC input options: Bravo10 1.25kVA, Bravo25 2.5kVA). It supports single-phase standalone deployment or 3-shelf combination to build complete three-phase 3×400V+N AC power system, from small 1.25kVA up to large 80+kVA scalable power solution. Equipped reserved interface for Candis monitoring display and T2S communication system, this subrack is widely applied in telecom room backup power, edge IDC UPS, industrial automation uninterrupted power and off-grid solar AC conversion projects.
Key Features
Standard 1U height, 19-inch industry standard rack size, fits all common 19-inch communication/server cabinets
Universal slot design, compatible full Bravo series inverter: 24/48/60/110/220VDC multiple input specifications
Hot-swap structural layout, individual module plug-and-play without shutting down whole rack system
Built-in dual input wiring channel (AC auxiliary + DC battery), supporting zero-break automatic mains-battery transfer
Reserved Candis display installation position + T2S Modbus/RS485 communication terminal for centralized remote monitoring
Forced air cooling layout, optimized internal airflow to lower module operating temperature and extend service life
Multi-level circuit disconnect protection: 3-level AC output disconnection, 4-level AC input safety break design
Strictly comply EN62040 safety & EMC EN55022 Class A/B standards, RoHS compliant
Wide ambient adaptability: -20℃~+50℃ working temp, stable operation below 1500m without power derating
High expandability: Multiple subracks cascading to form single/three-phase large capacity UPS up to 225kVA
Technical Specifications
| Item | Details |
| Model | CANDIS T302002000 |
| Brand | CE+T Power |
| Rack Spec | 1U, 19-inch standard rack mount |
| Compatible Module | Bravo10(1.25kVA)/Bravo25(2.5kVA), 24/48/60/110/220VDC optional |
| Single Unit Max Capacity | 2.5kVA max per subrack |
| Aux AC Input | 150~265VAC,50/60Hz |
| Communication | Support T2S bus, Dry contact alarm, Candis display optional |
| Cooling | Forced ventilation cooling |
| Safety Standard | EN62040-1, EN61000 EMC series |
| Compliance | RoHS compliant |
| Working Temp | -20℃ ~ +50℃ |
| Storage Temp | -40℃ ~ +70℃ |
| Relative Humidity | ≤95% non-condensing |
| Max Altitude | ≤1500m (no derating) |
| MOQ | 5 PCS |
| Unit Price | $705-$985/pc |
| Delivery Cycle | 30 Working Days |
| Warranty | 12 Months |
Applications
Telecom base station & OLT equipment room AC backup power system
Edge computing small IDC and server rack uninterrupted UPS
Industrial PLC, precision instrument emergency power supply
Banking terminal, security monitoring centralized backup power
Off-grid solar storage DC to AC inverter cabinet
Railway, tunnel communication equipment uninterrupted power projects
