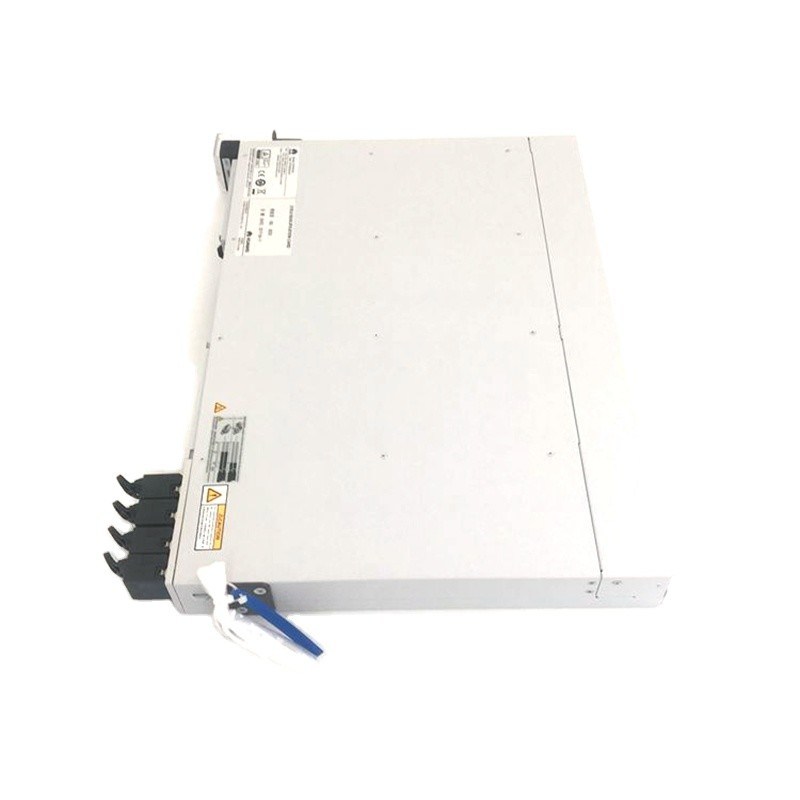

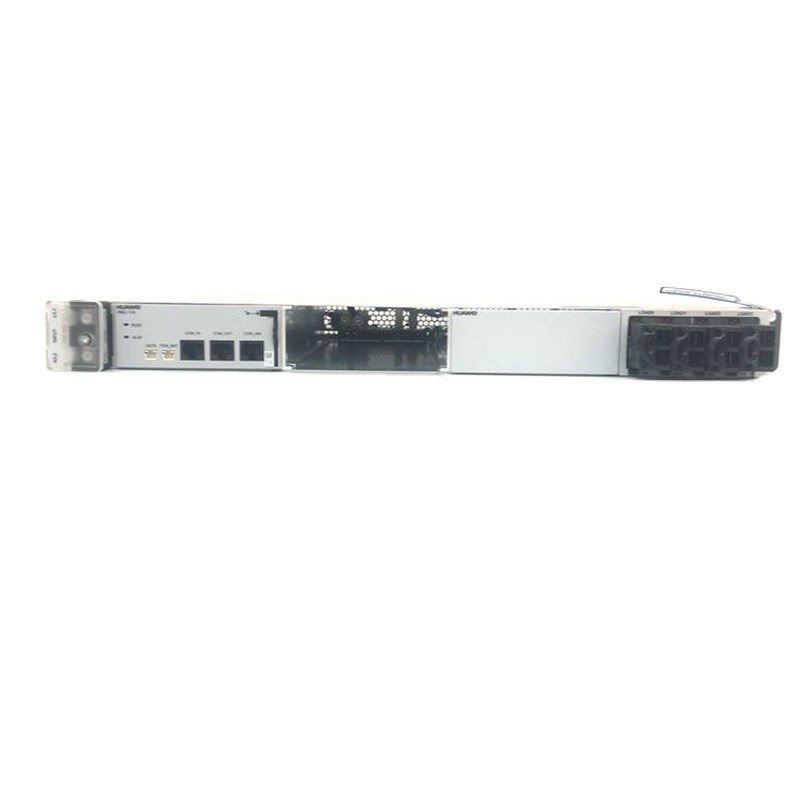

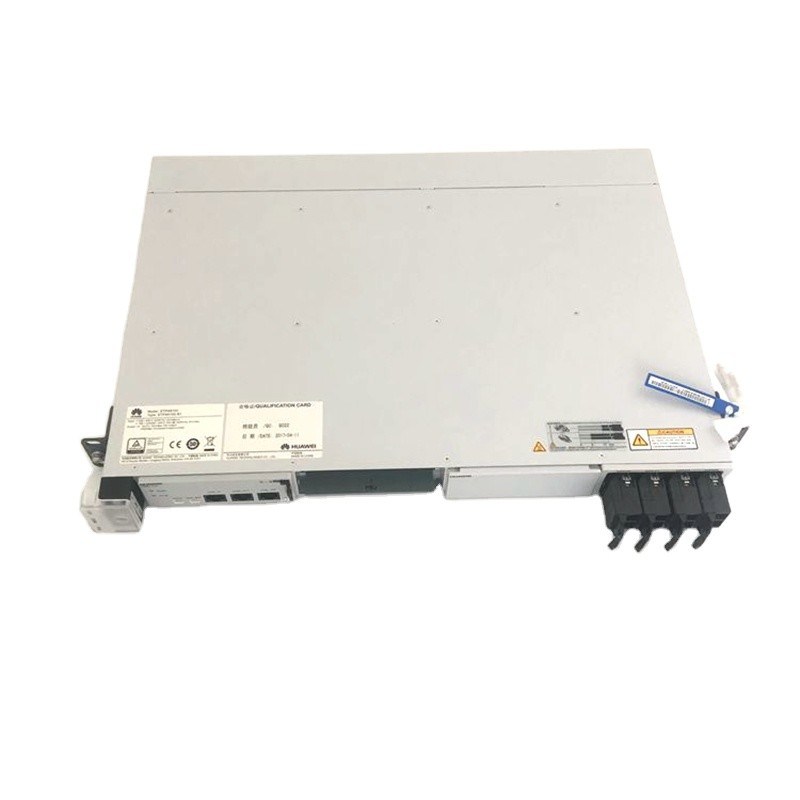

1U 48V 100A Telecom DC Power System (ETP48100-B1)
Compact 1U Design: Ultra-thin 1U rack structure (45mm height), dimensioned at 45×315×415mm and only 7kg in weight, saving cabinet space for dense deployment.
Dual AC Input Adaptation: Supports 100-120V and 200-240V AC input, with a wide operating range of 85-290V AC, adapting to various global power grid environments.
High Efficiency Performance: The matched R4850G2 rectifier module achieves up to 96% conversion efficiency, low heat generation and low power consumption for long-term operation.
Modular Hot Swap: Rectifier modules support hot plug and replacement. No system shutdown is required during maintenance, effectively reducing service downtime.

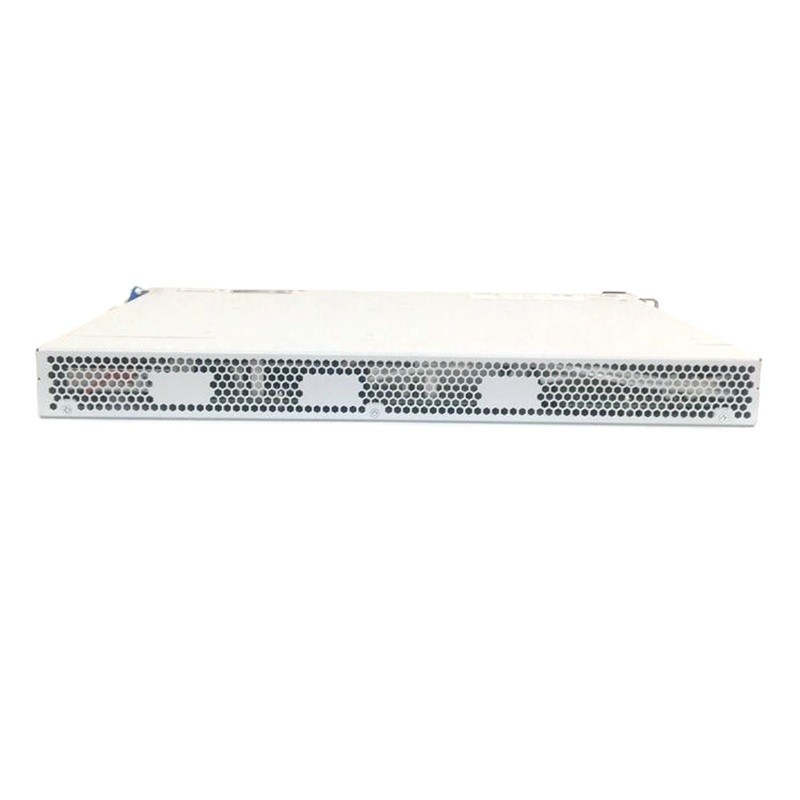

Reliable Heat Dissipation: Built-in fan forced convection cooling system to ensure stable full-load operation and extend product service life.
Multi-circuit Output: Multiple DC load output ports to supply power for multiple communication devices simultaneously, flexible for system configuration.
Comprehensive Protection: Integrated overvoltage, overcurrent, short-circuit and over-temperature protection, plus surge resistance (2kV differential / 4kV common mode) to protect terminal equipment.
Strong Environmental Adaptability: Works stably at -33℃ to 55℃, storage temperature ranges from -40℃ to 70℃, and can operate normally below 3000m altitude.
Certified Quality: Passes CE and ISO certifications, compliant with international telecom equipment standards; custom logo service is supported.
Huawei MA5680T, MA5683T, MA5800-X7/X15/X17 and other OLT equipment
FTTX fiber-optic broadband access network systems
Indoor telecom machine rooms and small communication base stations
Network transmission equipment and embedded DC power distribution projects
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | 1U Embedded Telecom DC Power System |
| Model | ETP48100-B1 | |
| Matching Rectifier | R4850G2 (50A per module, 2 modules in total) | |
| AC Input | Rated Voltage | 100~120V / 200~240V AC |
| Operating Range | 85 ~ 290V AC | |
| Input Frequency | 45 ~ 65Hz (50/60Hz nominal) | |
| DC Output | Nominal Voltage | 48V DC (Adjustable: 42 ~ 58V DC) |
| Single Module Current | 50A | |
| Max Total Current | 100A | |
| Total Output Power | 6000W | |
| Output Type | Multiple Circuits | |
| Conversion Efficiency | Up to 96% | |
| Physical | Dimension (HWD) | 45 × 315 × 415 mm |
| Net Weight | 7 kg | |
| Cooling | Cooling Mode | Built-in Fan, Forced Convection |
| Environment | Operating Temperature | -33℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 70℃ | |
| Max Working Altitude | ＜ 3000m | |
| Protection | Surge Resistance | 2kV (Differential), 4kV (Common Mode) |
| Protection Items | Overvoltage, Overcurrent, Short-circuit, Overtemperature | |
| Cert & Service | Certifications | CE, ISO |
| MOQ | 1 piece | |
| OEM Logo | Available |
Perfect Matching: Specially configured with R4850G2 rectifier modules, 100% compatible with Huawei mainstream OLT devices for plug-and-play use.
High Power Density: 1U small body with 100A large current output, balancing space utilization and load capacity.
Energy Saving: 96% high efficiency reduces long-term operating costs and heat emission.
Easy Maintenance: Hot-swap modules simplify on-site replacement and avoid service interruption.
Wide Adaptability: Suitable for multiple voltage standards and complex temperature & altitude environments.
Full Protection: Multi-layer safety and surge protection ensure stable operation in harsh conditions.
