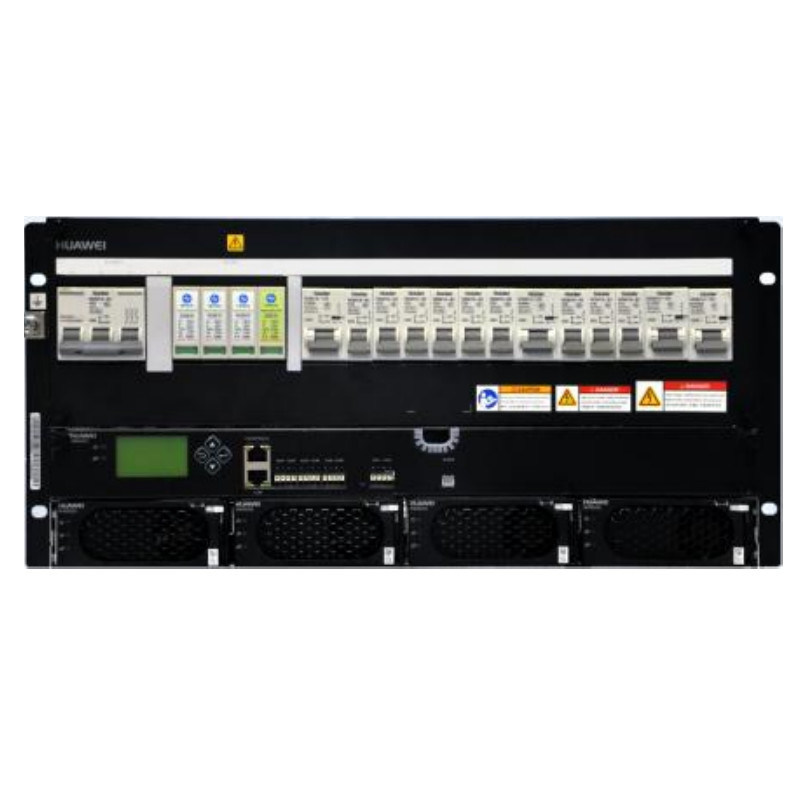

19 Inch ETP48200-C5B6 Telecom DC Power System
High Power Output: Max 200A DC output and 12kW total power, supporting up to 4 pieces of 50A rectifier modules to meet high-load power demands.
Wide Input Adaptation: Accepts 220V single-phase / 220/380V three-phase AC, with an operating voltage range of 85-300V AC, adapting to various complex power grid environments.
Ultra-High Efficiency: Matching rectifier module achieves efficiency over 96% and power factor above 0.99; no power derating below 55℃ for stable high-temperature operation.
Natural Heat Dissipation: Adopts natural cooling structure, no fan required, reducing failure points and noise, suitable for long-term 24-hour continuous operation.
Hot-Swap Modular Design: Rectifier and controller modules support hot swap. Modules can be replaced directly without system shutdown to minimize maintenance downtime.
Intelligent Management System: Built-in SMU06C1 controller with RS232 & RS485 communication ports, supporting remote monitoring, environmental detection and online equipment management.
Professional Battery Protection: Optimized charge and discharge management, together with dedicated battery breakers, effectively extend battery service life.
Multi-Circuit Distribution: Rich load and battery branch circuits, flexible power distribution for multiple telecom devices and battery packs.
Dual Lightning Protection: Equipped with AC and DC surge protection devices to resist lightning strikes and surge damage in outdoor and harsh environments.
Wide Environmental Resistance: Works stably from -40℃ to +65℃, available at an altitude up to 4000m, suitable for indoor and outdoor communication sites.
Mobile wireless communication base stations and cell sites
Optical fiber transmission networks and backbone communication equipment
Large enterprise communication rooms and private network systems
Data center supporting DC power distribution projects
Unattended remote telecom machine rooms and power backup systems
| Category | Item | Parameter |
|---|---|---|
| Basic Info | Product Type | 19 Inch Embedded Telecom DC Power System |
| Model | ETP48200-C5B6 | |
| Application | Telecom Equipment | |
| Color | Black | |
| Protection Grade | IP20 | |
| AC Input | Input Mode | 220V Single-phase / 220/380V Three-phase |
| Operating Voltage | 85V ~ 300V AC (Rated 220V AC) | |
| Input Frequency | 45Hz ~ 66Hz (Nominal 50/60Hz) | |
| AC Breaker | 1 × 63A/3P | |
| AC Surge Protection | 20kA / 40kA (8/20μs) | |
| DC Output | Output Voltage | 42V ~ 58V DC (Rated 53.5V DC) |
| Max Total Current | 200A | |
| Total Output Power | 12kW | |
| Output Type | Multiple Circuits | |
| DC Surge Protection | 10kA / 20kA (8/20μs) | |
| Battery Breaker | 2 × 125A/1P | |
| Load Breaker | LLVD: 1×80A/1P, 6×32A/1P BLVD: 1×80A/1P, 2×32A/1P, 1×10A/1P | |
| Matching Modules | Rectifier Model | R4850G / R4850N (50A, 3000W) |
| Rectifier Efficiency | ＞ 96% | |
| Controller Model | SMU06C1 | |
| Communication Port | RS232, RS485 | |
| Physical & Structure | Dimension (W×D×H) | 482.6mm × 330mm × 219.5mm |
| Weight | ≤ 20kg (Without Modules) | |
| Cooling Mode | Natural Cooling | |
| Installation | 19/23 Inch Rack / Embedded Cabinet | |
| Cabling Mode | Top In & Top Out | |
| Maintenance | Front Operation & Front Maintenance | |
| Environment | Operating Temperature | -40℃ ~ +65℃ |
| Storage Temperature | -40℃ ~ +70℃ | |
| Relative Humidity | 5% ~ 95% (Non-condensing) | |
| Max Altitude | 4000m (Derate 1℃ per 200m above 3000m) | |
| After-sales | Warranty Period | 12 Months |
High Load Capacity: 200A large current and 12kW high power fully meet the power supply needs of medium and large telecom systems.
Dual Input Compatibility: Supports single-phase and three-phase AC input, adaptable to different regional power supply standards.
Energy-saving & Low Noise: Natural cooling + 96% high efficiency reduce power consumption and operating noise.
Easy Maintenance: Hot-swap modules and front maintenance design simplify on-site operation and reduce service risks.
Complete Protection: Multi-circuit breakers and two-level lightning protection ensure system safety in complex working conditions.
Remote Manageable: Standard communication ports realize unattended remote monitoring for multiple sites.
Rugged & Durable: Ultra-wide temperature and altitude adaptability, stable operation for various indoor and outdoor scenarios.
