Highlight: 5.4kw Eltek Compack Flatpack S
| Output Power: | 1800-5400W | Output Type: | Single |
| Input Voltage: | 100 - 250VAC | Output Voltage: | 47 - 57.7VDC |
| Output Frequency: | 50/65HZ | Output Current: | 80 ADC |
| Application: | Network / Telecom Equipment | Warranty: | 12 Months |
| Name: | Flatpack S 1U Intrepid | Dimension(inch): | 19 X 1.75 X 11.875in |
| Weight: | 5.5kg | Output: | 48V/24V |
| Operating Temperature: | -40 - 65 °C | Mounting Type: | Rack 19" |
| Cooling: | Single Fan | Mains Configuration: | 230VAC Single Phase;120V/208V |
| Port: | Shenzhen |

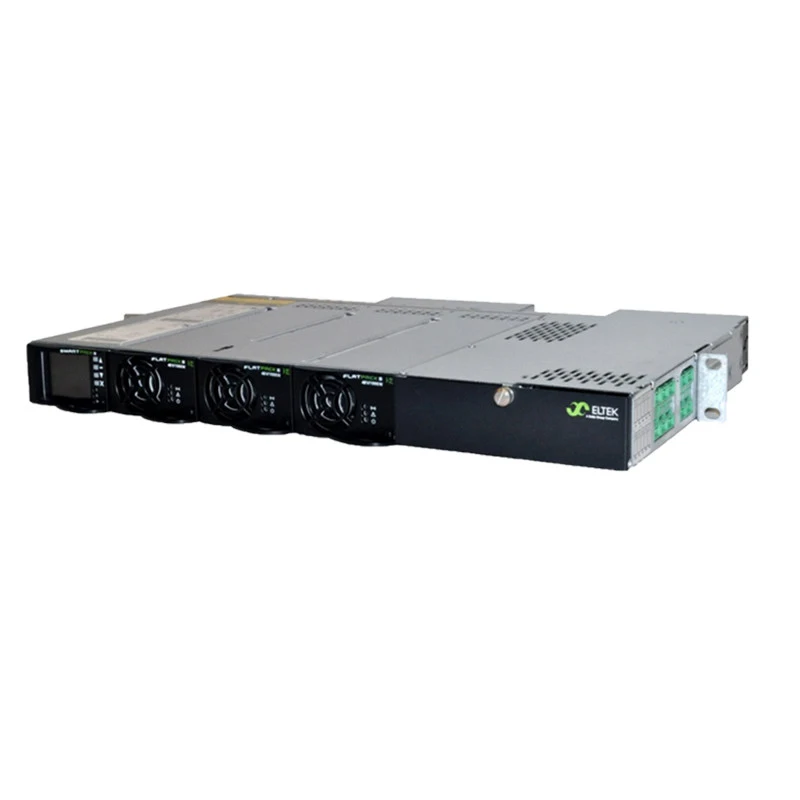

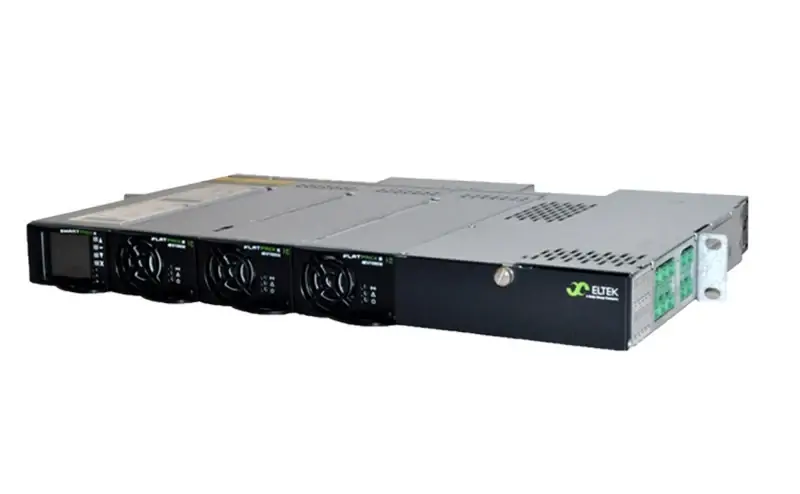

5.4kw Eltek Compack Flatpack S 1U Intrepid +3R Rectifier Embedded DC Power System with 3 rectifiers Flatpack S 48/1800 H
Product Description

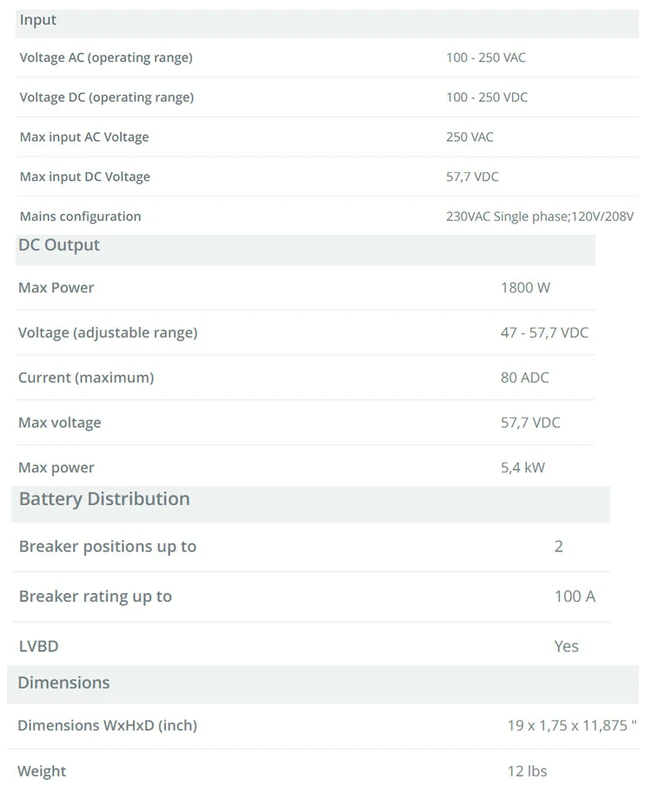

Specification
| Place of Origin | Shenzhen, China |
| Brand Name | Eltek |
| Model Number | Flatpack S 1U Intrepid |
| Output Power | 1800-5400W |
| Output Type | Single |
| Input Voltage | 100 - 250 VAC |
| Output Voltage | 47 - 57.7 VDC |
| Output Frequency | 50/65HZ |
| Output Current | 80 ADC |
| Application | Network / Telecom |
| Warranty | 12 months |
| Name | Flatpack S 1U Intrepid |
| Dimension(inch) | 19 x 1.75 x 11.875in |
| Weight | 5.5kg |
| Output | 48V/24V |
| Operating Temperature | -40 - 65 °C |
| Mounting Type | Rack 19" |
| Cooling | Single fan |
| Mains Configuration | 230VAC Single phase;120V/208V |
Application
