Product Description

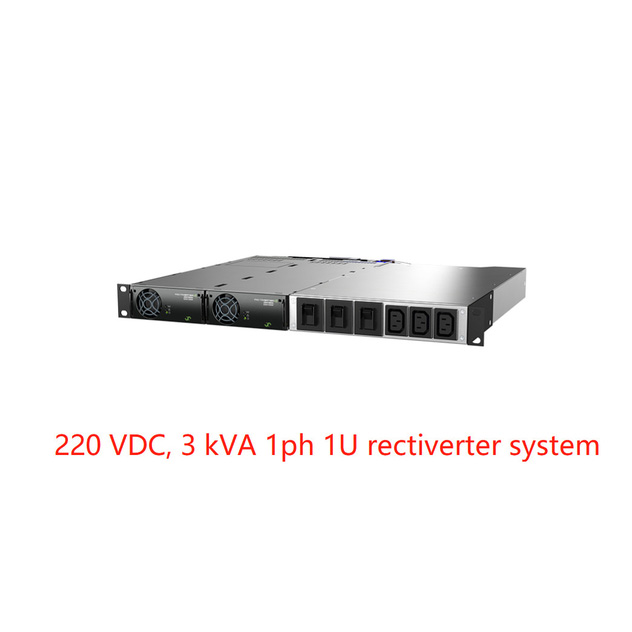

Eltek Rectiverter Integrated Standalone System 3kVA 1phase 220 VDC (Part No.:CTOR0201.003 CTOR0201.006 )
Applications
The rectiverter integrated standalone system can be used in application where
1 230/115Vac backup is needed in parallel with the 220Vdc backup .
The system can be integrated into an Eltek DC system and connected to the same controller as the 220Vdc systems
It can also be used as a standalone system connected to any available, 220Vdc source.
The total output power for both AC and DC output is limited to max 4kw, AC and DC output limits can be set according to the attached load.Where the limitation for AC load is set to max 3Kva.
TELECOM-MOBILE/WIRELESS
LTE/4G/WiMAX
Distributed antenna system
Broadband
Radio base stations/cell sites
RAILWAY & METRO INFRASTRUCTURE
Control & protection
Signaling
GSM-R
Safety Systems
POWER UTILITIES
Control & protection
SCADA system
Key Features
Compact design and simple installation
Single phase 230 or 115VAC input and output
48Vdc input and output
Up to 4 rectiverter modules
8KW total AC+DC output
Max 6kVA AC output
Max 4KW/ 8KW DC output
1 or 2 pole AC distribution options
1 Pole DC distribution option
Built in transfer technology
Techinical Data
| Models / ordering information | 4 kW, 230 V | 2 kW, 115 V |
| Part number | CTOR0201.003 | CTOR0201.006 |
| AC OUTPUT DATA | ||
| Voltage (default) / (adjustable range)1) | 230 VAC / 200 - 240 VAC | 115 VAC / 100 - 127 VAC |
| Frequency (default inverter mode) | 50 Hz (adaptive) | 60 Hz (adaptive) |
| Frequency (set-able inverter mode) | 50Hz, 60Hz or last synced 50/60Hz (adaptive) | |
| Power maximum (continuous / overload (<15s) ) | 2400 W (3000 VA) / 4000 VA | 1200 W (1500VA) / 2000 VA |
| Current maximum (continuous / overload (<15s) ) | 13ARMS / 17,4ARMS | |
| Current (maximum) Quick trip (20ms) | 64 A (6 x nominal) | |
| Hold up (Voltage dips) (before switching to battery) | 5 ms | |
| THD | < 1.5 % at resistive load | |
| Output features | Fuse in L and N, Hot pluggable | |
| DC OUTPUT DATA | ||
| Voltage (default) / (adjustable range) | 245 VDC / 194 - 290 VDC | |
| Power (maximum @nominal input) | 2400 W 2) | 1200 W 2) |
| Current (maximum @nominal output VDC) | 11,1 A 2) | 5,5 A 2) |
| Hold up time, maximum output power | >10ms; VOUT > 95 VDC | |
| Output features | Short circuit proof, Over voltage Shutdown, Bulk DC output connection to M6 bolt | |
| INPUT DATA | ||
| AC Mains Input Voltage (single phase) | 185 - 275 VAC | 95 - 140 VAC |
| AC Current (at nominal output voltage) (depending on module type) | 14-24 ARMS 4) | |
| Frequency (default: sync range) | 47-53 & 57-63 Hz | 57-63 & 47-53 Hz |
| Frequency (set-able: sync range) | 47-53 Hz, 57-63 Hz or both (adaptive) | |
| Power Factor / THD | > 0.99 at 50% load or more / < 3.5% | |
| DC Voltage nominal / extended range (no overload)3) | 204 - 290 VDC / 180 - 204 VDC | |
| DC Current (maximum) | 13,3 A / 18 A during overload (15s) | 6,4 A / 9 A during overload (15s) |
Input features | Fuse in L and N, Hot pluggable, Varistor, Hot pluggable AC input individual screw terminals 6 mm2 for L, N & PE Bulk DC input connection to M6 bolt | |
| OTHER SPECIFICATION | ||
| Support for connection to following controller (RJ45) | Smartpack2, Smartpack S & Compack controllers | |
| Efficiency | >96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC)) | |
| 2 pole AC distribution (connection IEC 320-C13 sockets) | 3pc, 10A, OP characteristics (optional 4-8 A breaker with CS characteristics available) | |
| Protection Class | ||
| Operating temperature | -40 to +55°C (+40 to +131°F), humidity 5 - 95% RH non-condensing | |
| Storage temperature | -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing | |
| Dimensions[WxDxH] / Weight | 482 x 395 x 44mm (1U) (19 x 17 x 1,8”) / 6kg (13 lbs) | |
| DESIGN STANDARDS | ||
| Electrical safety | EN 60950-1, EN 62040-1 | |
| EMC | ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15 EN 61000-6-1/-2/-4/-5 EN62040-2 (Cat C1 emmisions, cat C2/C3 immunity) | |
Environment | ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3) Normal operating conditions as per IEC/EN 62040-3:2011 clause 4.2. Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised 2011/65/EU (RoHS) & 2012/19/EU (WEEE) | |
1) Output voltage ranges configured in factory and have individual keying in top chassis 3) Reduced performance - no power boost and increased voltage THD on AC output. | 2) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e maximum 1600W at full AC power and nominal input for 230VAC. 4) If DC voltage is pulled below 194 V the input current may increase above this level | |
