Highlight: 48vdc Telecom Power System, Integrated Telecom Power System, 24vdc Telecom Power System
| Brand: | Eltek | Model: | Flatpack2 Integrated Power System |
| Current: | 150A-600A | Controller: | Smartpack R |
| Voltage Range: | 85-300Vac | Frequency: | 45-66hz |
| Connection: | Terminals | DC Output: | Max 600A |
| DC Output Voltgae: | 48vdc /24Vdc | Subrack Weight: | 5 Kg |
Product Description

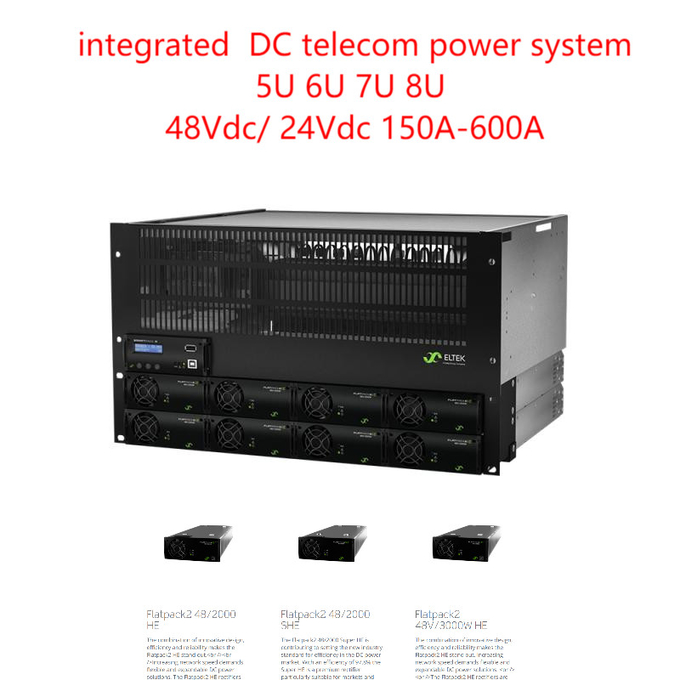

48Vdc 24Vdc Integrated Telecom Power System 150A-600A with Flatpack2 24/1800HE Flatpack2 48/2000HE
The integrated telecom power system, from 5U to 8U , from 150A to 600A based on quantity of rectifiers used in the systems.
Which can install Flatpack2 48/2000HE, Flatpack2 48/3000HE ,Flatpack2 48/2000SHE module for -48Vdc output .For 24Vdc output , it can install Flatpack2 24/1800HE module.
The controller for this integrated power systems is Smartpack R controller which is the latest new design of Eltek .
Battery distributions can be produced as OEM.
Techinical Data
| MODEL | 24VDC | 48VDC |
Part number (Configured Telecom power system) | CTO2xxxx.nnnn | CTOxxxxx.nnnn |
| POWER MODULE | ||
| Flatpack2 rectifier 1) | Flatpack2 24/1800 HE | Flatpack2 48/2000 HE or SHE Flatpack2 48/3000 HE or SHE |
| INPUT DATA | ||
| Voltage (range) | 85-300 VAC | 85-300 VAC (HE module) 85-264 VAC (SHE module) |
| Frequency | 45-66 Hz | |
| Mains configuration | Individual 2) / 1p230 VAC TN / 3p400 VAC TN / 1p230 VAC IT / 3p230 VAC IT | |
| Connection | Terminal blocks, 16 mm2 max | |
| OUTPUT DATA | ||
| Voltage | +24 VDC | -48 VDC |
| Current (maximum) | 600 A | 600 A |
| BATTERY DISTRIBUTION | ||
| Number of battery breaker positions | 6x 100 A | |
| LVBD | Default 300 A / 600 A | Optional 150 A / 300 A / 500 A / 600 A |
| LOAD DISTRIBUTION | ||
| Number of load MCB positions | 18x 18 mm or 9x 18 mm + 6x 27 mm | |
| LVLD | Optional 300 A / 600 A | Optional 150 A / 300 A / 500 A / 600 A |
| Load breaker type | DIN rail mounted, 18 mm and 27 mm wide (13 mm on request) | |
| CONTROL AND MONITORING | ||
| Control and Monitoring unit 3) | Smartpack R | |
| Inputs | 6x Digital inputs (for monitoring of external equipment) | |
| Outputs | 6x Alarm relays | |

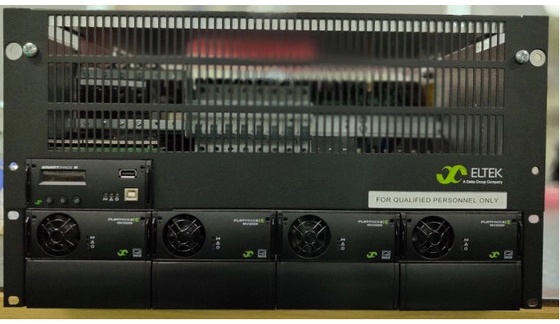

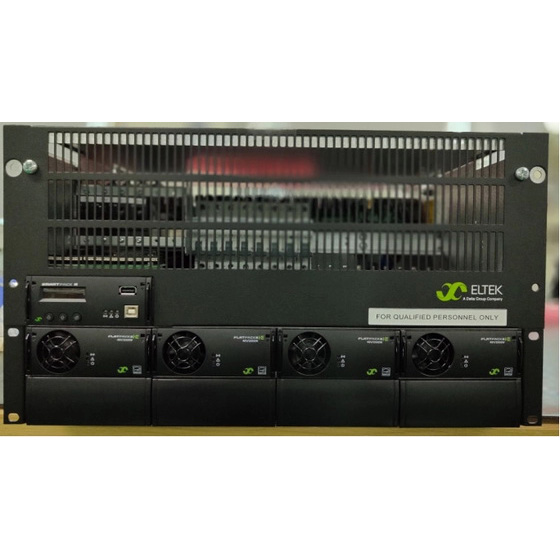

Product Display
