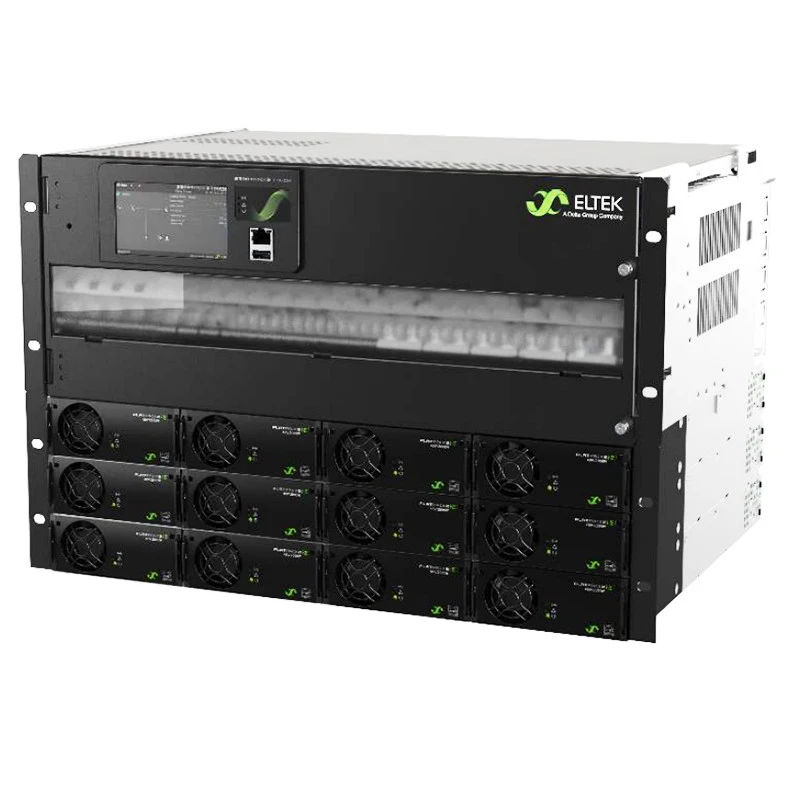

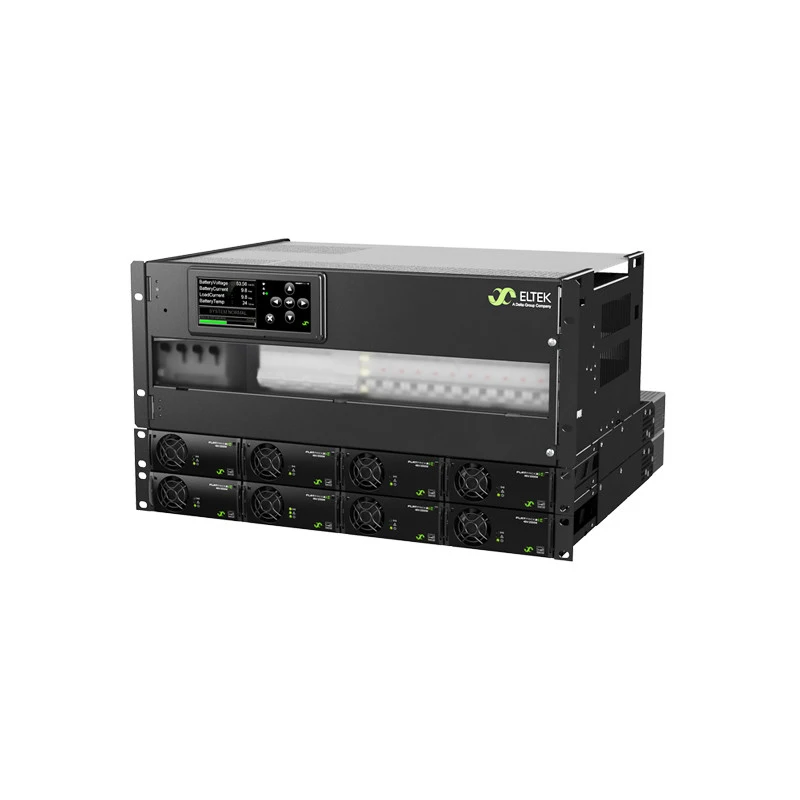

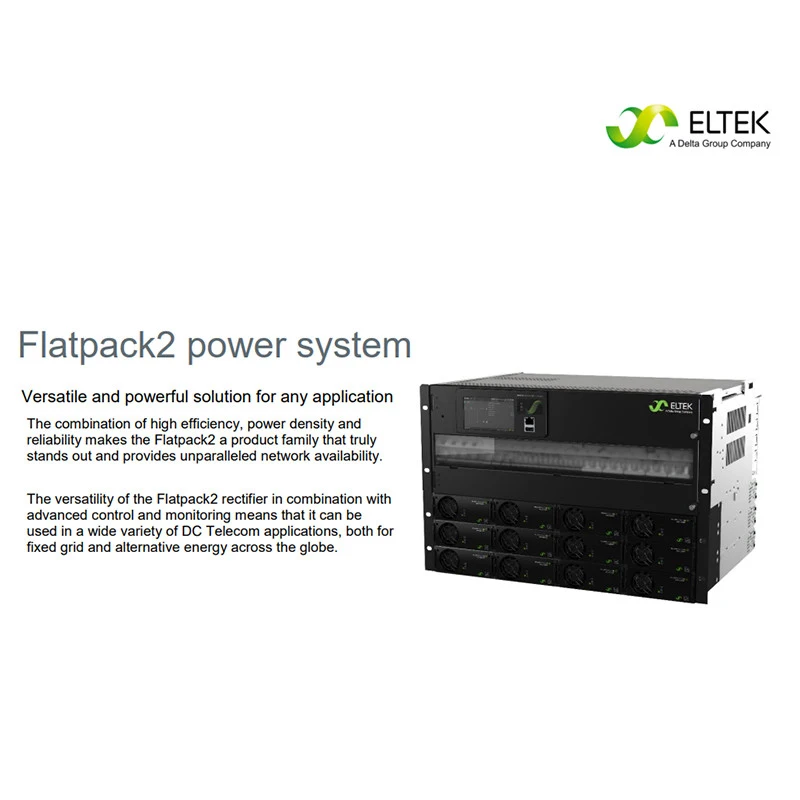

FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U


Product Details
Place of Origin: Guangdong, China
Brand Name: ELTEK
Model Number: Flatpack2 5U-7U Integrated DC Power Supply System

Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: $1,299.00/sets 2-49 sets
Packaging Details: Cartons or Wooden Frame
Supply Ability: 1000 Set/Sets per Month
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button


Highlight: 24KW Telecom Hybrid System, flatpack2 2000w 48v, Telecom Hybrid System 7U

Type:
Telecom Power System
Use:
Telecom
Model:
Flatpack2 5U-7U Integrated DC Power Supply System
Warranty:
12 Months
Part Number:
CTOxxxxx.nnnn
Input Voltage (Maxi):
305VAC
Mains Configuration:
230VAC Single Phase; 230VAC 3 Phase; 230/400VAC 3 Phase (Y)
Output Voltage(Maxi):
60VDC
Max Power:
24kW
Current (maximum):
500ADC
Dimensions:
482 X 380 X 311 Mm
Weight:
6kg
Port:
Shenzhen


FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U

ELTEK FP2 48V 24KW Rectifier Flatpack2 48/2000 SHE 5U-7U Integrated Telecom Power Supply System (CTO20405.nnn)


Product Description


FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U-1

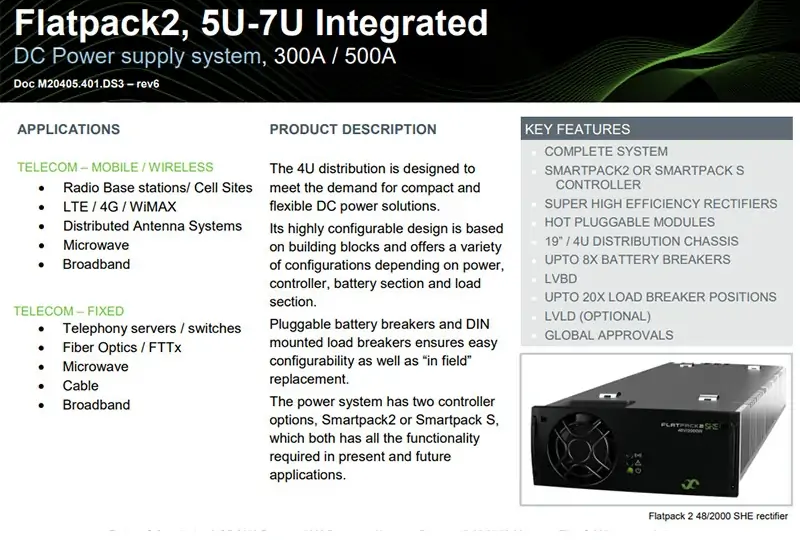

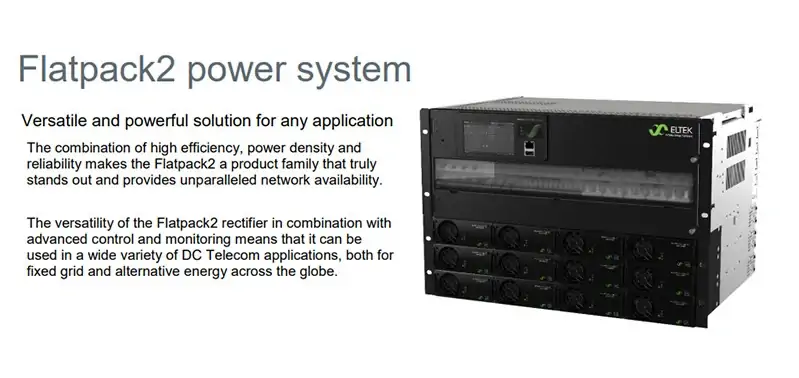

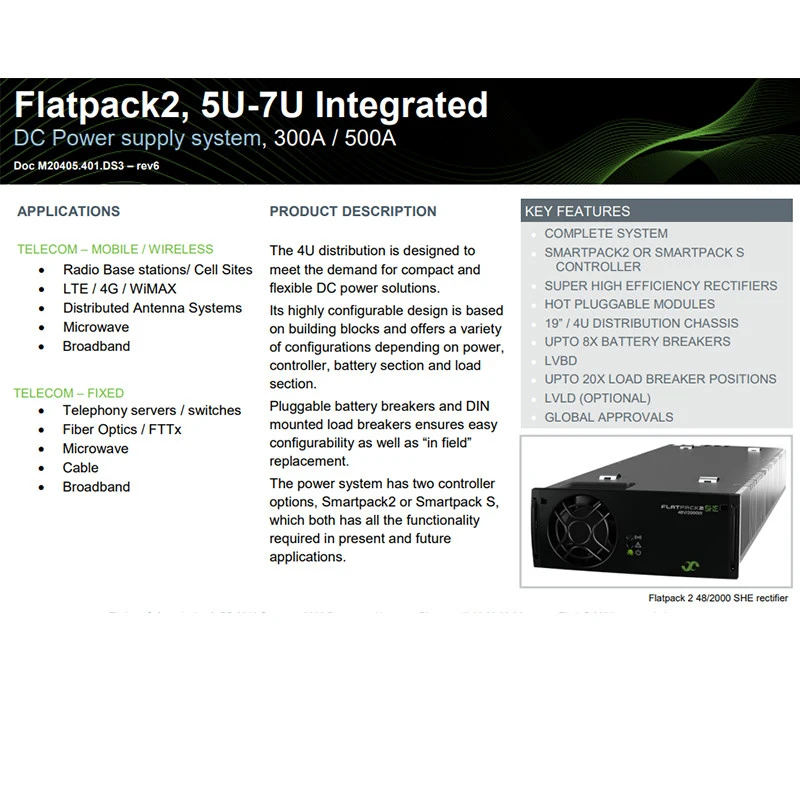

Flatpack2 5U-7U Integrated
The 4U distribution is designed to meet the demand for compact and flexible DC power solutions. It is based on building blocks and
has a variety of configurations depending on power, controller, battery section and load section.

Pluggable battery breakers and DIN mounted load breakers ensures easy configurability as well as “in field” replacement. The power
system has two controller options, Smartpack2 or Smartpack S which both has all the functionality required in present and futureapplications.


Key Features


  • Complete system

  • Smartpack2 or Smartpack S controller
  • Hot pluggable modules
  • 19”/4U distribution chassis with hinged front door
  • Upto 8x battery breakers
  • LVBD
  • Upto 20x load breaker positions
  • LVLD (optional)


  • Global approvals

FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U-3_看图王

FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U-2_看图王FP2 24KW Rectifier Telecom Hybrid System ELTEK Flatpack2 2000w 48v SHE 5U-7U-5_看图王20240109155503_93434


Specification


Model Number
Flatpack2 5U-7U Integrated DC Power Supply System
Type
Telecom Power System
Place of Origin
Guangdong, China
Brand Name
Eltek
Use
Telecom
Model
Flatpack2 5U-7U Integrated DC Power Supply System
Warranty
12 months
Part Number
CTOxxxxx.nnnn
Input voltage (Maxi)
305VAC
Mains configuration
230VAC Single phase; 230VAC 3 phase; 230/400VAC 3 phase (Y)
Output Voltage(Maxi)
60VDC
Max power
24kW
Current (maximum)
500 ADC
Dimensions
482 x 380 x 311 mm
Weight
6kg


Application


11
