Highlight: Eltek Rectiverter 2U Smartpack2 CIOR0402.1, eltek flatpack power system 2U 6kVA, Eltek Rectiverter 2U 6kVA
| Brand: | Eltek | Part No.: | CIOR0402.1xxx |
| AC Output: | 115 VAC / 100-127 VAC | DC Output: | 245 VDC / 194-290 VDC |
| Input Data: | 95-140 VAC / 85 VAC | Input Frequency: | 57-63 & 47-53 Hz |
| Power Max: | 4800 W /2400W | Output Current: | 22,2 A /11.1A |
| Protection: | Fuse In L, Hot Pluggable, Varistor | Controller: | Smartpack2 Touch |
| Controller 2: | Smartpack2 Basic Or Basic Industrial | Weight: | 10KG |
Product Description

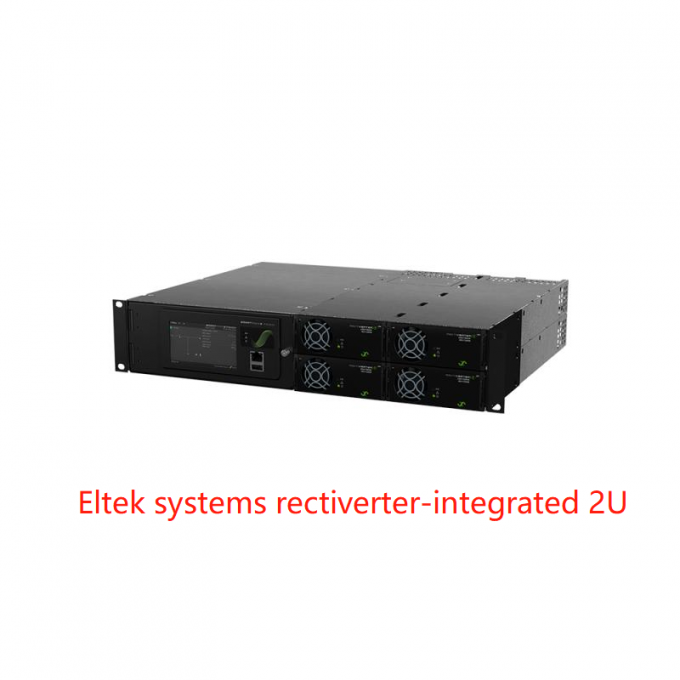

Eltek Rectiverter 2U, 6kVA Integrated System 220 VDC Systems with Smartpack2 Touch & Basic Industrial CIOR0402.XXX
The rectinverter 2U 19 inch integrated system can be used as standar lone system with bulk AC &DC outputs in industrial applications where a 230 /115Vac and 220Vdc back up is needed.
The total output power for both AC and DC is limisted to a total 8KW, AC and DC output limits can be set according to the connected load, where the limitation for AC load is set to max 6kVA and for DC load to max 4KW and 8KW.
Ad additional options, the measuring and signaling can be widely extended with the flexmonitor CAN node.
TELECOM-MOBILE/WIRELESS
LTE/4G/WiMAX
Distributed antenna system
Broadband
Radio base stations/cell sites
POWER UTILITIES
Low & High voltage switchgear
Transformer & SUB stations
Control & protection
SCADA system
RAILWAY & METRO INFRASTRUCTURE
Control & protection
Signaling
Key Features
Compact design and simple installation
Single phase 230 or 115VAC input and output
48Vdc input and output
Up to 4 rectiverter modules
8KW total AC+DC output
Max 6kVA AC output
Max 4KW/ 8KW DC output
1 or 2 pole AC distribution options
1 Pole DC distribution option
Built in transfer technology
Techinical Data
| Models | 8 kW, 230 VAC | 4 kW, 115 VAC |
| Product family | CIOR0402.1xxx | CIOR0402.1xxx |
| AC OUTPUT DATA | ||
| Voltage (default) / (adjustable range) 1) | 230 VAC / 200-240 VAC | 115 VAC / 100-127 VAC |
| Frequency (inverter mode – default) | 50 Hz (adaptive) | 60 Hz (adaptive) |
| Frequency (inverter mode – settable) | 50 Hz, 60 Hz or last synced 50 / 60 Hz (adaptive) | |
| Power maximum (continuous / overload <15s) | 4800 W (6000 VA) / 8000 VA | 2400 W (3000 VA) / 4000 VA |
| Current maximum (continuous / overload <15s) | 26 ARMS / 34,8 ARMS | |
| Current (maximum) quick trip (20ms) | 128 A (6 x nominal) | |
Hold up (Voltage dips) (before switching to battery) | 5 ms | 5 ms |
| THD | < 1,5 % at resistive load | |
| Protection | Fuse in L, Hot pluggable, Varistor | |
| DC OUTPUT DATA | ||
| Voltage (default) / (adjustable range) | 245 VDC / 194-290 VDC | |
| Power (maximum @nominal input) | 4800 W 2) | 2400 W 2) |
| Current (maximum @VOUT ≤ 108 VDC) | 22,2 A 2) | 11,1 A 2) |
| Current sharing (10 - 100% load) | ±5 % of maximum current from 10 to 100 % load | |
| Protection | Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse | |
| INPUT DATA | ||
| AC Mains Input Voltage (range / LV disconnect) | 185-275 VAC / 170 VAC | 95-140 VAC / 85 VAC |
| AC Current (maximum - depends on module type) | 32,8-46 ARMS 3) | 36,8-45,2 ARMS 3) |
| Frequency (default: sync range) | 47-53 & 57-63 Hz | 57-63 & 47-53 Hz |
| Frequency (settable: sync range) | 47-53 Hz, 57-63 Hz or both (adaptive) | |
| Power Factor / THD | > 0,99 at 50% load or more / < 3,5 % | |
| DC Voltage nominal / extended range4) | 204-290 VDC / 180-204 VDC | |
| DC Current (maximum) | 26,7 A / 36 A during overload (15 s) | 12,8 A / 18 A during overload (15 s) |
| Input features | Fuse in L and N, Hot pluggable, Varistor AC input individual screw terminals 4 mm2 for L, N & PE (4x single phase) | |
| OPTIONS | ||

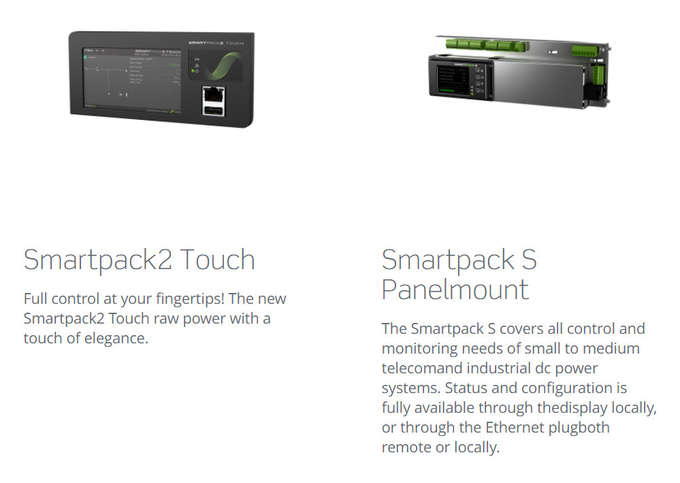

| Control and Monitoring (master unit) | Smartpack2 Touch | |
| Control and Monitoring (basic unit) | Smartpack2 Basic Industrial | |
| Controller CAN node | Fleximonitor (with Relay box) | |
| AC distribution | AC output individual screw terminals 10 mm2 for L, N & PE (1x single phase) | |
| DC distribution | DC bulk connection on 2x M6 bolt | |
| OTHER SPECIFICATION | ||
| Efficiency | > 96 % (mains mode), > 95 % (inverter mode) | > 93 % (mains mode), > 92 % (inverter mode) |
| Operating temperature | -40 to +55 °C (-40 to +131 °F), humidity 5-95 % RH non-condensing | |
| Storage temperature | -40 to +85 °C (-40 to +185 °F), humidity 0-99 % RH non-condensing | |
| Dimensions [W x D x H] | 482 x 440 x 89 mm (2U) (19 x 17,3 x 3,5 inch) | |
| Weight | 9,9 kg (21,8 lbs) | |
| DESIGN STANDARDS | ||
| Electrical safety | EN 60950-1, EN 62040-1 UPS safety | |
EMC | ETSI EN 300 386 V2.1.1, FCC CFR 47 Part 15 EN 62040-2 EN 61000-6-1/-2/-3/-4/-5 | |
Environment | ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2) Normal operating conditions as per IEC 62040-3:2011 clause 4.2. Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised RoHS 3 (2015/863/EU) and WEEE (2008/98/EC) compliant | |
1) Output voltage ranges configured in factory and have individual keying in top chassis 3) If DC port is overloaded pulling the voltage below 194 V the input current may increase above this level. | 2) AC load has priority. Maximum available DC output power and current is dependent on instant AC load and AC input voltage; i.e. maximum 3200 W / 29,6 A at full AC power and nominal input for 230 VAC. 4) Reduced performance - no over load support, and for 200-240 VAC output THD will increased and maximum output power de- rates (to 970 W for 230 VAC @ 180 VDC) | |
Product Display
