Highlight: Eltek Flatpack S 1u 241122.125, 241122.125 Ctos0301.1319, 48v 5.4kw Eltek Flatpack S 1u
| Part No.: | 241122.125 | Cpacity: | 5.4kw |
| Rectifeir: | FlatpackS 48/1800HE | Application: | Telecom ,OTL Marine Etc |
| Input Voltgae: | 220Vac | Output Voltage: | 48Vdc |
| Controller: | Smartpack S | Warranty: | 12 Months |
| Lead Time: | Stock Items |
48v 5.4kw Eltek Flatpack S 1u 241122.125 Ctos0301.1319 Telecom Olt Equipment
Product Description

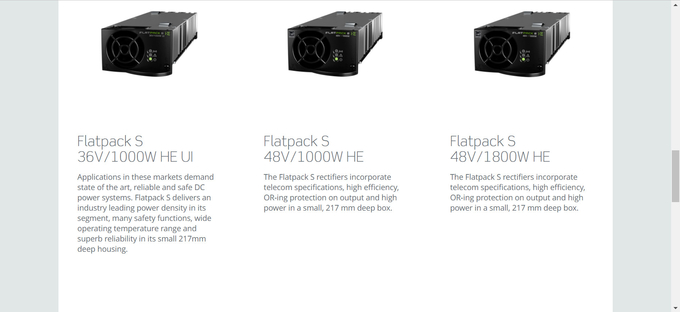

Eltek FLATPACK S 1U 3R SYSTEMS 48V 5.4kw Telecom Small Power Systme p/n CTOS0301.1319 with Flatpack S HE 48V/1800WFlatpack S power system is very smart, reliable and high effciency for telecom field. It has standard configuration also as well as Customized optional. The controller is Smartpack Touch .Rectifiers can be FlatpackS 48V 1000W or FlatpackS 48V 1800W. Max 5.4KW power capacity.
TELECOM
Mobile
Wireless
Fixed line
INDUSTRIAL
offshone
Marine
Process industriy
Techinical Data
| Model | Controller & 48V rectifier | Controller &36V rectifier | Controller & 24V rectifiers |
| Part Number | CTOS0301.XXX | CTOS0301.XXX | CTOSO301.XXX |
| Input Data | |||
| Max Voltage | 305Vac | ||
| Max Current | 9.9A per module | 5.9A per module | 5.9A per module |
| Mains configuration | 230vAC 3*1 phase or 3 phase | ||
| Mains connection | 4 mm² terminal blocks, rear connection | ||
| Frequency | 45 / 65hz | ||
| Output Data | |||
| Voltage | 48Vdc | 36Vdc | 24 Vdc |
| Max current | 125A | 125A | 125A |
| Battery (no breaker portions) | |||
| LVBD (80A latched) | Optional | ||
| Shunt | In positive or negative leg | ||
| Connection (rear) | M6 cable lug | ||
| Load ( no breaker position) | |||
| Connection (rear) | M6 cable lug | ||
| Control or Monitoring | |||
| Smartpack S | 6 input or output connections and Ethernet | ||
| Mechanical Data | |||
| Dimensions : 19 inch * 1U*250mm | |||
| Weight ( including controller ,excluding rectifier ): 4.7kg | |||

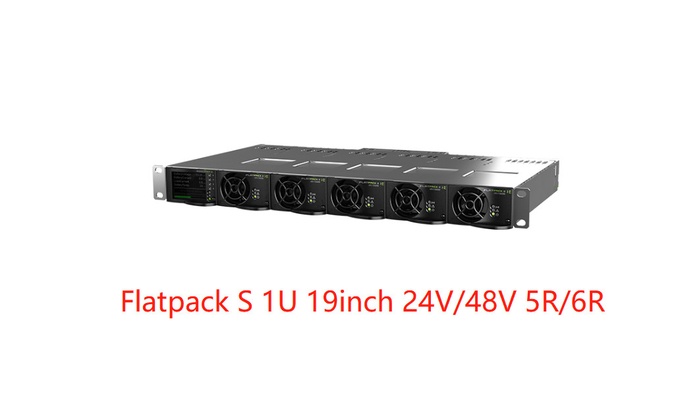

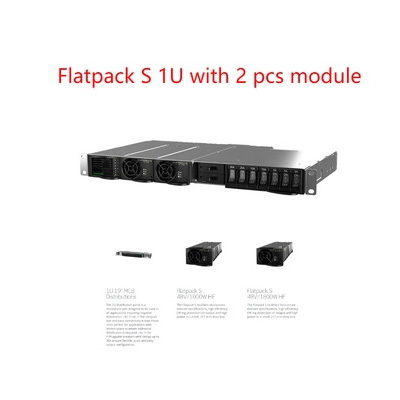

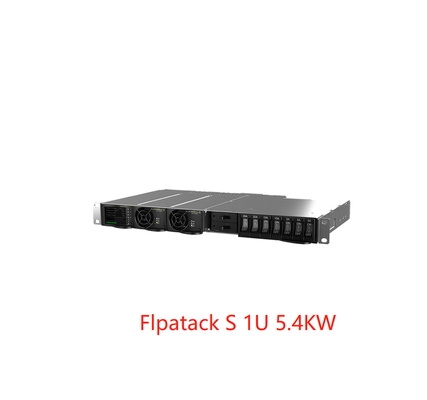

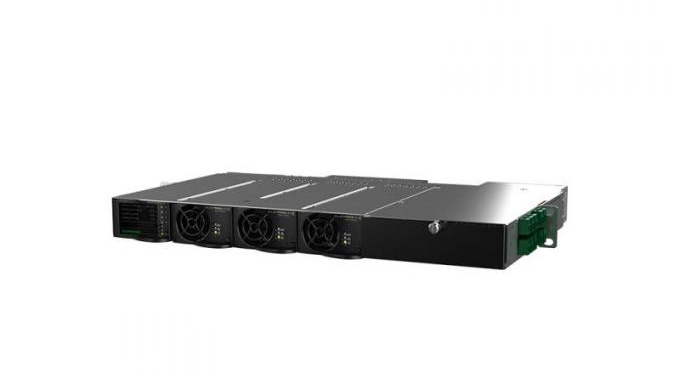

Product Display
