Highlight: Eltek Cabinet 300A 400A, Eltek Cabinet Communication Power Supply 300A, Eltek Cabinet 3000HE SHE
| BrandA: | Eltek | Product Name: | Hybrid 48v System |
| Model Name: | 300A Distribution /500A Distribution | Application: | TELECOM – MOBILE / WIRELESS |
| Capacity: | 300A /500A | Rectifeirs: | FP2 48/3000HE Or SHE |
| Controller: | Smartpack2Touch +Smartpack2 Basic + I/Q Monitor Type | Solar Charger: | Flatpack2 48/3200HE Solar Or Fp2 48/1500he |
Product Description

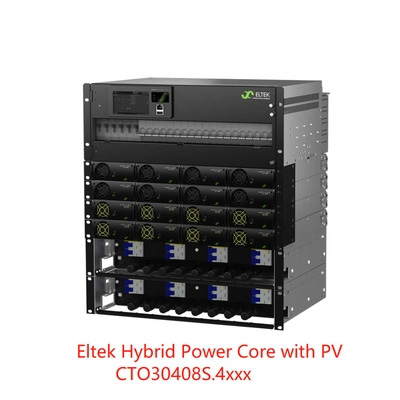

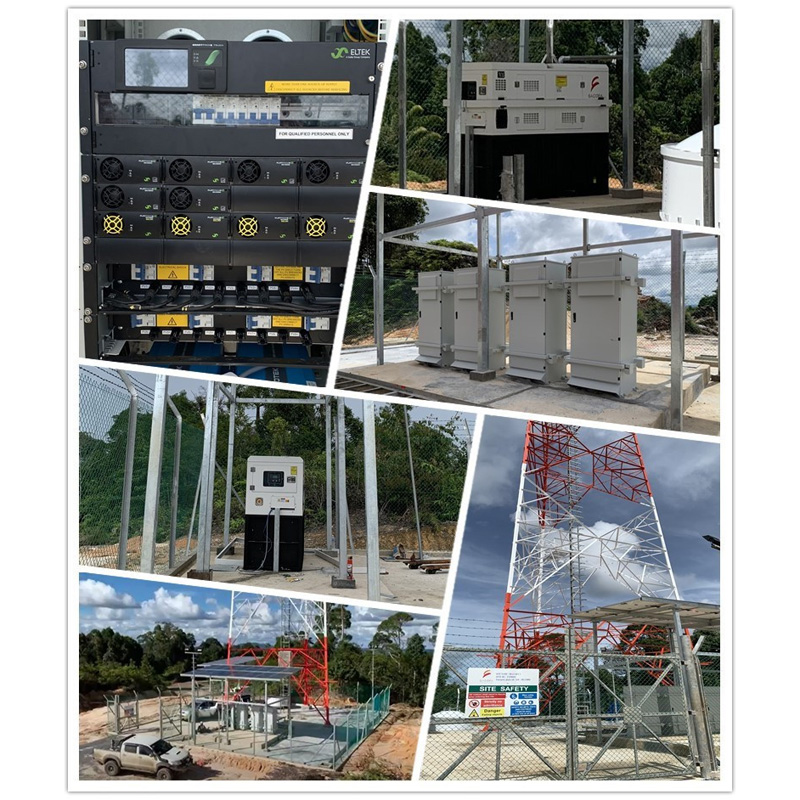

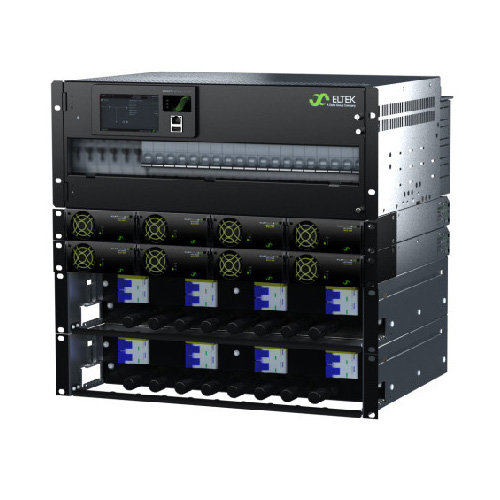

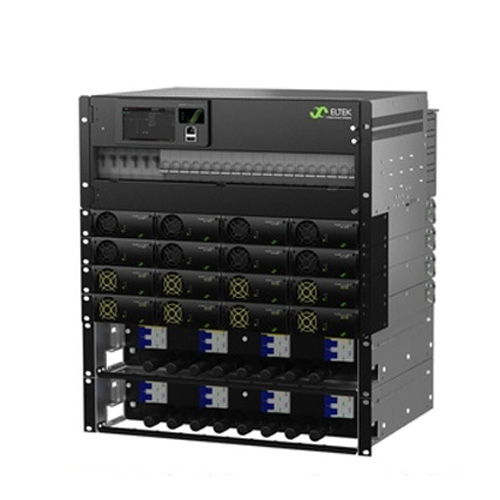

Communication Power Supply Hybrid -48Vdc Cabinet Solar Power System Eltek 300A 400A 500A
Max PV capacity 24kw
PV connection panel with DC SPD (option)
Hot pluggable modules
19”/4U distribution chassis
Up to 8x battery breaker positions
LVBD
Up to 18x load breakers positions
LVLD1
LVLD2 (optional)
Global approvals
Applications
TELECOM – MOBILE / WIRELESS
Radio Base stations/ Cell Sites
LTE / 4G / WiMAX
Distributed Antenna Systems
Broadband
Parameters
| Model | 300A distribution | 500A distribution |
| Part number | CTO30408S.4XXX | CTO3080XXS.4XXX |
| Power Module | ||
| Flatpack2 Rectifiers | FP2 48/3000HE or SHE | |
| Flatpack2 Solar charger | Flatpack2 48/3200HE solar | |
| Input Data (Rectifiers ) | ||
| Voltage range | 85-300vAC (HE model) 85-264Vac (SHE solar ) | |
| Frequency | 45-66HZ | |
| Mains Configuration | 3*1p 230Vac | 2*3 P 400Vac |
| 1*3P 230Vac | Dual mains | |
| Connection | Terminal blocks , 10mm㎡ max | |
| Input data (Solar charger) | ||
| Voltage Range | 85-420Vdc (operating range )/ 100-380Vdc (MPPT range) | |
| Voltage start up | 100Vdc | |
| Max current | 20Adc | |
| PV connection panel | ||
| Service switches for PV arrays | 4 pcs 2 pole | 4 or 8 pcs 2 pole |
| DC SPD Type 2 (option) | Up to 4 pcs | Up to 8 pcs |
| Output data | ||
| Voltage | -48 Vdc | -48Vdc |
| Current (max) | 300A | 500A |
| Battery distribution | ||
| Number of breaker positions | 6 single pole | 8 single pole |
| LVBD | 300A | 500A |
| Battery breaker type | Plug in type | |
| Load Distribution | ||
| Number of load positions | Up to 18*18 mm | Up to 16*18 mm |
| LVLD1 | 300A | 300A |
| LVLD2 (optional) | 150A | 150A |
| Load breaker type | DN rail mounted | |
| Control and Monitoring | ||
| Control and monitoring unit | Smartpack2 Touch +Smartpack2 Basic + I/Q monitor Type | |
| Mounting location | Door panel mounted | |
| Local operation | As the user manual | |
| Remote operation | Ethernet for remote /local monitring and control via Web | |
| Other Spec. | ||
| Operation tem. | -40 to +70 | -40 to +70 |
| Storage tem. | -40 to +70 | -40 to +70 |
