Highlight: Eltek Type 3 Outdoor Telecom Cabinets, Type 3 eltek outdoor cabinet 1.2m, eltek outdoor cabinet 1.5m
| Brand: | Eltek | Product Name: | Telecom Outdoor Cabinet |
| Type: | Type 3 | Height: | 1.2/1.5/1.8/2/2.2M |
| IP Grade: | IP55 | Applications: | Radio Access Networks (2G/3G/4G/LTE/Wimax） |
| Materials: | Galvanized Steel | Color: | Light Grey Or Optional |
| Cable Glands: | Bottom Cables Or Optional | Package: | Wooden Pacakge |

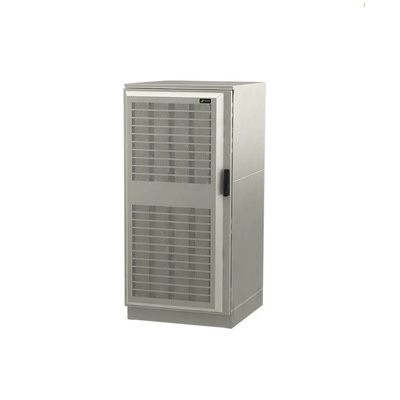

Eltek Type 3 Outdoor Telecom Cabinets 1.2m 1.5m 1.8m With Aircon
Product Description
Eltek Type 3 Outdoor Cabinet Systems Outdoor Power Cabinet 1.2m / 1.5m / 1.8 m / 2m / 2.2 height with aircon
The Type 2 cabinet platform is designed for a variety of applications and can be tailored to fit your specific needs. The cabinet is well suited for power, batteries and telecom/industrial equipment, all integrated into a robust package.
Eltek Type 3 cabinet platform is designed for a variety of applications and can be equipped with your special demands. The cabinet is well suited for power, batteries and telecom or industrial equipment. All integrated into one package.

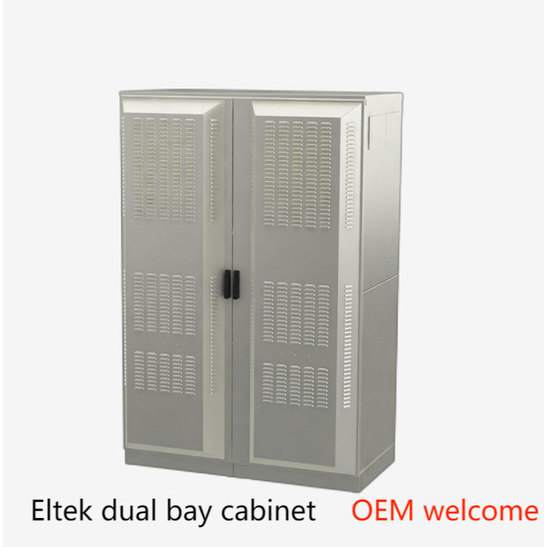

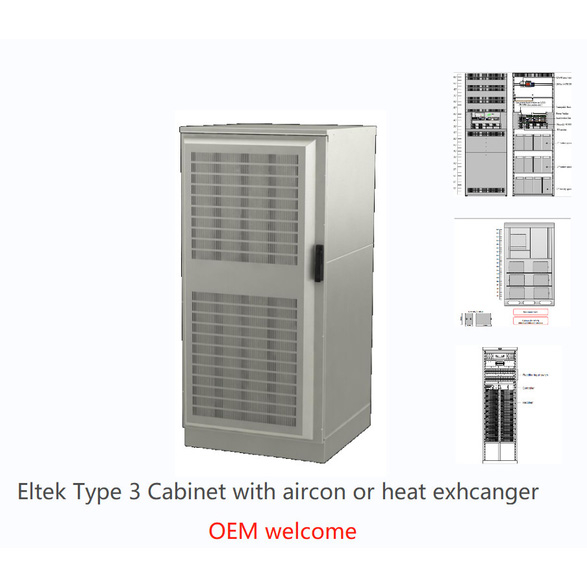

The solutions has a unique cube deigns that give flexibility to various heights of cabinet. For example, it includes 1.2m,1.5m,1.8m.2m and 2.2m. With single bay cabinet, dual chamber cabinet and dual bay cabinet, all them can be quipped with heat exchanger or aircon cooling.
Application
The Type 3 cabinet is well suited for a wide range of telecom and industrial application as below :
Radio Access Networks (2G.3G,4G,5G )
Optical Networks
Cable TV
DSL
Scada
Rail and Metro
Power Distribution
Type 3 Outdoor cabinet Configuration
| Model | 1.2m | 1.5m | 1.8m | 2.0m | 2.2m |
| Physical Specification | |||||
| Width (mm) | 700 | 700 | 700 | 700 | 700 |
| Depth(mm) | 770 | 770 | 770 | 770 | 770 |
| Weight(kg) | 68.6kg | 94kg | 100kg | 102.5 | 105kg |
| Rack Space | 21U | 28U | 34U | 39U | 44U |
| The above info does not include air cooling and power core | |||||
| Thermal Management Optional | |||||
| Cooling capacity | 2000W | ||||
| Fan and filter | Single or Dual fan (Opitonal) | ||||
| Fans Spec. | 48Vdc/ 100W/ IP44 | ||||
| Fans speed control | Temp. Regulated ;Easy change inlet filter; Easy change outlet filter | ||||
| Physical Spec. | Integrated into the cabinet | ||||
| Construction Spec. | |||||
| Material | Galvanized steel | ||||
| Splash Guard | Aluminium made with large openings to ensure low speed airflow | ||||
| Heater(S) | Optional one or two heaters | ||||
| Filter detection | Optional | ||||
| Air conditioning unit | |||||
| Power Input | AC-ACU,0.57KW AC-ACU 2KW DC-ACU 0.52KW DC-AC 2KW | ||||
| Power Input | 230Vac 50/60hz | 230Vac 50/60hz | 48Vdc nominal | 48Vdc nomial | |
| Cooling capacity | 570W@50hz | 2000W | 520W | 2000W | |
| Heating capacity | 500W | 1000W | 500W | 600W | |
| Hybrid Cooling Unit | Active cooling /Free cooling solutions (AC or FC) | ||||
| Construction Spec. | |||||
| Skin Material | 1.5 mm thick electro- galvanized steel (corrosion-resistant) | ||||
| Frame Material | Galvanized Steel | ||||
| Power Coat Paint | Outdor Polyester (Light gray RAL7035 coating) | ||||
| Insulation | Closed cell insulation | ||||
| Rail Spec | |||||
| Constitution | Galvanized Steel | ||||
| Mounting Pattern | EIA Standard with holes for cage nuts / Optional M5 or M6 kits | ||||
| Mounting | 19 inch mounting /23 inch moutning for OEM | ||||
| Cable Entry | Bottom cable access | ||||
| Related Configuration of Power Core | |||||
| Power Core | CTO20808S.XXX or optional | ||||
| Rectifiers | FP2 48/2000HE or FP2 48/3000HE or Optional | ||||
| Controller | Smartpack S panel /Smartpack2 etc. | ||||
