Flatpack2 Big System 48Vdc 84KW Telecom Power Indoor Cabinet Oem


Basic Infomation
Place of Origin: CN
Brand Name: Eltek
Certification: CE, UL
Model Number: Indusitral bulk feed system

Payment & Shipping Terms
Packaging Details: Carton Pacaked
Delivery Time: 10-12 weeks
Payment Terms: L/C,T/T
Supply Ability: 500 sets per month
Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button


Highlight: 48V Telecom Power System, OEM Telecom Power System, 48V Telecom Battery Systems

Brand:
Customized
Product Name:
Large Power System Indoor Cabinet
Input AC Voltage:
220Vac Or 380Vac
DC Output Power:
84kw
DC Output Current:
600A
Marerial:
Stainless Steel
Dimension:
2000*600*600mm
Controller:
Smartpack S
Rectifeirs:
Max 24 Pcs MCCB:  630A/3P

Flatpack2 Big System 48VDC 84KW Telecom Power Indoor Cabinet OEM


Product Description

Flatpack2 Large DC Power System Power Cabinet DPR6000B cabinitzed -48Vdc telecom dc power systems

OEM or ODM welcomed


Techinical Data

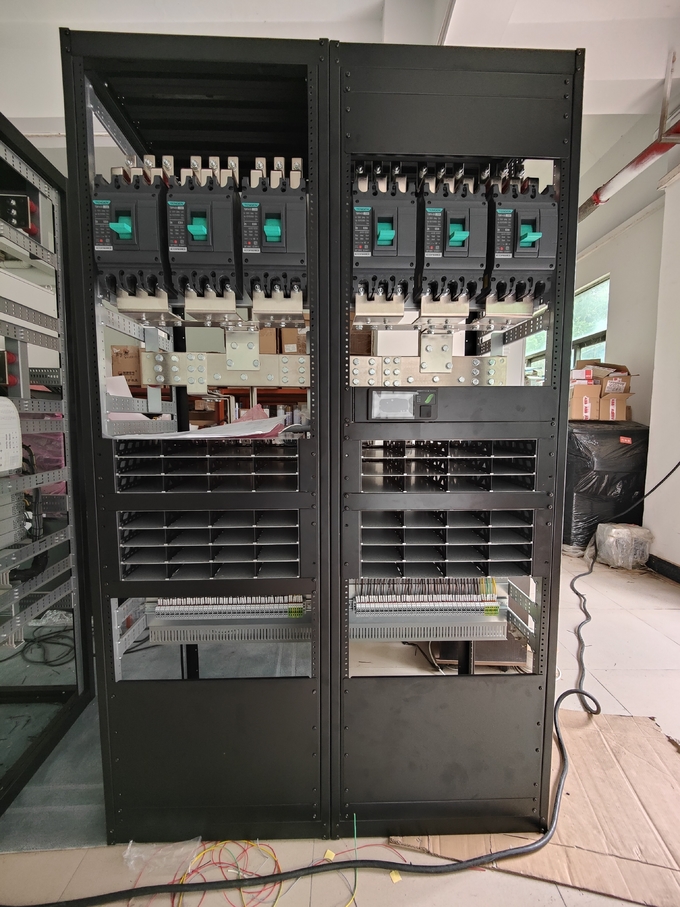

2 cabinet connected together . One is master cabinet, One is salve cabinet.

Max 48V 168kw, Each cabinet is 84kw.
Each rectifier cabinet max capacity 48V 84KW, 28 slots for modules.
Terminal for 3 phase 240Vac mains input,
C class SPD,
3*630A/3P MCCB load braker;
Master cabinet 1pc Smartpack Touch controller ;
MCB, fuse SPD included.


Parameters

Product Name Big system
Capacity 84KW each cabinet  ( OEM welcomed )
Dimension 2000*600*600mm

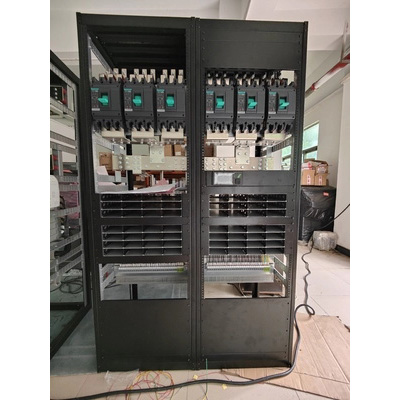

Product Display

Flatpack2 Big System 48Vdc 84KW Telecom Power Indoor Cabinet Oem-2_看图王2122
