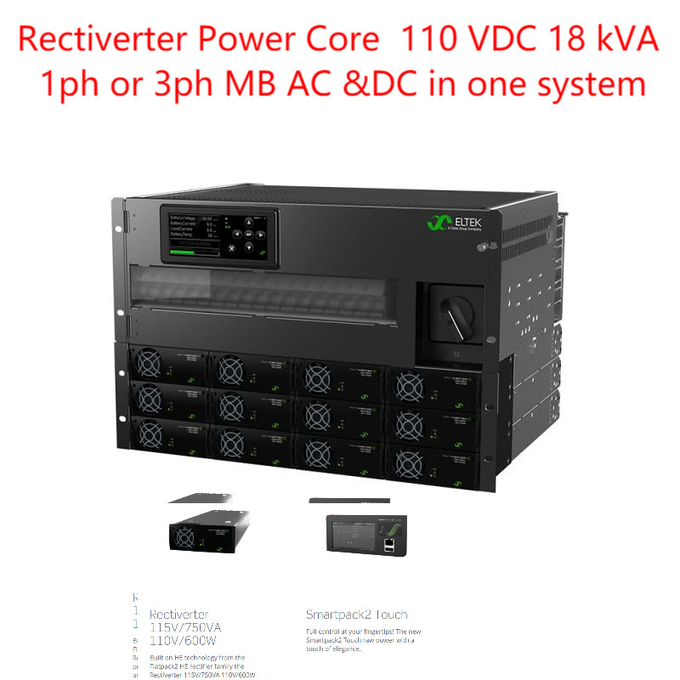

Eltek Rectiverter Power Core 110 VDC 18 kVA 1ph or 3ph Up to 18Kva AC & 14.4kw
110Vdc output (Part No. CIOR1207.1xxx)
Rectiverter power core combines booth AC and DC feed into one common unit which provides AC backup power for 3-phase or single phase AC loads, and 110 VDC power for DC loads and battery charging.
Total output power for booth AC and DC output is limited to max 24 kW. AC and DC output limits can be set according to the attached load.

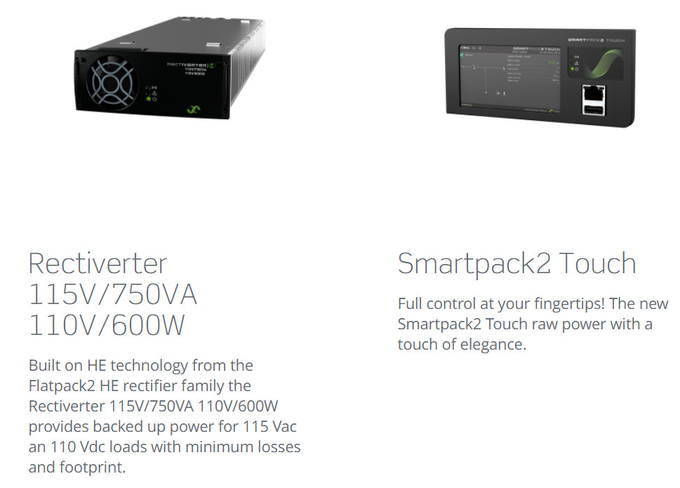

Rectiverter module
Key Features
Techinical Data
| Models / ordering information | 24 kW, 400 V 3ph |
| Product family CIOR1207.1xxx | |
| AC OUTPUT DATA | |
| Voltage (default) / (adjustable range)1) 230 VAC / 200 - 240 VAC 400 VAC 3 phase (Y) / 346-415 VAC | |
| Frequency (default inverter mode) 50Hz (adaptive) | |
| Frequency (set-able inverter mode) 50Hz, 60Hz or last synced 50/60Hz (adaptive) | |
| Power maximum (continuous / overload (<15s) ) 14,4 kW (18 kVA) / 24 kVA | |
| Current maximum/phase (continuous / overload (<15s) ) 78ARMS / 104,4ARMS | 26ARMS / 34,8ARMS |
| Current (maximum) Quick trip/phase (20ms) 384 A (6 x nominal) | 128 A (6 x nominal) |
| Hold up (Voltage dips) (before switching to battery) > 5 ms @ 14,4 kW load | |
| THD < 1.5 % at resistive load | |
| Output features Fuse in L and N, Hot pluggable | |
| DC OUTPUT DATA | |
| Voltage (default) / (adjustable range) 122,5 VDC / 97 - 145 VDC | |
| Power (maximum @nominal input) 14,4 kW 2) | |
| Current (maximum @VOUT ≤ 108 VDC) 133 A 2) | |
| Hold up time, maximum output power >10ms; VOUT > 41 VDC | |
| Output features Short circuit proof, Over voltage Shutdown, Bulk DC output connection to M8 bolt | |
| INPUT DATA | |
| AC Mains Input Voltage(3 phase Y) 185 - 275 VAC,(single phase) 320 - 475 VAC ,(3 phase Y) | |
| AC Current/phase(at nominal output voltage) (depending on module type) 84-144 ARMS 4) | 28-48 ARMS 4) |
| Frequency (default: sync range) 47-53 & 57-63 Hz | |
| Frequency (set-able: sync range) 47-53 Hz, 57-63 Hz or both (adaptive) | |
| Power Factor / THD > 0.99 at 50% load or more / < 3.5% | |
| DC Voltage nominal / extended range (no overload)3) 102 - 145 VDC / 90 - 102 VDC | |
| DC Current (maximum) 150 A / 216 A during overload (15s) | |
Fuse in L and N, Hot pluggable, Varistor, Hot pluggable Input features AC input individual screw terminals 10 mm2 for L1,L2,L3, or L1,L1,L1 + N & PE Bulk DC input connection to M8 bolt Bulk DC battery connection to M8 bolt | |
| OPTIONS | |
| Control and monitoring (see Smartpack2 datasheet) Smartpack2, including industrial basic & I/O monitor type 2 | |
| 1 pole AC distribution (L connection directly on MCB) 1-18 pc, 2-20A, C or B characteristics | 1-18 pc, 2-20A, C or B characteristics |
| 3 pole AC distribution (L1-L3 connection directly on MCB) - | 1-6 pc, 2-20A, C or B characteristics |
