Highlight: 42U outdoor electric cabinet, outdoor electric cabinet with cooling, weatherproof data cabinet IP55 IP65
| Brand: | Eltek | Product Name: | Telecom Enclosures /Telecom Cabinet |
| Type: | Double Door Telecom Enclosures | Height: | 42U Or Optional |
| IP Grade: | IP55/ IP65 | Applications: | Telecom Station Or Others |
| Materials: | Galanvized Steel | Color: | Light Grey Or Optional |
| Cable Glands: | Bottom Cables Or Optional | Package: | Wooden Pacakge |

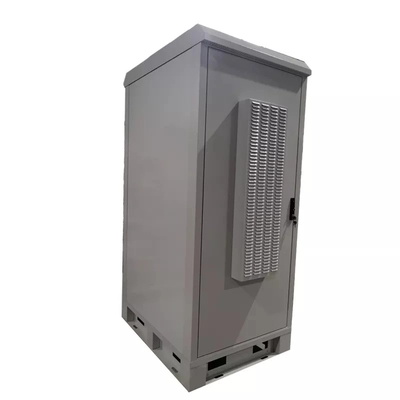

42U Outdoor Electric Weatherproof Data Cabinet With Cooling IP55 IP65
Product Description
Factory Price Double door waterproof metal outdoor electric cabinet enclosures with cooling
Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP65.
-Supportcustom-made..
Product Features
Attractive powder coat finish
Galvanised steel base
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test
Technical Data Sheet:
Structure
Internal Dimension(H*W*D) :Standard 40U *800*1100mm or any customized size
External Dimension(H*W*D) : Standard 2100*900*1200mm or any customized size
Internal capacity:18U, 22U,24U,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Ventilated door :With two door, with special lock for outdoor cabinet (support padlock)
Hinge :Embedded
Material: Material left ,right and back part are color steel plate,other parts are Galvanization plate ,insulation thickness
45mm,insulation cotton material is PEF
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
Structure : Assembly
Cable enter method :Bottom φ50*5 or customer requirement.
Color :RAL7035/Pantone428C, powder coating finish
Ingress Protection: IP55
Noise Level :60-65dB
Temperature Control Cooling :48vdc high speed
Lighting :LED lamp
48V LED lamps, it will turn on when the door is opened; it will turn off when the door is closed.

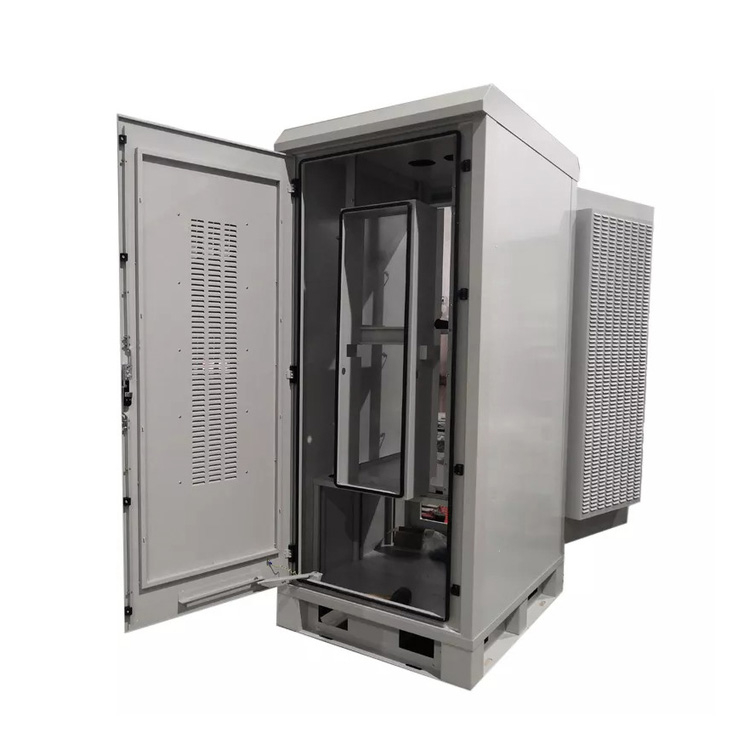

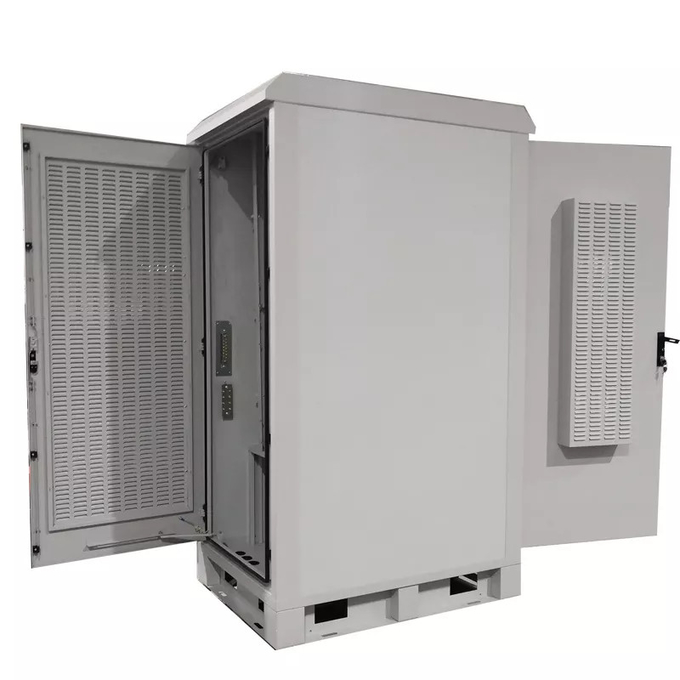

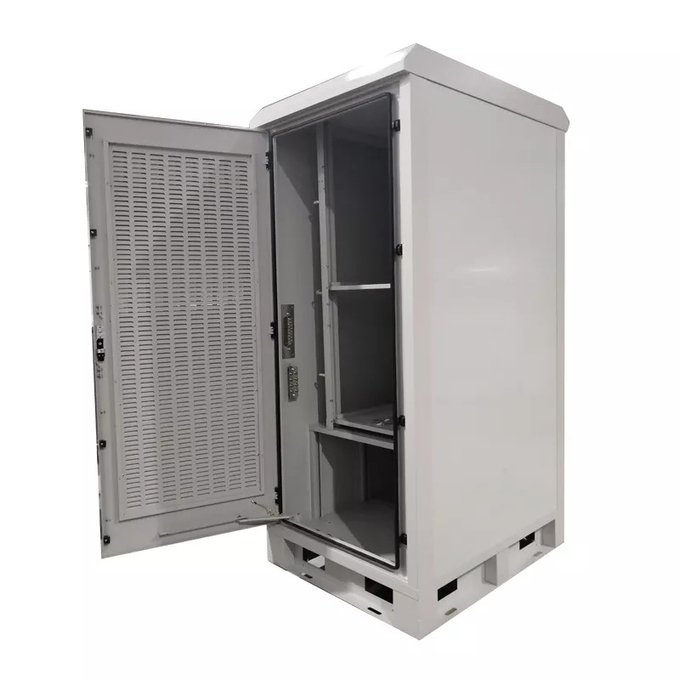

Product Display
Why Choose Us
