Highlight: Eltek Type 4 outdoor telecommunication cabinet, outdoor telecommunication cabinet 1.5m 2m, outdoor telecom enclosures 1.5m 2m
| Brand: | Eltek | Product Name: | Telecom Outdoor Cabinet |
| Type: | Type 4 /Type 3 | Height: | 1.5m /2m |
| IP Grade: | IP55 | Applications: | Radio Access Networks (2G/3G/4G/LTE/Wimax） |
| Materials: | Galvanized Steel | Color: | Light Grey Or Optional |
| Cable Glands: | Bottom Cables Or Optional | Package: | Wooden Pacakge |

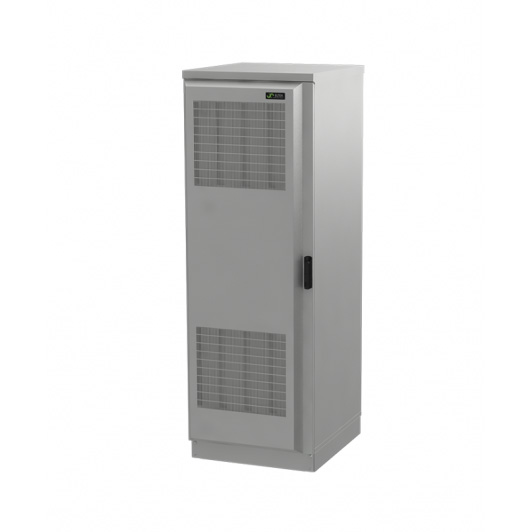

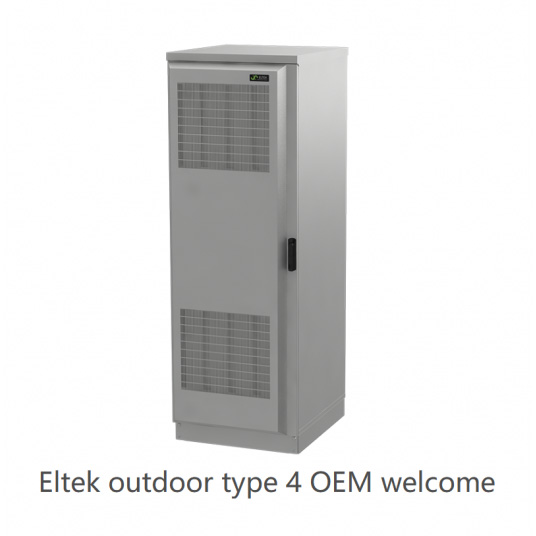

Eltek Type 4 Outdoor Telecommunication Cabinet Enclosures 1.5m 2m
Product Description
Eltek Outdoor Telecom Enclosures 1.5m and 2m height Type 4 Communication Cabinet
The Type 4 telecom power outdoor cabinet is a new generation platform designed to meet customer needs, give configuration flexibility and supports a variety of applications.
Applications
The Type 4 OD cabinet is well suited for a wide range of Telecom applications such as:
Radio Access Networks (2G, 3G, 4G / LTE / WiMax)
Optical Networks
Cable TV
DSL
Key Features
SINGLE BAY CABINET SUITABLE FOR:
DC POWER
BATTERY BACKUP
TELECOM EQUIPMENT or combination of above
19” EQUIPMENT SPACE
GALVANIZED STEEL CONSTRUCTION
DOOR MOUNTED THERMAL
MANAGEMENT SYSTEM
WIDE RANGE OF OPTIONS
THERMAL INSULATION
DOOR SWITCH
DOCUMENT FOLDER
Type 4 Outdoor cabinet Configuration
| MODEL | 1.5mm | 2.0mm | |
| PHYSICAL SPECIFICATIONS | |||
| Exterior Width | 705mm | 705mm | |
| Exterior Depth * | 772mm | 772mm | |
| Exterior Height | 1456mm | 2068mm | |
| Weight * | 61kg | 67kg | |
| Rack space | 27U | 39U | |
| * Info does not contain thermal management system options | |||
| THERMAL MANAGEMENT SYSTEM | |||
| Fan and Filter | See page 2 for details | ||
| CONSTRUCTION SPECIFICATION | |||
| Skin Material | 1.0mm thick electro-galvanized steel (corrosion-resistant) | ||
| Frame Material | 2.0mm galvanized steel | ||
| Powder Coat paint | Outdoor Polyester coating, Light grey RAL 7035 | ||
| DOOR SPECIFICATION | |||
| Locking | Multi-point latched, available with an optional euro lock cylinder | ||
| Gasket | Door gasket rated for outdoor use | ||
| Door stop | Wind latch to hold door during maintenance (120°) | ||
| OTHER SPECIFICATIONS | |||
| Thermal insulation | Optional closed cell thermal insulation | ||
| Cable entry | Bottom Front cable access through 2x FL-21 cut-outs Various glands available upon request | ||
| Battery trays | Optional battery tray(s) capable of holding a set of batteries up to 280kg | ||
| Plinth | Footprint (WxD): 692x742mm, Height: 104mm Optional plinth covers (front, rear, sides) | ||
| Shipping | Shipments made in an upright position on pallet | ||
| Other general options | Door switch, Document folder, Smoke detector, AC service socket, Service light (48VDC), PC shelf | ||
| DESIGN STANDARDS | |||
| Electrical safety | IEC 60950 -1 /-22 | ||
| EMC | ETSI EN 300 386:V2.1.1 EN 61000-6-1 /-2 /-3 /-4 FCC CFR 47 Part 15 | ||
| Environment | ETSI EN 300 019-1-1, Class 1.3 ETSI EN 300 019-1-2, Class 2.3 ETSI EN 300 019-1-4, Class 4.1 Ingress Protection EN 60529, IP55 | ||
| ORDERING INFORMATION | |||
| PART NUMBER | DESCRIPTION | MOQ | |
| CTxxxxxx.nnnn | Power system configured with Type 4 cabinet | 1 pc | |

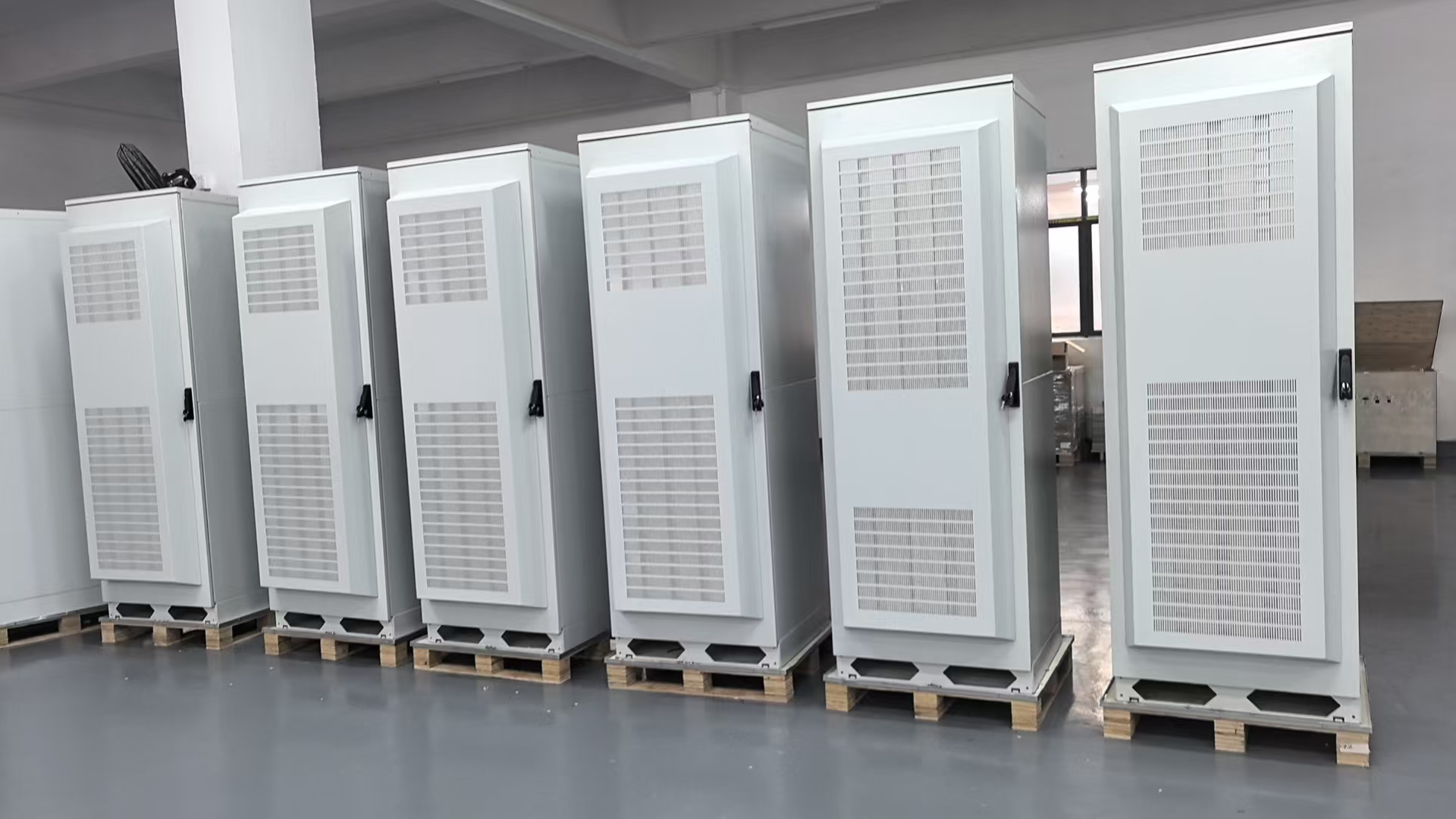

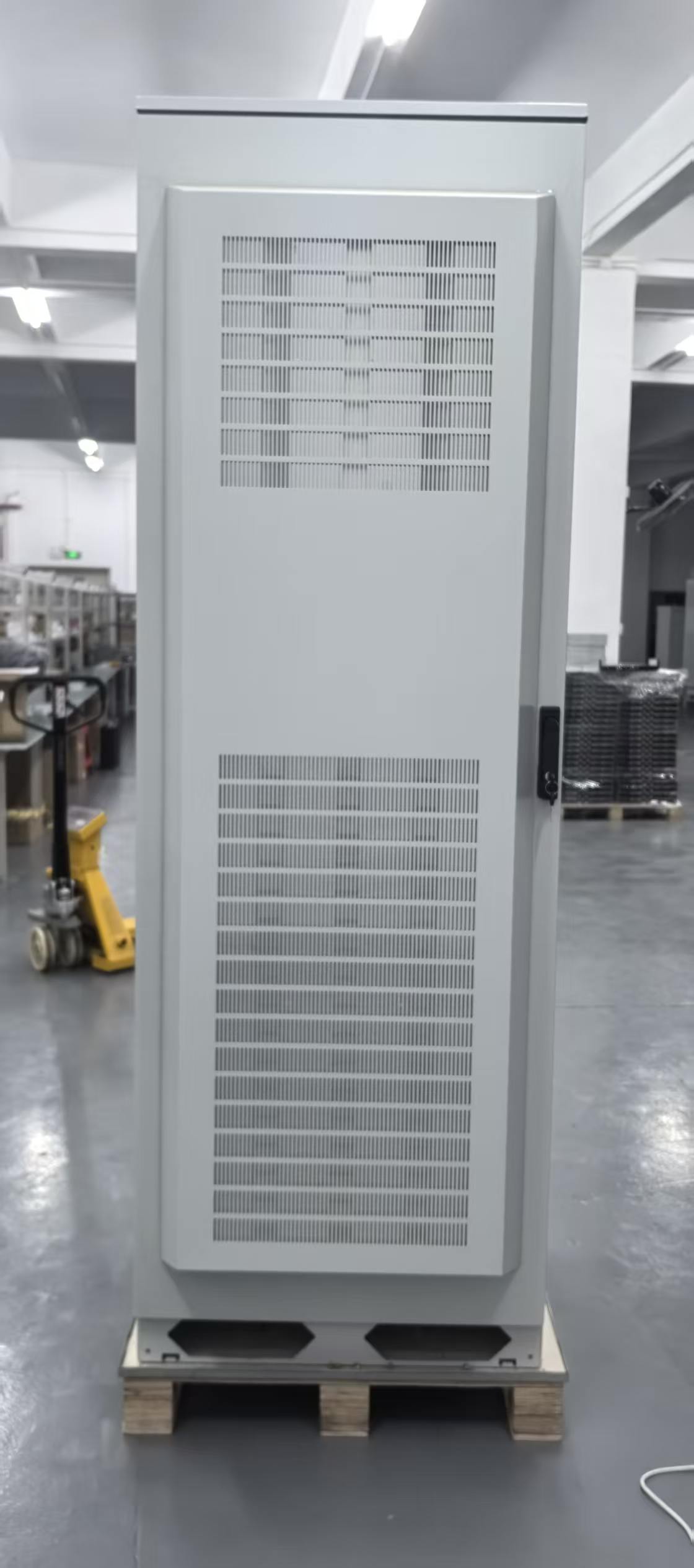

Product Display
