Product Overview

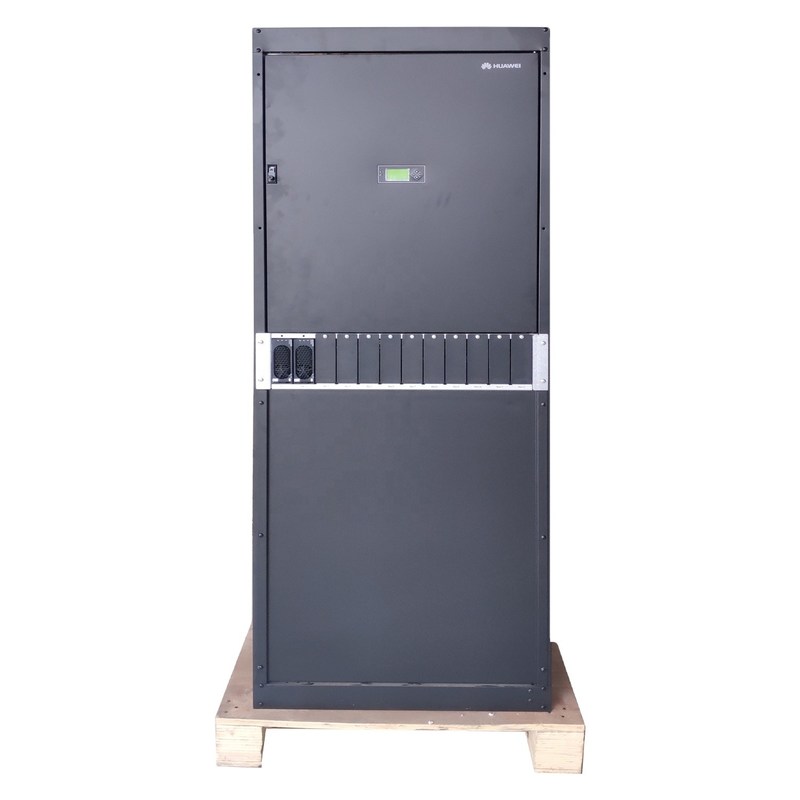

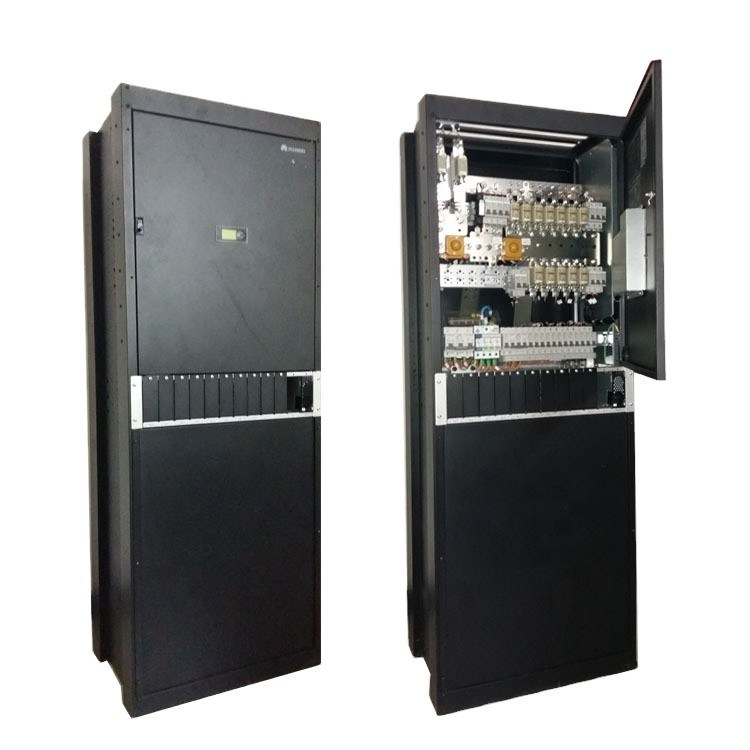

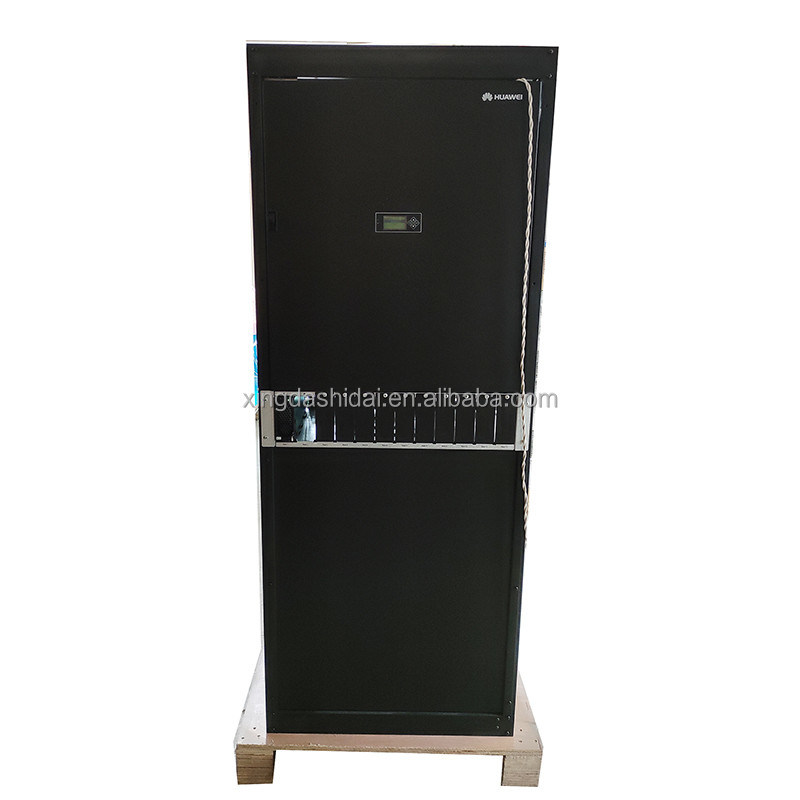

The TP48600B-N16C1 indoor telecom rack power cabinet is integrated AC to DC high-capacity power enclosure developed for indoor data center, 4G/5G indoor base station and enterprise communication equipment room, adopting high-reliability 3000W rectifier modules to convert wide-range AC into stable adjustable -48VDC, with maximum rated output up to 600A total capacity. Featuring standard 19-inch internal installation space, front maintenance layout and intelligent centralized monitoring, this rack cabinet supports flexible module quantity configuration and dual output design, matching various lithium/lead-acid battery groups for uninterrupted backup power. Available in standard black and customizable shell color options, widely deployed for IDC room, access network equipment room and industrial communication power transformation projects.
Key Features
Standard indoor standalone cabinet structure, compatible 19-inch internal rack installation, black standard finish with customizable body color
Wide AC input range 220V single-phase / 220~380V three-phase universal, 50/60Hz frequency adaptability for unstable mains and generator power
Nominal adjustable DC output 42~58VDC(default 53.5VDC), max total output current 600A, single rectifier rated 3000W high efficiency design(≥96%)
Hot-swappable high-reliability rectifier modules, plug-and-play replacement without full system power off, reduce field maintenance downtime
Built-in intelligent monitoring unit, real-time voltage/current/temp collection, multi-stage LVD battery protection and remote communication function
Dual DC output distribution design, multi-path circuit breakers configured for multi-group load independent power supply
Optimized internal air duct & intelligent temperature-controlled fan cooling, stable running under -20℃~+55℃ ambient
Complete AC/DC surge & lightning protection, pass industry telecom safety standard, support OEM cabinet appearance & internal configuration customization
Technical Specifications
| Item | Details |
| Model | TP48600B-N16C1 |
| Brand | XDSD |
| AC Input | Single 220V / Three-phase 220~380V, 50/60Hz |
| Nominal DC Output | 48VDC(Adjustable:42~58VDC, default53.5V) |
| Max Output Current | 600A |
| Single Rectifier Power | 3000W |
| Output Type | Dual DC Distribution Output |
| Cabinet Color | Standard Black, Customizable |
| Mount Standard | Internal 19 Inch Rack Layout |
| Cooling | Intelligent Thermostatic Fan Cooling |
| Working Temp | -20℃ ~ +55℃ |
| Storage Temp | -40℃ ~ +70℃ |
| MOQ | 1 Set |
| Unit Price | $1587 / Set (≥1pcs) |
| Monthly Supply | 200 Sets |
| Delivery Port | Shenzhen |
| Warranty | 12 Months |
Applications
Indoor Data Center & Edge IDC Core Equipment DC Backup Power
4G/5G Indoor Macro Base Station & Room Communication Power Supply
FTTx Large Central OLT Equipment Room Power Cabinet
Enterprise Private Network & Industrial Control Communication Power System
Railway, Security Monitoring Centralized Uninterrupted DC Power Projects
Old Telecom Station Power System Upgrade & Renovation
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
