Highlight: Outdoor Telecom Cabinets 48Vdc 700A, Eltek 36KW street cabinets telecoms, street cabinets telecoms 48Vdc 700A
| Brand: | Eltek | Part No.: | CTO31240.nnnn |
| Protection Level: | IP65 | Type: | 36KW Outdoor Cabinet |
| Rectifeirs: | FP2 Rectifeirs 2000W /3000W | Product Name: | Telecom Outdoor Cabinet |
| Application: | Telecom, Railway Station, Base Station; Outdoor Cabinet For BTS | Size: | Type Enclousre |
| Service: | OEM Or ODM | Cooling System: | Aircon Or Heat Exchanger |
| Warranty: | 3 Years | Input Voltage Max: | 264Vac |
| DC Intput Voltgae: | 57,6 VDC | Dimension: | 705 X 2068 X 831 |
| MmWeight: | 168 Kg |
Eltek Flatpack2 36KW Outdoor Telecom Cabinet IP55 -48Vdc 700A
Product Description
Eltek Flatpack2 36KW Outdoor Cabinet with Type 4 Enclosure -48Vdc 700A Cabinet for Telecom (CTO31240.nnnn)
Product Overview
The Eltek Flatpack2 36KW outdoor cabinet combines cost-effective design, power density, and reliability for unparalleled network availability. Designed for telecom applications with IP55 protection, this system features our Type 4 enclosure platform that can be tailored to specific requirements.
Key Features
Complete outdoor power system solution
Smartpack R controller for advanced management
Ethernet port for remote monitoring and control
Super High Efficiency rectifiers
Hot pluggable modules for easy maintenance
8x battery breaker positions
16x load MCB positions
IP55 protection rating
Technical Specifications
| Attribute | Value |
| Brand | Eltek |
| Part No. | CTO31240.nnnn |
| Protection Level | IP65 |
| Type | 36KW Outdoor cabinet |
| Rectifiers | FP2 rectifiers 2000W/3000W |
| Applications | Telecom, Railway Station, base station |
| Cooling System | Aircon or heat exchanger |
| Warranty | 3 years |
| Input Voltage Max | 264Vac |
| DC Input Voltage | 57.6 VDC |
| Dimensions (W×D×H) | 705 × 2068 × 831 mm |
| Weight | 168 kg |
Detailed Parameters
| Parameter | Specification |
| Model | 36KW |
| Power Module | Flatpack2 48/3000 SHE |
| Input Voltage Range/Frequency | 85-264 VAC / 45-66 Hz |
| Output Voltage | -48 VDC |
| Maximum Load Current | 700 A |
| Operating Temperature | -40 to +45°C |
| Dimensions | 705 × 831 × 2068 mm |

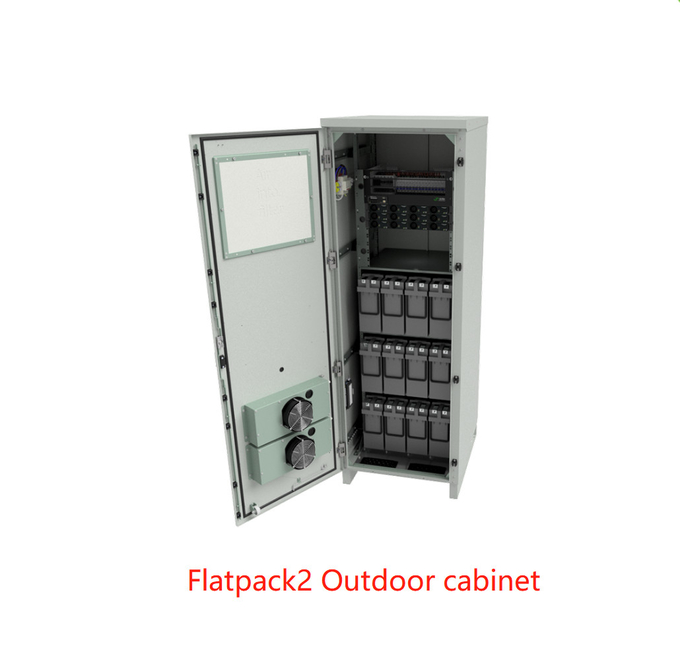

Product Display
