Product Overview

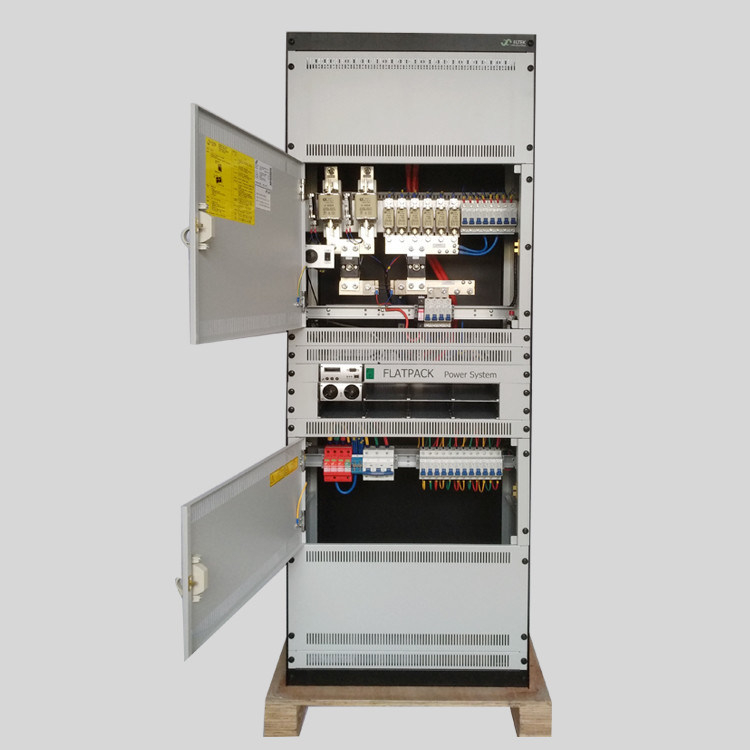

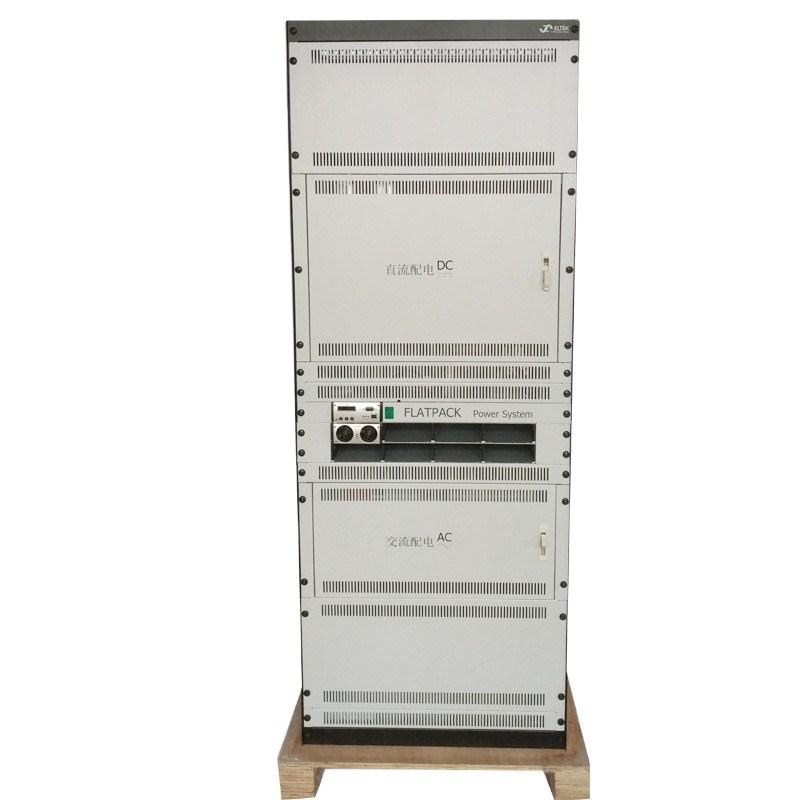

The Delta FP2 PRS3000 (Part No:CTE31232.1000) is high-capacity modular indoor telecom power cabinet built on Delta Flatpack2 FP2 platform, designed for large-scale IDC, 4G/5G macro indoor base station and core communication room power supply. It adopts 3-phase 3L+N+PE wide AC input design (170~400VAC), configurable with multiple high-efficiency FP2 rectifier modules, achieving max 36kW / 800A @48VDC total output. All rectifier units support hot plug replacement, equipped built-in intelligent monitoring unit and complete AC/DC distribution breakers. With CE/FCC/RoHS full certifications and customizable cabinet color, it is widely adopted in global telecom operators, system integrators and industrial critical power transformation projects.
Key Features
Three-phase 380V(170~400VAC wide range) 3L+N+PE AC input, 45~66Hz frequency, adapts unstable commercial grid and generator power
Nominal 53.5VDC adjustable output (42~58VDC), system peak capacity up to 36kW / Max 800A continuous DC load
Modular FP2 rectifier configuration, each unit high efficiency ≥96%, hot-swappable plug-and-play without cabinet power shutdown

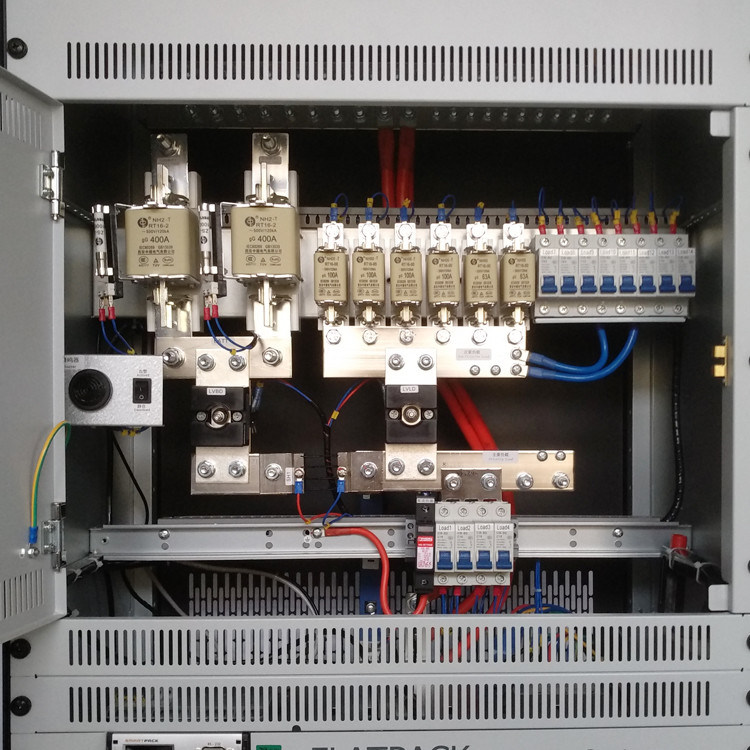

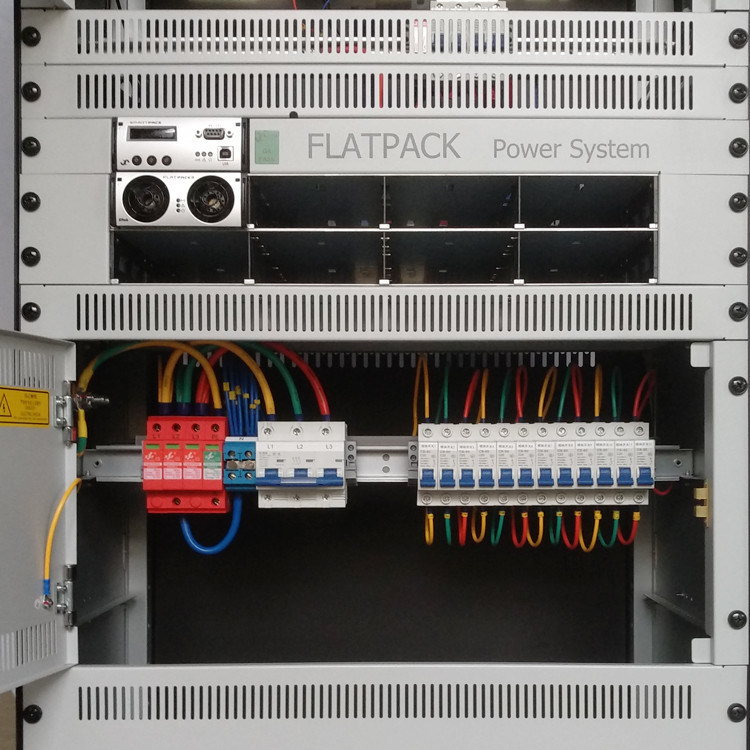

Integrated independent AC distribution + multi-channel DC load & battery distribution with individual air breakers, single output design
Built-in intelligent system monitor: real-time voltage/current/temp tracking, multi-stage LVD battery protection, remote Modbus/SNMP communication
Optimized forced air cooling structure, stable running from -25℃ ~ +55℃ ambient temperature
Full-grade safety protection: OVP/OCP/SCP/OTP + AC&DC dual-stage lightning surge protection
CE, FCC, RoHS certified, cabinet shell color customizable, flexible internal layout OEM modification
Technical Specifications
| Item | Details |

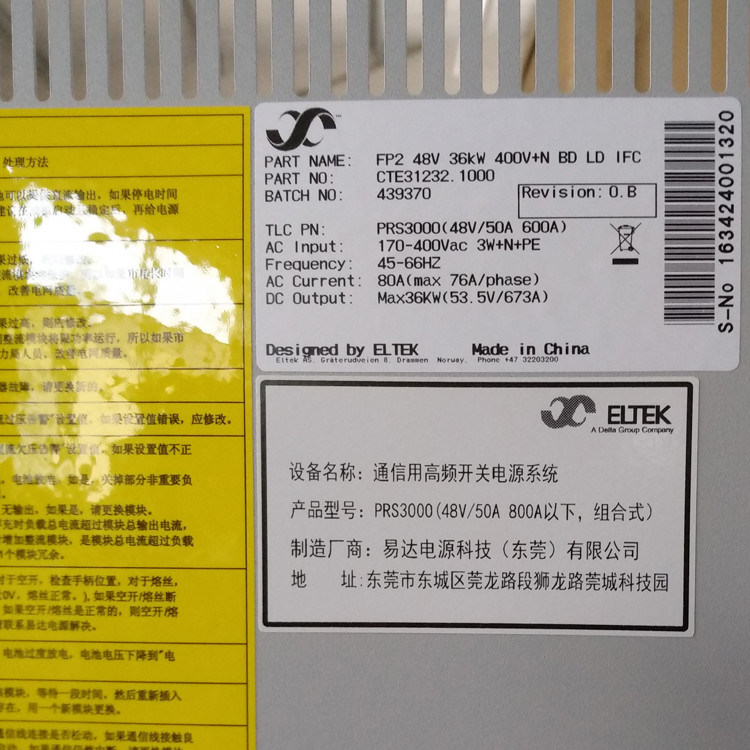

| Model | PRS3000 (FP2 CTE31232.1000) |
| Brand | Delta |
| AC Input | 3Phase 3L+N+PE, 170~400VAC,45~66Hz |
| Nominal DC | 48VDC(Adjustable 42~58VDC,Default53.5V) |
| Max Output | 36KW / 800A |
| Rectifier Type | Delta Flatpack2 FP2 modular rectifier |
| Rectifier Efficiency | ≥96% |
| Output Type | Single DC Distribution |
| Certification | CE, FCC, RoHS |
| Cabinet Color | Standard Black / Customized |
| Working Temp | -25℃ ~ +55℃ |
| Storage Temp | -40℃ ~ +75℃ |
| MOQ | 1 Set |
| Unit Price | $800~$900/Set |
| Monthly Output | 500 Sets |
| Delivery Port | Shenzhen |
| Warranty | 3 Years |
Applications
Large & Medium IDC Data Center Core DC Backup Power System
5G/4G Macro Indoor Base Station Centralized Power Cabinet
FTTX Large OLT Central Equipment Room Power Supply
Railway & Public Security Monitoring Central Power Project
Industrial Automation & Critical Equipment Uninterrupted DC Power
Old Telecom Station Capacity Expansion & Power Renovation Upgrade
