Product Overview

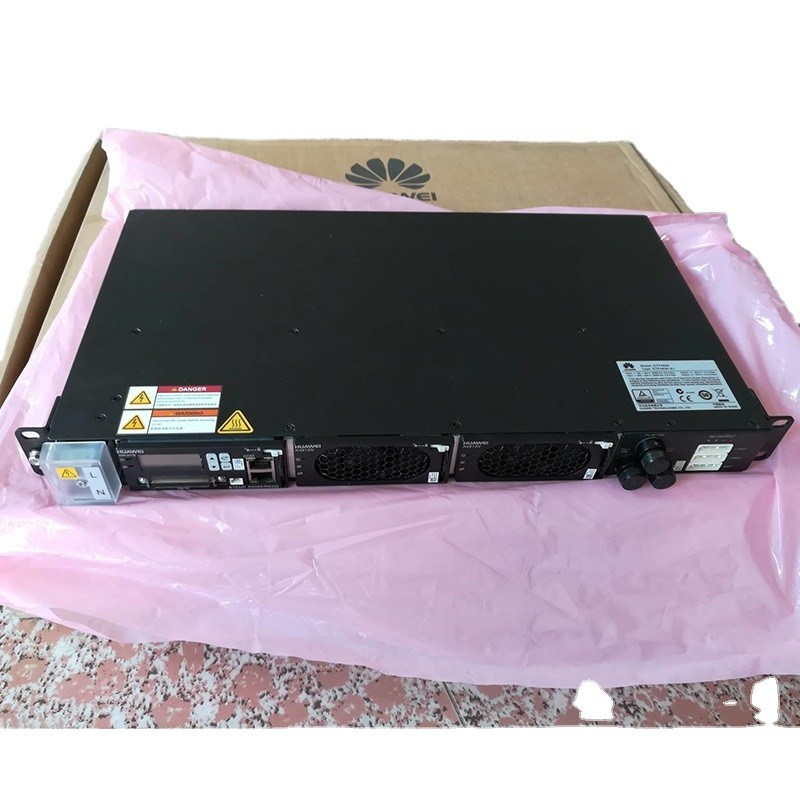

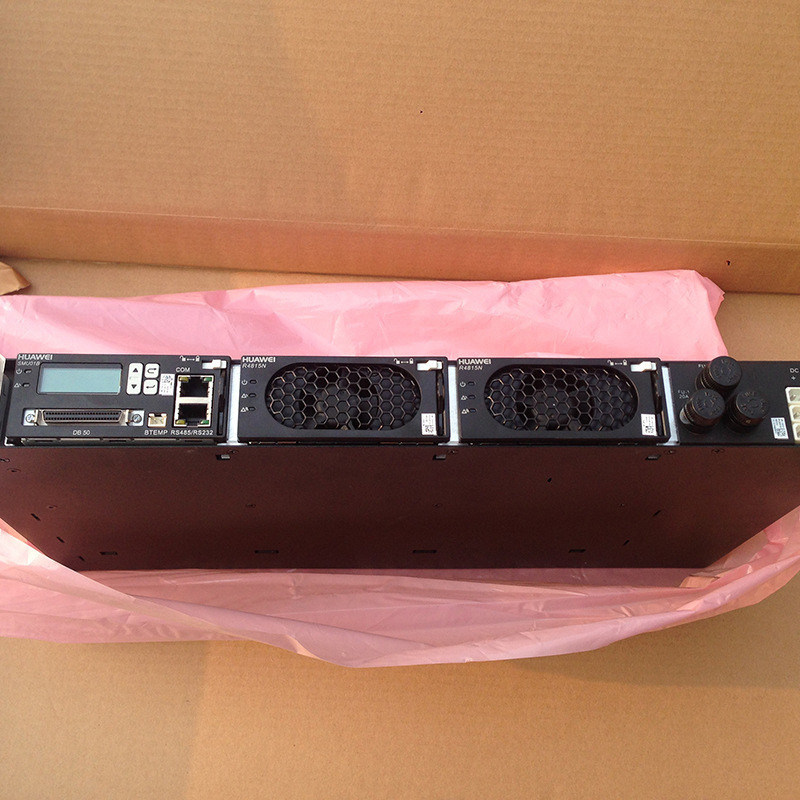

The Huawei ETP4830-A1 is compact 1U height 19-inch rack embedded DC power system specially designed for FTTH OLT, DSLAM, indoor micro base station and compact access communication equipment, widely compatible Huawei MA5680T, ZTE C300/C320 mainstream OLT devices. Configurable max two pieces of R4815G1/R4815N1 15A high-efficiency rectifier modules and one SMU01A/SMU01B/SMU01C intelligent monitoring unit, the system reaches total max 30A @48VDC rated output, adjustable DC range 42~58VDC(default 53.5VDC). Adopts natural cooling design without cooling fan, front wiring & full front maintenance layout, small footprint and high reliability, becoming standard matching power for global FTTx fiber access network projects.
Key Features
Standard 1U(43.6×442×255mm) 19-inch rack size, lightweight ≤8kg full set weight, embedded cabinet easy installation
Ultra-wide single-phase AC input:85~300VAC,45~65Hz, adapt domestic & overseas unstable mains and generator power
Nominal 53.5VDC adjustable output 42~58VDC, max total output 30A via dual 15A rectifier combination
Compatible R4815G1/R4815N1 1000W 15A rectifier, PF≥0.99, rectifier efficiency up to 96%

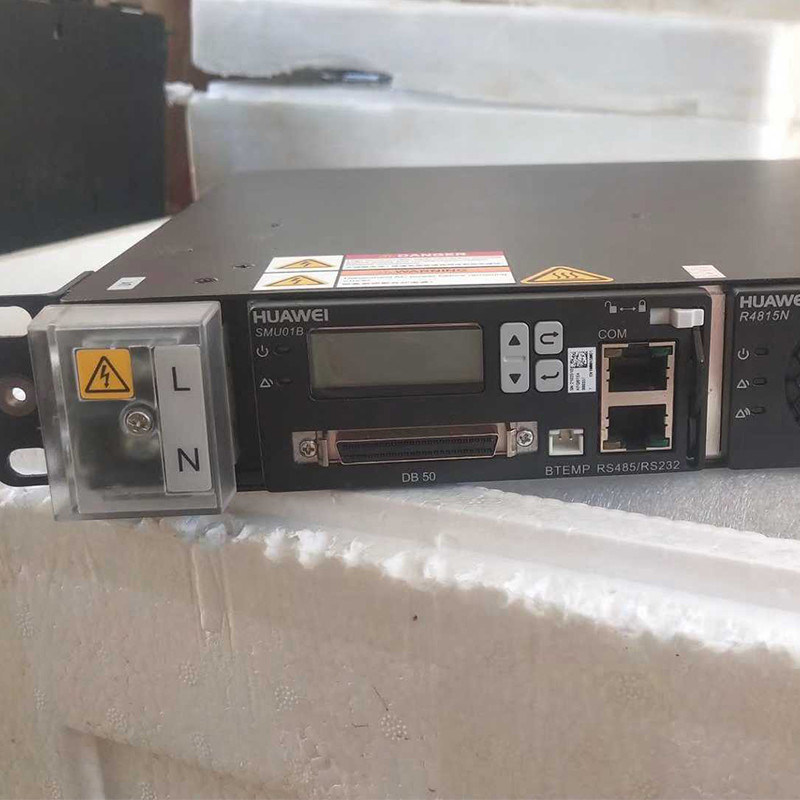

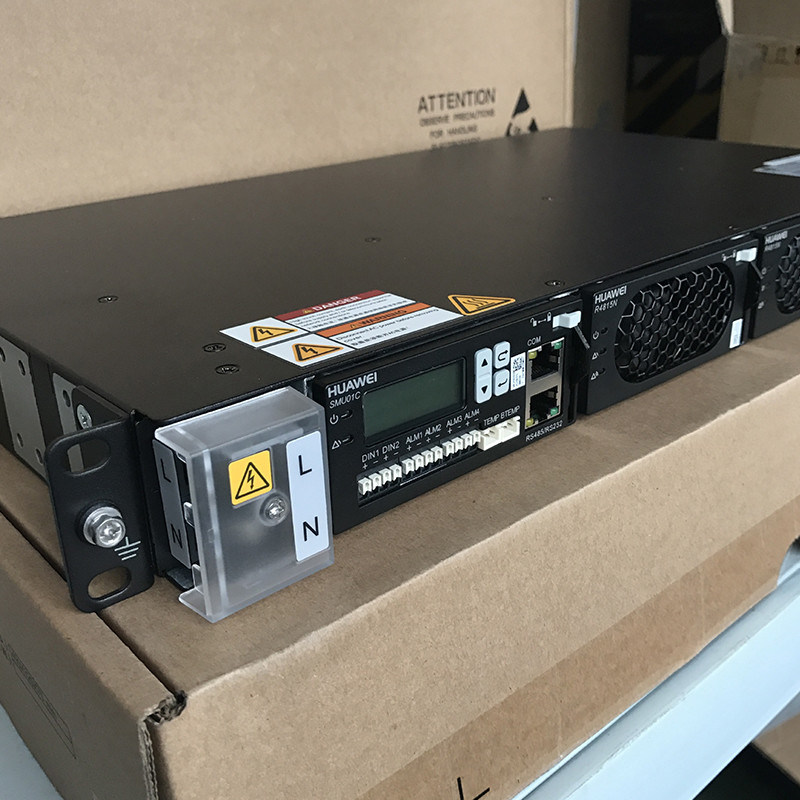

Three optional monitoring cards: SMU01A/SMU01B/SMU01C, supports RS485/SNMP/Web remote monitoring & fault alarm
Natural passive cooling structure, no built-in fan, low failure rate and long service life

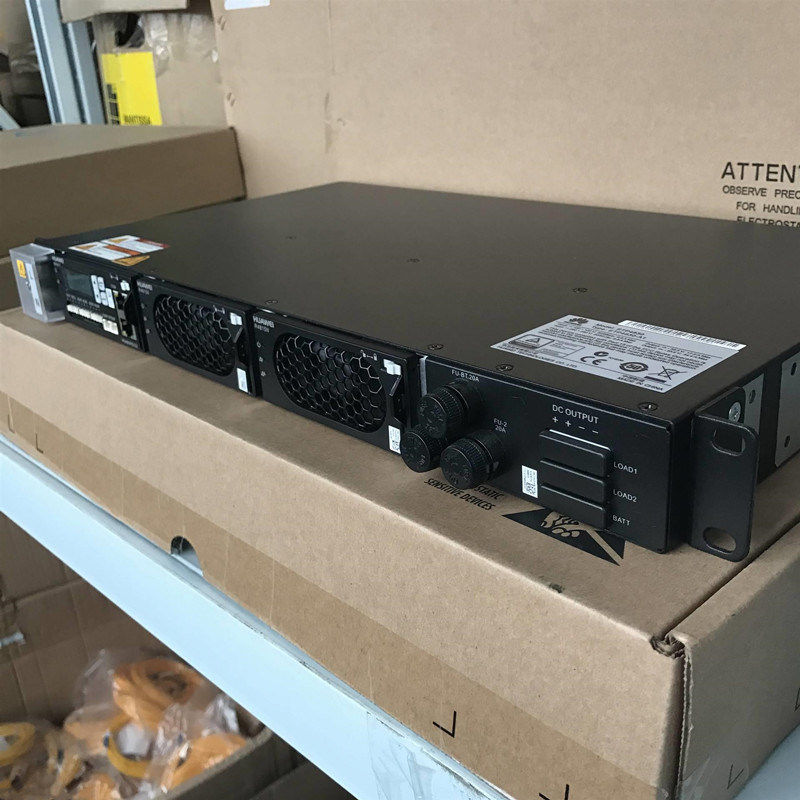

Built-in fixed DC distribution: 1×20A battery fuse + 2×20A load fuses, independent branch protection
Full OVP/OCP/SCP/OTP + AC/DC lightning surge protection, CE safety certified
Wide working temperature: -20℃~+50℃, stable operation in sealed small OLT cabinet environment
Technical Specifications
| Item | Details |
| Model | ETP4830-A1 |
| Brand | Huawei |
| System Dimension | 43.6(H)×442(W)×255(D)mm,1U 19" |
| Full Set Weight | ≤8kg |
| AC Input | 85~300VAC,45~65Hz Single Phase |
| DC Output | Adjustable 42~58VDC(Nom53.5V),Max30A |
| Matching Rectifier | R4815G1/R4815N1(15A/1000W,Max2pcs) |
| Matching Monitor | SMU01A / SMU01B / SMU01C |
| Power Factor | ≥0.99 |
| Rectifier Efficiency | ≥96% |
| DC Distribution | 20A Battery Fuse + 2×20A Load Fuse |
| Cooling Mode | Natural Convection Cooling |
| Working Temp | -20℃ ~ +50℃ |
| Certifications | CE |
| MOQ | 1 Set |
| Unit Price | $292 / Set (1~9pcs) |
| Monthly Supply | 1500 Sets |
| Packing | Carton / Wooden Frame |
| Delivery Port | Shenzhen |
| Warranty | 12 Months |
Applications
FTTH OLT Equipment Power (Huawei MA5680T,ZTE C30/C320)
Indoor 4G/5G Micro Small Cell Base Station DC Backup Power
DSLAM Fiber Access Network Cabinet Built-in Power Supply
Pole-mounted Mini Outdoor Communication Cabinet Power
Security Monitoring & Small Industrial Control DC Power System
Old FTTx Access Cabinet Power Renovation Upgrade
