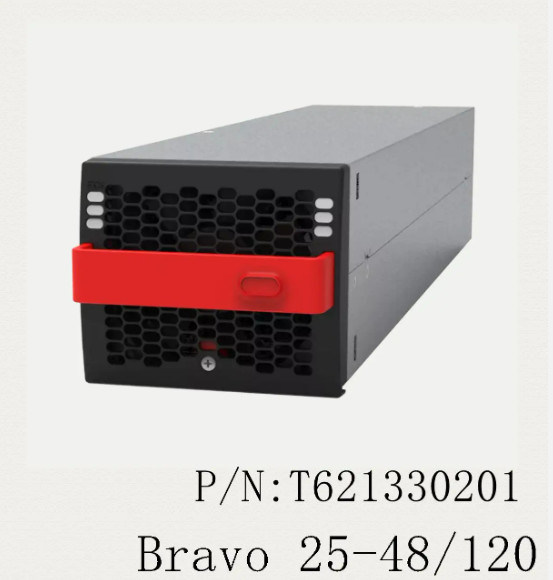

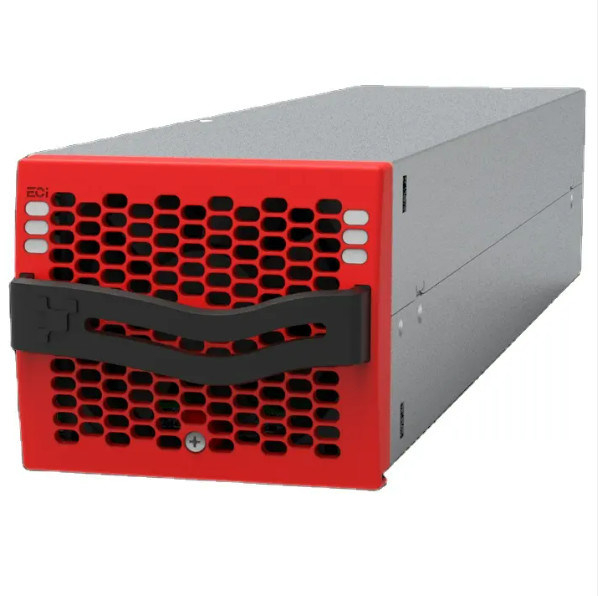

Product Overview
The CE+T Bravo25 T621330201 is premium dual-input modular pure sine inverter designed for North American standard 120Vac power applications, converting 48VDC battery into stable 120V alternating current with rated 2.75kVA/2.25kW output. Equipped with independent auxiliary AC input to lift overall conversion efficiency, it automatically shifts from mains to battery power instantly during grid blackout without load interruption. Multiple units can be paralleled flexibly to build single-phase, two-phase(2×120V+N) or three-phase(3×208V+N) power system, scalable from standalone 2.75kVA up to max 88kVA large uninterrupted power station. Low ripple output avoids battery and DC equipment disturbance, widely deployed in telecom, data center, transit, industrial and renewable energy backup projects.
Key Features
Standard 2U 19-inch rack compact dimension for embedded cabinet installation, forced air cooling design
Dual-source input design: Nominal 48VDC(40~60VDC working range)+120Vac auxiliary AC(90~140Vac), AC→AC efficiency up to 95%, DC→AC up to 93%
Zero transfer time between grid and battery power to guarantee continuous critical load supply
Ultra-low ripple pure sine output, effectively prevent damage to battery bank and sensitive DC loads
Hot-swappable plug-and-play module design, single unit replacement without whole system shutdown, cut maintenance cost
Flexible system combination: Single/2-phase/3-phase configurable, total capacity expandable up to 88kVA
15s 150% short-time overload & 110% continuous overload capability under rated ambient temp
Wide operating range: -20℃~+65℃, derating above 40℃; CE & RoHS compliant per international standards
Technical Specifications
| Item | Details |
| Model | Bravo25 |
| Part Number | T621330201 |
| Nominal DC Input | 48VDC (Working:40~60VDC) |
| Nominal AC In/Out | 120Vac (Working:90~140Vac,50/60Hz) |
| Rated Capacity | 2.75kVA / 2.25kW |
| AC→AC Efficiency | Up to 95% |
| DC→AC Efficiency | Up to 93% |
| Output Wave | Pure Sine Wave, Ultra-low Ripple |
| Overload Rating | 150% for 15s; 110% continuous |
| Expandability | Single/2P/3P optional, Max total 88kVA |
| Cabinet Size | Standard 2U 19 Inch Rack |
| Working Temp | -20℃ ~ +65℃ (Derate >40℃) |
| Storage Temp | -40℃ ~ +70℃ |
| Certifications | CE, RoHS |
| MOQ | 5 PCS |
| Unit Price | $705-$985/pc |
| Delivery Time | 30 Working Days |
| Warranty | 12 Months |
Applications
North America 4G/5G Telecom Base Station AC Backup UPS
Small & Medium Edge Data Center Critical Load Power Supply
Railway & Mass Transit On-board Uninterrupted Power
Factory Industrial Automation & Precision Instrument Emergency Power
Utility Station & Off-grid Solar/Wind Renewable Energy Storage
Banking & Security Monitoring Centralized UPS Equipment
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on-time delivery even for bulk orders and long-term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full-load operation test, high-low temperature aging test, safety performance test and simulated on-site operation test before delivery. We adopt high-quality original components and implement strict quality control standards to guarantee long-term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre-sales consultation, in-sales technical guidance and after-sales maintenance. Our technical team responds quickly to provide remote debugging, on-site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich global project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
