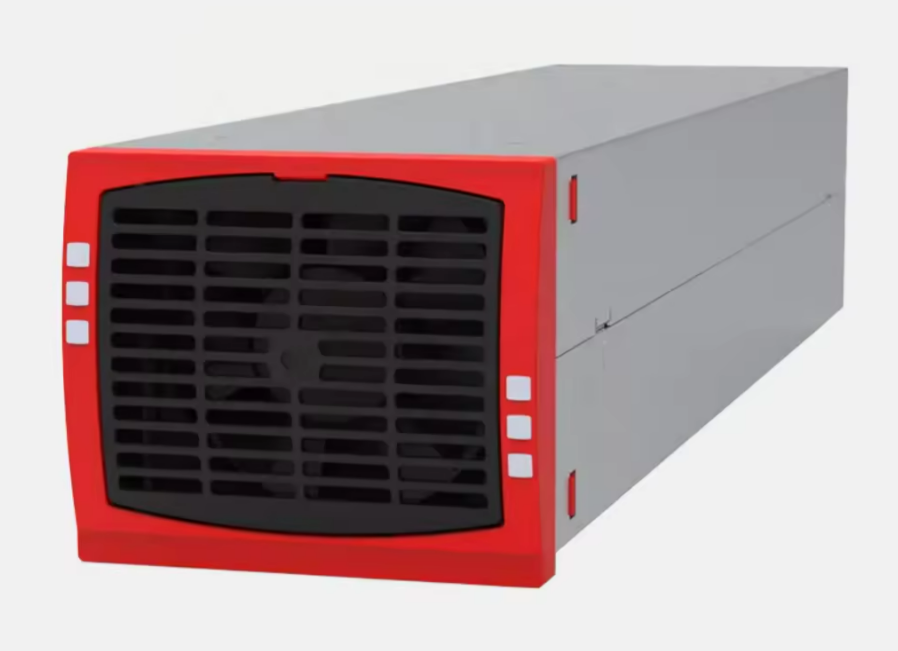

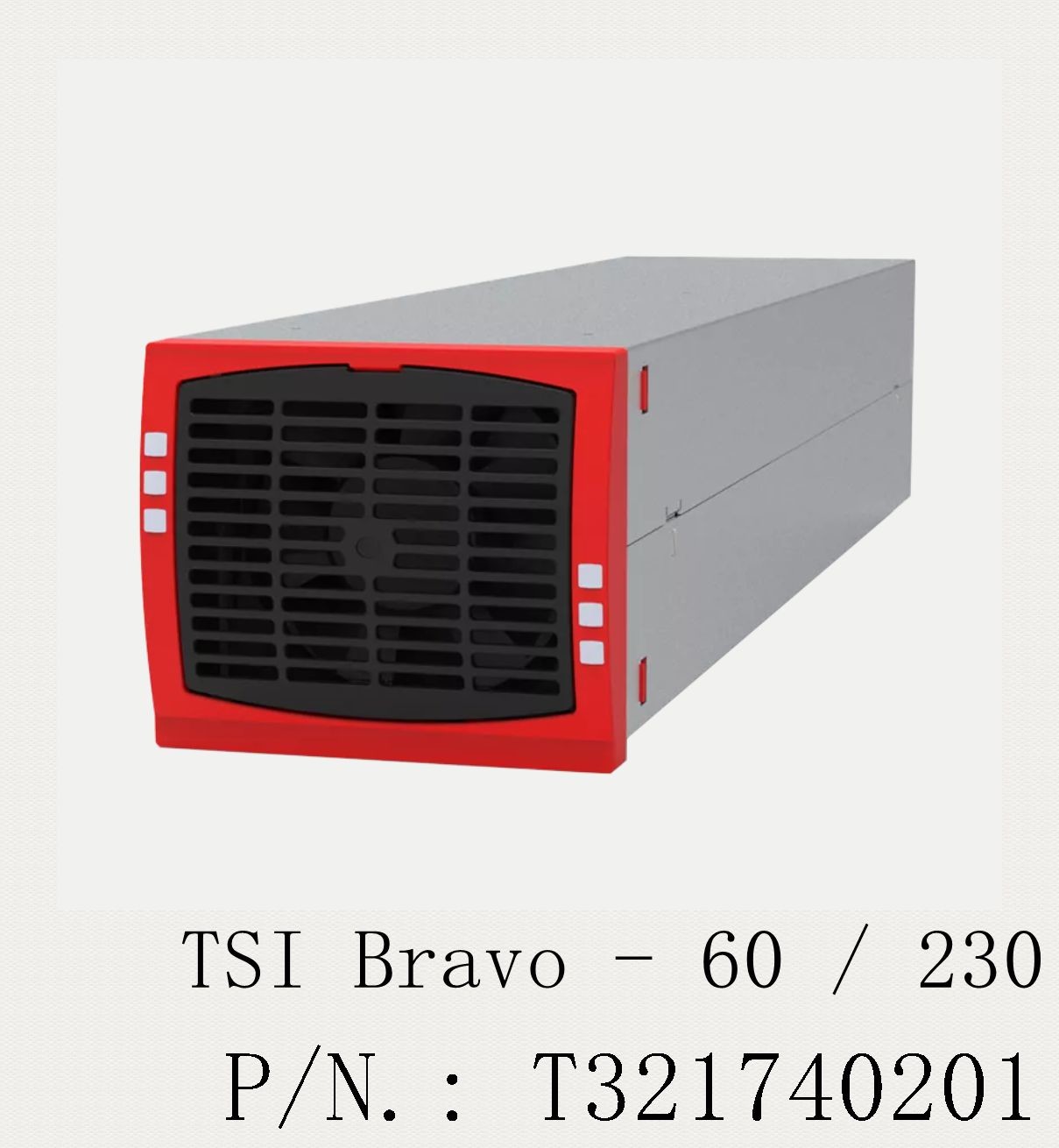

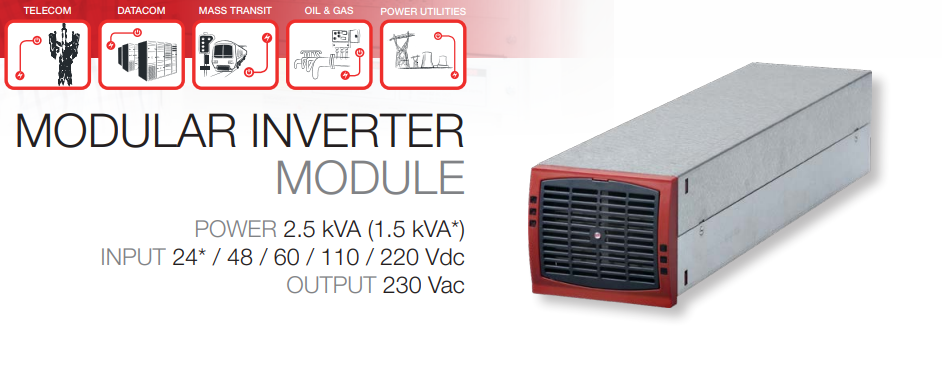

The CE+T Bravo 0 T321740201 (Bravo10) is professional compact modular DC/AC inverter developed by CE+T Power, converting 48VDC battery power into stable 230VAC single-phase alternating current with rated capacity 1.25kVA/1kWCE+T Power. Featured dual AC+DC dual-input design, the unit runs on mains AC for high-efficiency operation under normal grid status and automatically switches to 48V battery DC power within zero interruption once grid fails, perfectly securing critical loads like telecom equipment, industrial control and server devices against power outage. Multiple modules can be combined to build single-phase or three-phase (3×400V+N) large inverter system up to 40kVA total capacity, widely adopted in telecom rooms, edge data centers and industrial backup projects.
Key Features
Standard 1U compact chassis design, 87×346mm dimension for 19-inch rack embedded installationCE+T Power
Dual input design: Nominal 48VDC(40~60VDC range) + 230VAC mains input(150~265VAC)CE+T Power
Rated output: 1.25kVA /1kW @230VAC, adjustable 220~240V AC output voltage
Ultra-high conversion efficiency: AC→AC up to 96%, DC→AC up to 92.5% to cut long-term energy costCE+T Power
Zero-break automatic transfer between grid and battery DC when mains power drops out
Hot-swappable modular structure, single unit 1.25kVA incremental expansion, easy capacity upgrade
Configurable single/three-phase system: ≥3 modules combine into 3P 400V+N three-phase power solutionCE+T Power
Intelligent monitoring system: Inview touchscreen/LED indicator, RS485 + dry contact remote alarm & communication
Low THD＜3% sine wave output, high PF＞0.99 to protect precision electrical loads
Wide operating temperature: -20℃ ~ +65℃, stable running for indoor & mild outdoor cabinetCE+T Power
CE, UL certified, full OVP/OCP/SCP/OTP multi-layer circuit protection

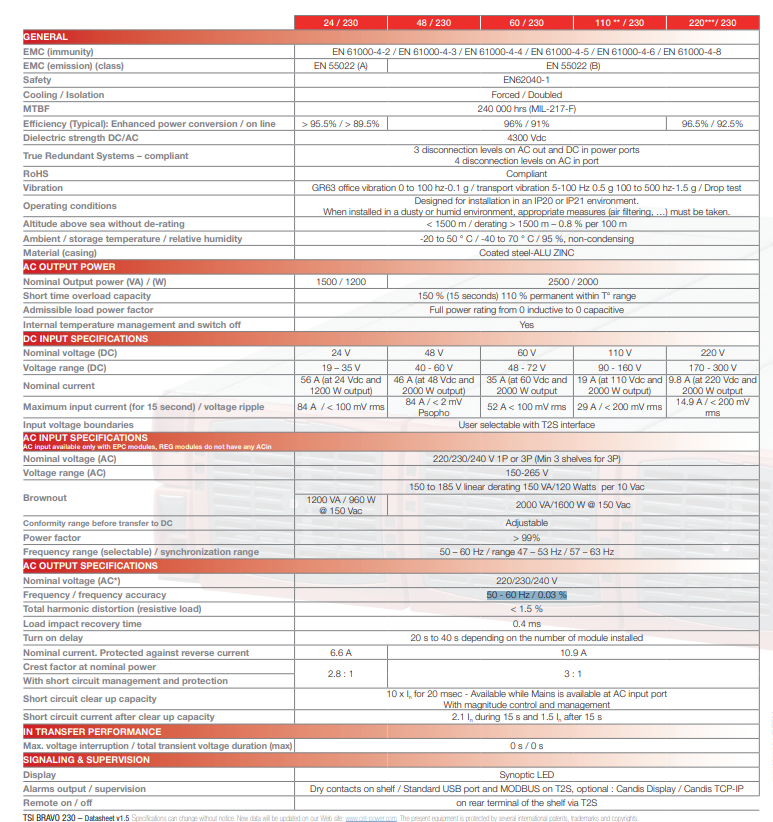

Technical Specifications
| Item | Details |
| Model | Bravo10 T321740201 |
| Brand | CE+T Power |
| DC Input | 40~60VDC, Nominal 48VDC |
| Aux AC Input | 150~265VAC, Nominal 230VAC 50/60Hz |
| AC Output | 220~240VAC adjustable, Nominal 230VAC |
| Rated Capacity | 1.25kVA / 1kW |
| AC/AC Efficiency | Max 96% |
| DC/AC Efficiency | Max 92.5% |
| Output Waveform | Pure Sine Wave, THD＜3% |
| PF | ≥0.99 |
| Size | 1U:87mm × 346mm |
| Mount | 19-inch standard rack |
| Communication | RS485, Dry contact alarm |
| Working Temp | -20℃ ~ +65℃ |
| Certifications | CE, UL |
| MOQ | 5pcs |
| Unit Price | $705~$985/pc |
| Warranty | 12 Months |
Applications
Telecom equipment room & 4G/5G base station backup power supply
Edge computing server & small IDC critical load UPS backup
Industrial automation, PLC & precision instrument emergency power
Medical equipment, bank terminal uninterrupted power system
Solar off-grid hybrid AC output power system
Railway & security monitoring backup power projects
Why Choose Us
We are a professional manufacturer and one‑stop solution provider for communication DC power systems, boasting mature R&D strength, large‑scale production capacity and flexible service modes. We fully support OEM and OBM cooperation, helping global partners create differentiated power products and brands.
-
Powerful R&D & Customization Ability
We have a professional technical team with years of experience in the power industry. We can provide personalized customized services covering power configuration, external interfaces, functional parameters, appearance design and logo printing, to satisfy diverse demands from telecom operators, system integrators and equipment manufacturers.
-
Comprehensive OEM & OBM Services
We offer full‑cycle cooperation support from product design, prototype testing, certification to mass production. With efficient development process and strict quality management, we help you quickly launch products and build exclusive brand advantages.
-
Large Production Capacity & On-time Delivery
We own standardized production workshops and complete production lines. Relying on a stable supply chain and mature production technology, we maintain sufficient inventory and strong production capacity, ensuring on‑time delivery even for bulk orders and long‑term cooperative supply.
-
Strict Multi-level Quality Inspection
All products will pass full‑load operation test, high‑low temperature aging test, safety performance test and simulated on‑site operation test before delivery. We adopt high‑quality original components and implement strict quality control standards to guarantee long‑term stable operation of products in various harsh environments.
-
Full Lifecycle Technical & After-sales Support
We establish a complete service system including pre‑sales consultation, in‑sales technical guidance and after‑sales maintenance. Our technical team responds quickly to provide remote debugging, on‑site technical guidance and spare parts supply, protecting the stable operation of your power system all the time.
-
Rich Global Project Experience
Our products have been exported to many countries and regions, widely applied in communication, data center, industrial control, new energy and other fields. With rich project experience, we can provide targeted power solutions for different regional standards and application scenarios.
We sincerely look forward to establishing long‑term stable cooperative partnership with you.
